Na2xcy 25kv Conductor Al Subt-Mt Tr-XLPE 120 mm2 Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：NA2XS2Y(F)
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, SGS
  • Model：Tr-XLPE Aluminum Cable
  • Brand：Hongda
  • Insulation Level：100% Insulation Level
  • Transport Package：1000m Per Drum
  • Specification：120mm2 to 630mm2
  • Trademark：Hongda
  • Origin：China
  • HS Code：8544601200
  • Production Capacity：300km,Month

Description

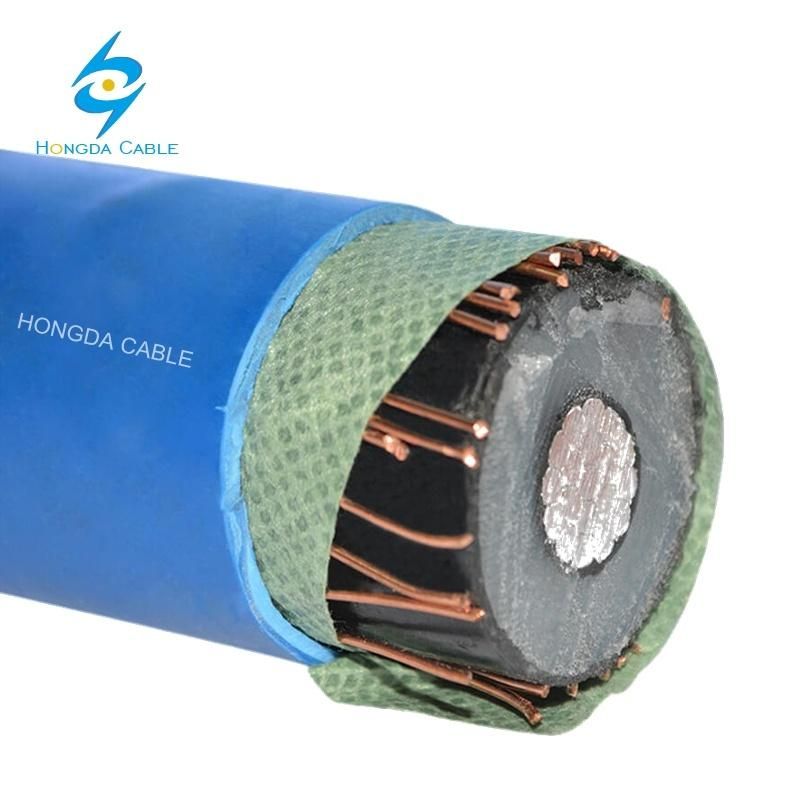

1. Conductor:1350 hard aluminum compact class B, blocked at the longitudinal passage of water by means of blocking wires.2. Semiconductor display on the conductor:Thermoset extruded semiconductor compound.3. Insulation:XLPE-TR (Tree retardant).4. Semiconductor screen over insulation:Thermoset extruded semiconductor compound, with adequate adhesion to the insulation, which makes it easier to remove the screen.5. Semiconductor W / B Tape:Applied helically under the electrostatic shield, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).6. Metal shield:Bare copper wires smoothly applied helically. The total section assigned for each gauge meets the above in the standard NRF-024-CFE.7. Nonconductive W / B Strap:Applied helically on the electrostatic screen, avoiding transverse penetration of moisture (They only correspond to the wet wires in case as required).8. Exterior cover:PVC cover red color or high density polyethylene (HDPE) extruded with three red stripes, with excellent properties mechanical and chemical.
Applications
These cables are for use in environments mainly moist and are used preferably in distribution networks of urban energy. They are suitable for installed directly buried, in trenches, in ducts, ladders or electric pipes.

NA2XCY 25kV Conductor Al Subt-MT Tr-XLPE 120 mm2 cable
 SectionStrandsTensionUnits per rollPackaging120mm219H25kV1000mReel240mm237H25kV1000mReel400mm261H25kV500mReel630mm261H25kV500mReelNa2xcy 25kv Conductor Al Subt-Mt Tr-XLPE 120 mm2 Cable

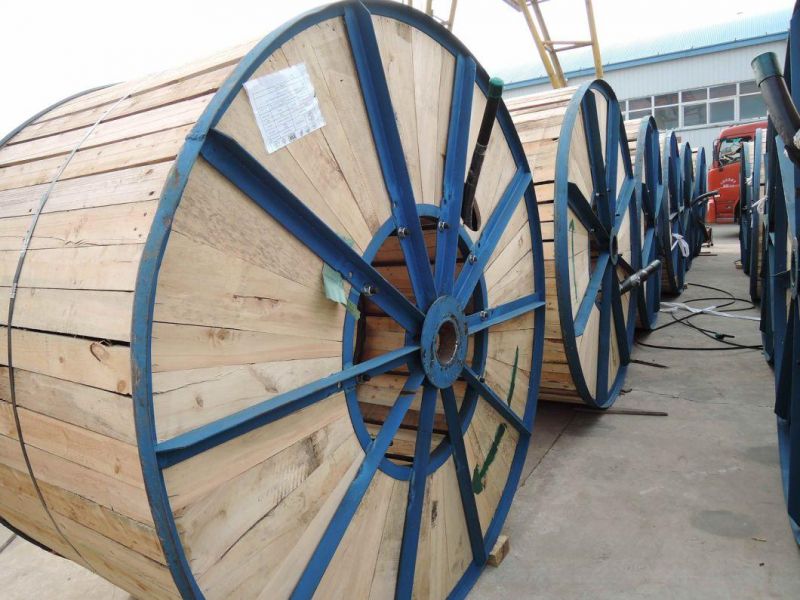

Packaging
On non-returnable wooden spools of 1000m.
Tolerance in the length of ± 5%. (It can deliver in different tranches)

Na2xcy 25kv Conductor Al Subt-Mt Tr-XLPE 120 mm2 Cable
