• Model NO.：Outdoor optical fiber cable
• Core：Double Core
• Certification：RoHS, UL, CE, ISO9001, CCC
• Brand：Superlink ,OEM
• Sheath Material：PE
• Fiber：Multicore
• Central Strength Member：Steel Wire
• Sheath：PE

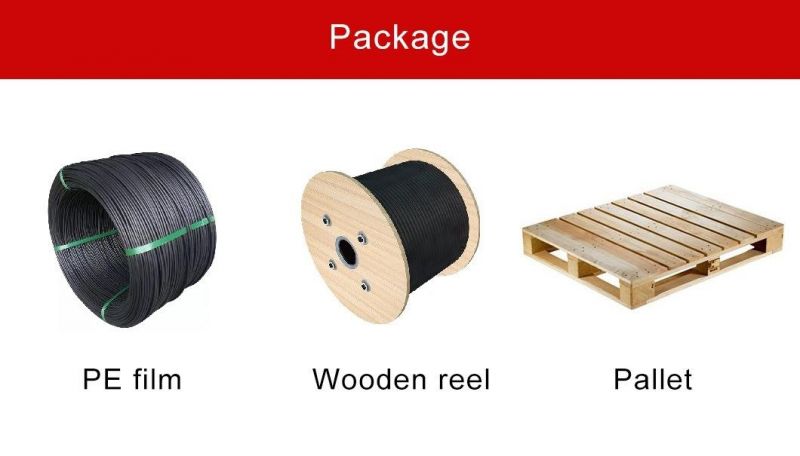

• Transport Package：PE Film , Wooden Drum , Pallet
• Specification：Fiber+loose tube+central strength+APL+PE+PSP+PE
• Trademark：SUPERLINK , OEM
• Origin：Zhejiang, China
• HS Code：85447000
• Production Capacity：80000km,Month

Our service
1. All kinds of cable products & one-stop experience.
2. Quality & competitive price.
3. Order process will be shared via photo and video.
4. On-time delivery & After-sales problems solved before sales.
5. 24/7 hours response.
 All start here

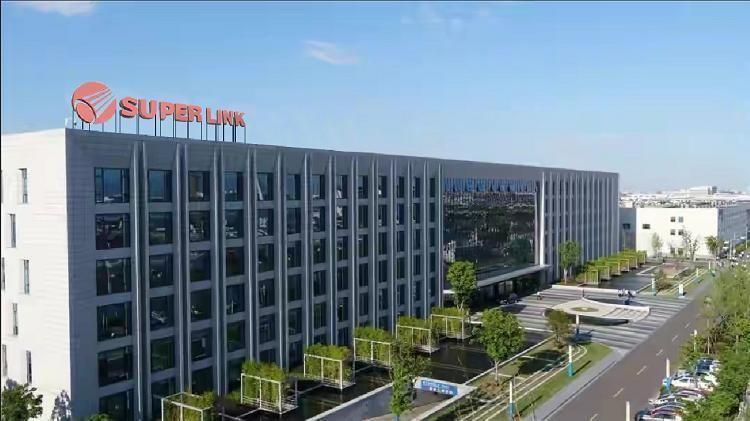

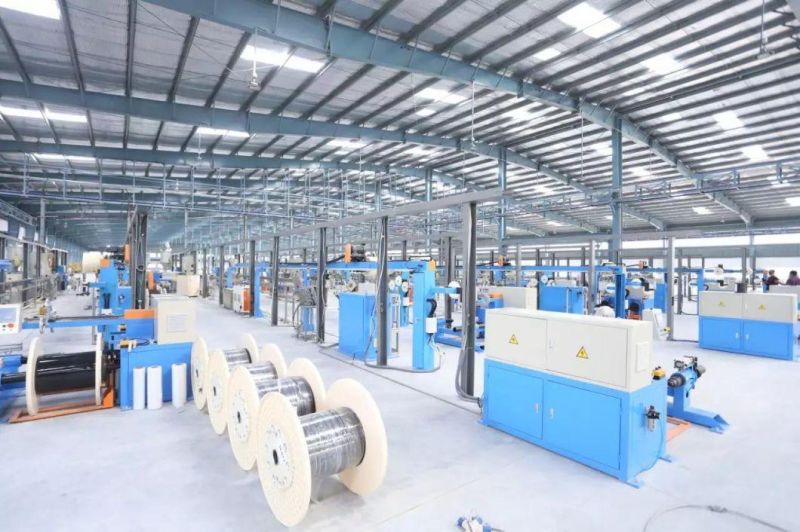

We have three factories located in Hangzhou, Shenzhen and Vietnam. The total production base exceeds 300,000 square meters. We plan to set up offices in all coastal port cities in China to achieve fast delivery.Connect the world
1. Hangzhou factory: "Quality first" pass tests.
2. Shenzhen factory: "Price first"
3. Vietnam factory: Export to EU, America, no tariffs, anti-dumping.Our capability
1. 17 years of production experience, quality first, customer first, service first.
2. Swiss moulds with high precision are selected for production equipment.
3. Complete supply chain. We have our own raw material factory, from materials to finished products, offer more competitive pricing with good quality for customer.
 ProductKm/yearProductTon/yearNetwork cable500 000KmCu wire1000TCoaxial cable380 000KmCCA wire100TSpeaker cable / alarm cable200 000KmCCS wire500TTelephone cable150 000KmAL-MG wire300TPower cable210 000KmAL foil120TPatch cord110 000PcsPE compound1000TSolar cable50 000KmPVC compound2500TOptical cable1000000KM

Product Description/ PRODUCT

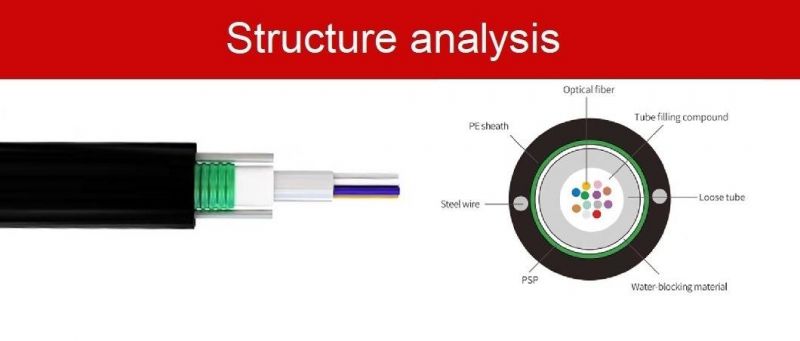

The fibers,200/250um, are positioned in a loose tube made of a high modulus plastic.The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE)sheath.

Product Features/ PRODUCT

·Good mechanical and temperature performance
·High strength loose tube that is hydrolysis resistant
·Special tube filling compound ensure a critical protection of fiber
·Crush resistance and flexibility
·PSP enhancing moisture-proof
·Two parallel steel wires ensure tensile strength
·PE sheath gives excellent UV protection
·Small diameter, light weight and friendly installation
·Long delivery length

Product standard/ PRODUCT

GYXTW cable complies with Standard YD/T 769-2010

Technical Parameters/ PRODUCT

Cable Type	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength  Long/Short Term  N	Crush Resistance  Long/Short Term N/100m	Bending Radius  Static/Dynamic mm
GYXTW-2~12	2~12	9.0	85	600/1000	500/1500	15D/30D
GYXTW-14~24	14~24	9.0	85	600/3000	1000/3000	15D/30D
GYXTW-2~12	2~12	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-14~24	14~24	10.0	105	1000/3000	1000/3000	15D/30D
GYXTW-26~36	26~36	14.0	190	1000/3000	1000/3000	15D/30D
GYXTW-38~48	38~48	15.0	216	1000/3000	1000/3000	15D/30D

Storage/Operating Temperature : -40ºC to + 70ºC



1. What's your company MOQ?
- Our MOQ is 30km. But MOQ of stocks are 1 pcs.

2. Can you do our design?
- Of course, your customized design (OEM) is available.

3. What's the lead-time for order delivery?
- Within 10~30days.

4. Can you send a sample for us?
- Yes, we can provide free samples.

5. What is your packaging?
- Our packaging includes PE film, shrink bag, pull box, paper reel, plastic reel, wooden reel. Depends on what you want!

6. Delivery time and transportation method?
- Shipment can be arranged immediately. By express, by sea, by air, you can ship whatever you want.

7.Payment method?
- T/T, L/C, we also accept most other convenient methods of payment.
