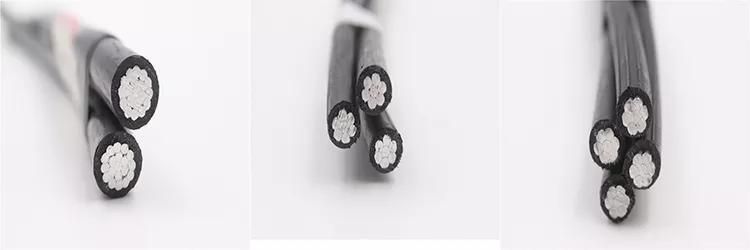

LV Areal Cable Chow / Duplex Service Drop 2AWG with ACSR
Henan Hongda Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead
- Conductor Material：Aluminum
- Sheath Material：Without
- Insulation Material：PE,XLPE
Base Info
- Model NO.：service drop 2AWG
- Material Shape：Round Wire
- Range of Application：Overhead Cable
- Certification：ISO9001, CE, CCC
- Brand：Hongda
- Color：Black, Red
- Warranty：One Year
- Messager：ACSR
- Transport Package：Wooden Drum or Steel & Wooden Drum
- Specification：2 cores or 3, 4 cores
- Trademark：HONGDA
- Origin：China
- HS Code：8544492100
- Production Capacity：5000km,Month
Description
Code word
AWG or kcmil
Bare neutral messenger
Phase conductor
Weight kg/km
ACSR stranding and wires dia. (mm)
Rated strength (lbs)
AAC
Insulation thickness (mm)
Stranding and wires dia. (mm)
Setter
1*6AWG+1*6AWG
1/1.68+6/1.68
1190
1/4.11
1.14
111
Shepherd
1*6AWG+1*6AWG
1/1.68+6/1.68
1190
7/1.56
1.14
113
Eskimo
1*4AWG+1*4AWG
1/2.12+6/2.12
1860
1/5.19
1.14
171
Terrier
1*4AWG+1*4AWG
1/2.12+6/2.12
1860
7/1.96
1.14
173
Chow
1*2AWG+1*2AWG
1/2.67+6/2.67
2850
7/2.47
1.14
266
Bull
1*1/0AWG+1*1/0AWG
1/3.37+6/3.37
4380
19/1.89
1.52
427
Code word
AWG or kcmil
Bare neutral messenger
Phase conductor
Weight kg/km
AAAC stranding and wires dia. (mm)
Rated strength (lbs)
AAC
Insulation thickness (mm)
Stranding and wires dia. (mm)
Mines
2*6AWG+1*30.58
7/1.68
1110
1/4.11
1.14
152
Prawn
2*4AWG+1*48.69
7/2.12
1760
1/5.19
1.14
229
Shrimp
2*2AWG+1*77.47
7/2.67
2800
7/2.47
1.14
354
Gammarus
2*1/0AWG+1*123.3
7/3.37
4460
7/3.12
1.52
569
Dungenese
2*2/0AWG+1*155.4
7/3.78
5390
7/3.5
1.52
702
Flustra
2*3/0AWG+195.7
7/4.25
6790
19/2.39
1.52
869

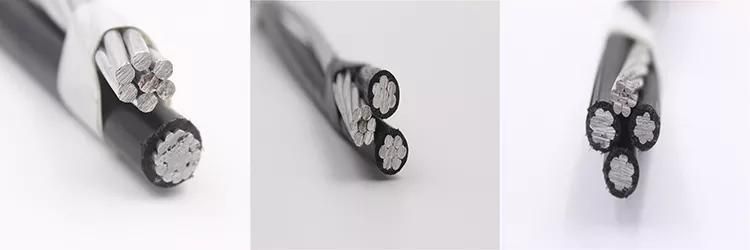

C. Quadruplex Service Drop ,if you need technical data sheet ,email to Anna .
For ABC cable, you can send your specifications to us, we can also produce the cables according to customers' requireemens.
Packaging & ShippingOur Services1. Q: Are you the manufacturer or the trading company?
A: We are the manufacturer & trading company.A: It is general within 15 days after your prepayment, according to the quantity.
A: 30% T / T in advance, then 70% T / T or L / C balance before shipment.
A: Technical team provide professional service, Own laboratory, All type test, Free sample
A: The MOQ of different products is different. Usually 3000 meters.
A: CNAS, CCC, ISO,CE
A: IEC, ASTM, BS, DIN, CSA or as customers' requirement.
A: Wooden drum. Design the different package types as the customer's requirements.
HENAN HONGDA CABLE CO.,LTD was founded in 2004, which is located in Zhengzhou city ,Henan Province,China;
1. The main products of our company
Concentric Cable
Bare Conductor(AAC, ACSR, AAAC)
ASTM ABC Cable(Duplex, Triplex, Quadruplex)
NFC 33-209 ABC Cable
PVC Insulated House Wire(BV, THHN)
2. The advantages of our company
Own factory with factory direct price
Free sample
OEM /ODM
Technical team provide professional service
Own laboratory
All type test
Speed delivery
Accept small orders
(Remark: This is just the normal construction. HONGDA CABLE can also design and produce the cables according to your special requirement.)

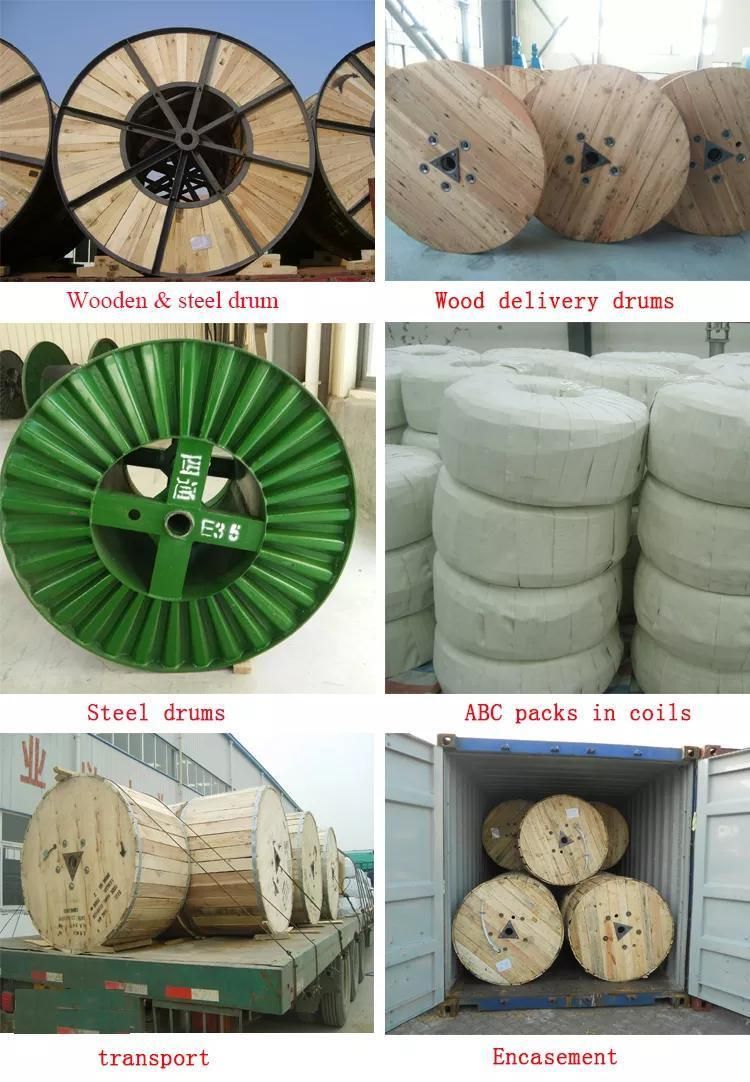

PACKAGE
Standard export wooden drum or steel & wooden drum packing.
Contact us : wehcat : anna330929176 Facebook : Anna cable
