Single Core Aluminum Cable Power Cable
Luoyang Asian Sun Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：DC & AC
- Insulation Material：PVC
- Sheath Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：Power cable
- Wire Core Material：Aluminum
- Certification：ISO, CCC, CE, UL
- Model：Power Cable
- Brand：Asian Sun
- Transport Package：Wooden Drum,Wooden Steel Drum,Rolls
- Specification：as the costumer request
- Trademark：Asian Sun
- Origin：Henan, China
- HS Code：8544601300
- Production Capacity：50000meters Per Day
Description
Application
Single core aluminum cable is suitable for AC 50Hz power and distribution lines with rated voltage of 0.6/1kV,also can be used in fixed industrial power applications, underground tunnels, etc.
Executive standard
IEC 60228 Conductors
Working temperature: the maximum working temperature no more than 90ºC,
Laying temperature: not lower than -20ºC

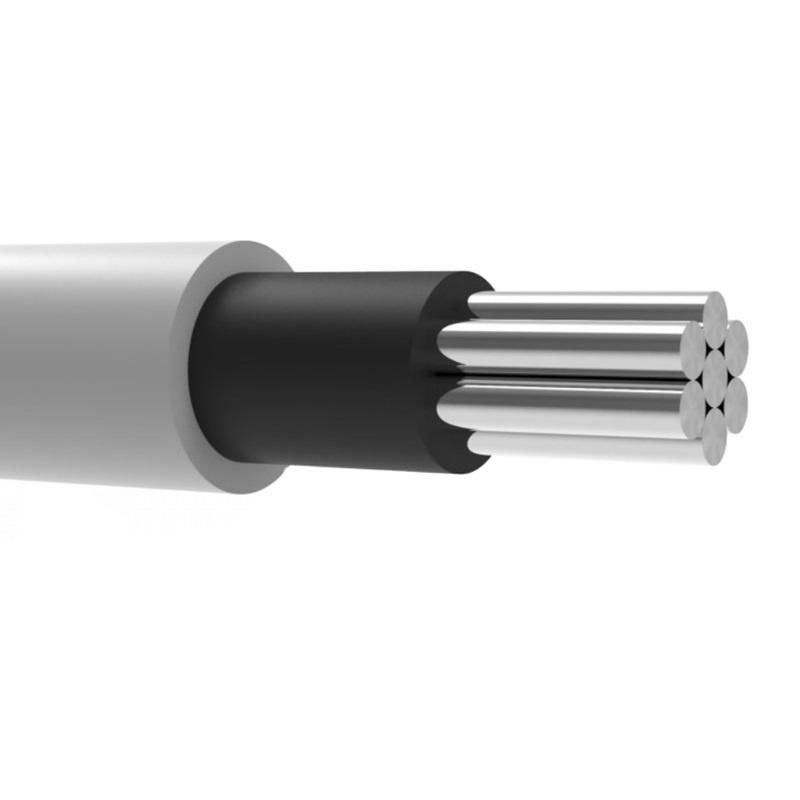

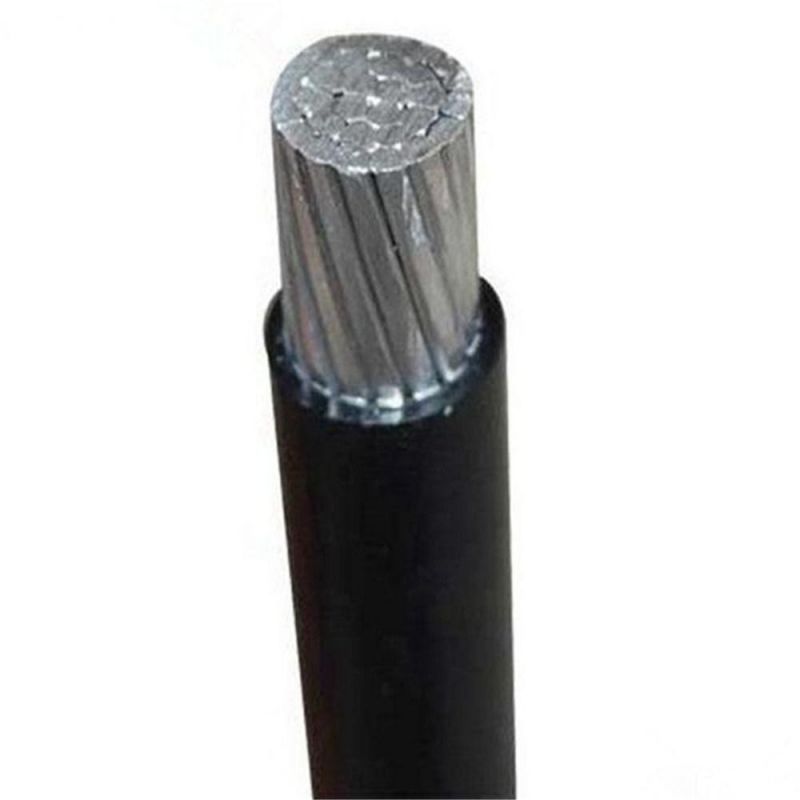

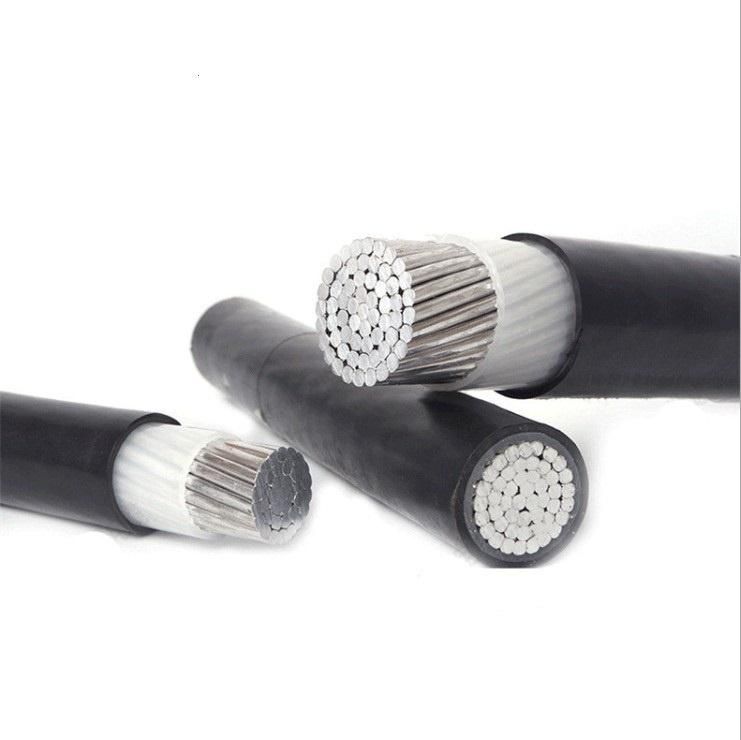

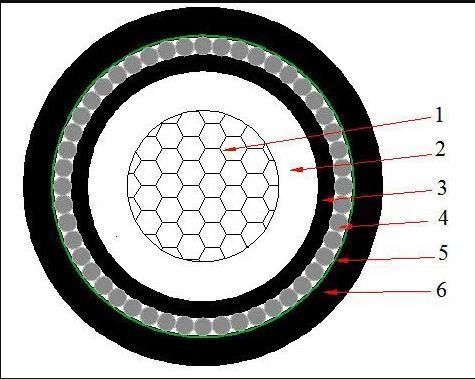

Construction of Single Core Aluminum Cable
1. Conductor: aluminum, Class 1: solid conductor, or Class 2: stranded conductor
2. Insulation: PVC
3. Inner sheath: PVC
4. Armour: non-magnetic steel wire
5. Binder tape: Non-hygroscopic material
6. Outer sheath: PVC
Single core aluminum power cable Technical data
0.6/1kV-single core aluminum conductor PVC insulated steel tape armored PVC sheathed power cable | ||||||||
Nominal cross sectional area | Insulation thickness | Non-magnetic steel tape thickness | Sheath thickness | Approximate outer diameter | Approx. | Max.D.C resistance of conductor(20ºC) | Current carrying capacity | |
mm2 | mm | mm | mm | mm | kg/km | /km | In Air(A) | In Ground(A) |
1X10 | 1.0 | 0.2 | 1.8 | 12.4 | 228 | 3.08 | 38 | 54 |
1X16 | 1.0 | 0.2 | 1.8 | 13.5 | 271 | 1.91 | 51 | 71 |
1X25 | 1.2 | 0.2 | 1.8 | 15.2 | 339 | 1.2 | 66 | 92 |
1X35 | 1.2 | 0.2 | 1.8 | 15.8 | 383 | 0.868 | 81 | 110 |
1X50 | 1.4 | 0.2 | 1.8 | 17.5 | 466 | 0.641 | 98 | 130 |
1X70 | 1.4 | 0.2 | 1.8 | 19.1 | 563 | 0.443 | 120 | 160 |
1X95 | 1.6 | 0.2 | 1.8 | 21.1 | 694 | 0.32 | 150 | 195 |
1X120 | 1.6 | 0.2 | 1.8 | 22.5 | 800 | 0.253 | 180 | 225 |
1X150 | 1.8 | 0.2 | 1.8 | 24.5 | 949 | 0.206 | 205 | 250 |
1X185 | 2.0 | 0.2 | 1.8 | 26.4 | 1109 | 0.164 | 235 | 285 |
1X240 | 2.2 | 0.2 | 1.9 | 29.2 | 1365 | 0.125 | 280 | 330 |
1X300 | 2.4 | 0.2 | 1.9 | 32.0 | 1638 | 0.1 | 320 | 370 |
1X400 | 2.6 | 0.5 | 2.1 | 37.3 | 2432 | 0.0778 | 380 | 430 |
1X500 | 2.8 | 0.5 | 2.2 | 41.5 | 2954 | 0.0605 | 440 | 580 |
1X630 | 2.8 | 0.5 | 2.3 | 45.1 | 3490 | 0.0469 | 500 | 650 |
Company Profile

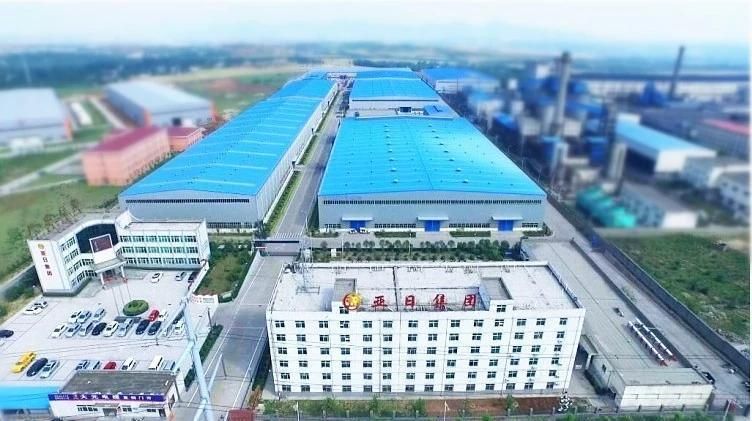

Luoyang Asian Sun wire & cable Co., Ltd., founded in 2006 and located in the Industrial Cluster area of Yichuan, Luoyang, covers an area of more than 60, 000 square meters, is an independent export-oriented enterprise, professionally engaged in design, manufacturing and trade.
We specialize in the production and supply Aluminum rod, Aluminum stranded cable, Bare conductor, Overhead insulated cable etc, OEM also accepted.
The expanded business of our Group includes industry, Hardware, electromagnetically device, new energy equipment and auxiliary products, as well as the manufacturing and trade of municipal rescue supporting materials.

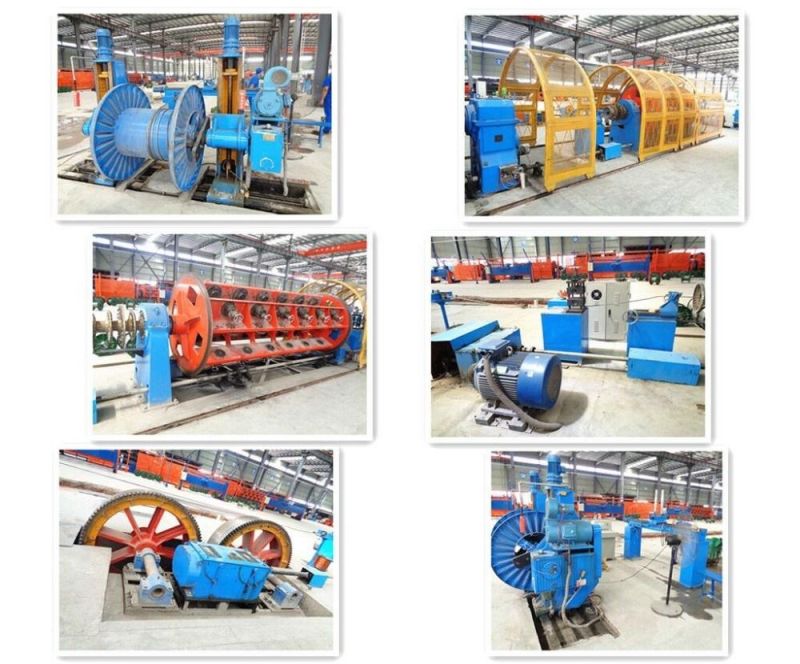

Luoyang Asian Sun wire & cable has over 200 employees, five modern management workshops and 37 advanced production equipments, Aluminum rod annual output of 200, 000 tons and Cable products annual sales over 500 million.
We keep diverse products according to customer and market demand. With superior quality products, reasonable prices and quick delivery, our company has attained a great reputation among our customers. Our products are export to in America, Asia, Africa, Australia etc, more than 50 countries such as Canada, India, Pakistan, Thailand, Malaysia, Algeria, South Africa, Botswana, Mali, Senegal, Djibouti, Ethiopia, Egypt, Argentina, Australia, New Zealand, Russia, Bolivia, Georgia and etc. We welcome more friends to cooperate with us in the near future.
We regard integrity management and pursuit excellence principle as enterprise tenet, Eagle-like individual and Geese-like team as spirit, with reliable quality and efficient service, forever with you!

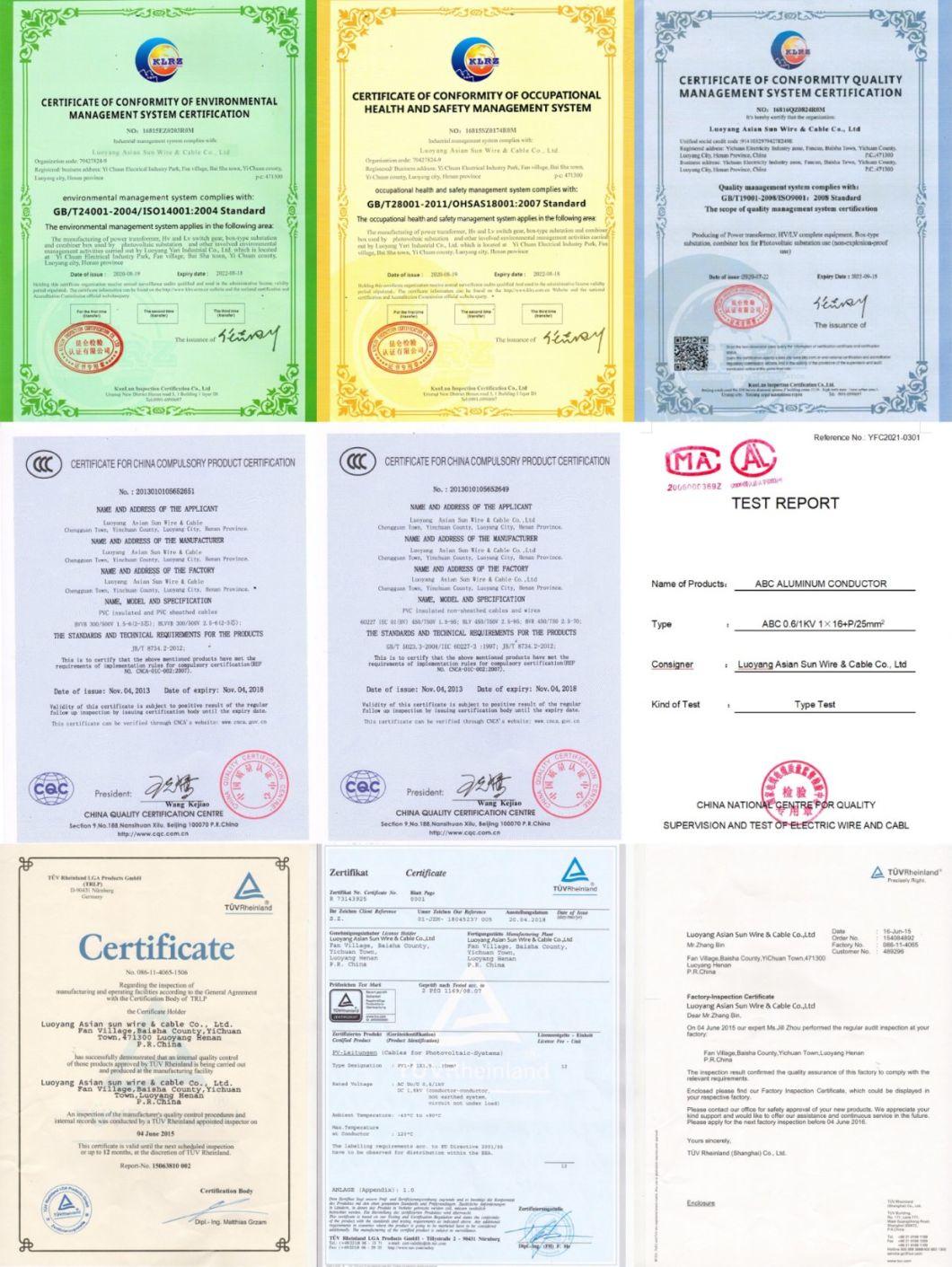

Certificates
Customer Visit
FAQ
Q1. Are you a manufacturer?
Yes, we are a manufacturer own factory with almost 20 years experiences.
Q2. What are your main products?
Main products including: ACSR, AAC, AAAC ,ACAR,ACSS,ACSS/TW,ACCC,ACSR/AW,ACS ,GSW, Aerial Bundled Cable(Low/Medium Voltage),Power Cable,Copper Alloy Wire for Electrical Railway System
Q3. Which countries and regions have your products been exported to ?
Asia, South America, North America, Europe, Africa, Oceania,including: Peru,Colombia, Chile,Korea, America, Philippines, Vietnam,Singapore, Australia,Dominica,Kenya,Poland,Pakistan,Rwanda,Brazil,Myanmar,Zambia, Congo,Ecuador,Lesotho,Bolivia,Thailand ,Germany,Angola,Yemen,India,Netherlands,Benin,Maldives,Canada,Honduras,Albania,Burundi,Paraguay , Sri Lanka,New Zealand,Bahrain,Costa Rica,Trinidad and Tobago,Guyana, Nicaragua,Mongolia,Haiti,Ghana,Macedonia etc.
Q4. Is the quality of your products guaranteed?

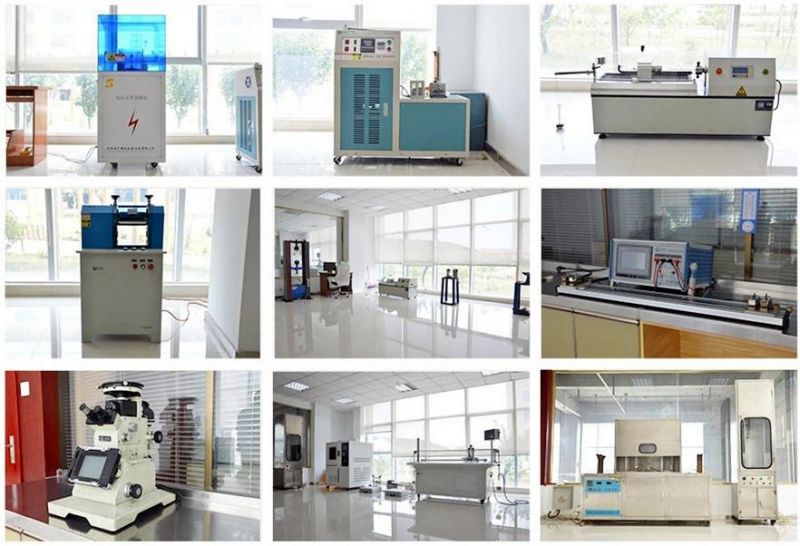

Yes,the quality of our products is highly guaranteed. The products are ISO 9001 ,ISO 14001,OHSAS 18001 certificated. Our workshops are equipped with advanced production and inspection equipment and the products strictly according to international standards or customers' requirements. We do 100% inspection for every batch of semi-finished and finished products.

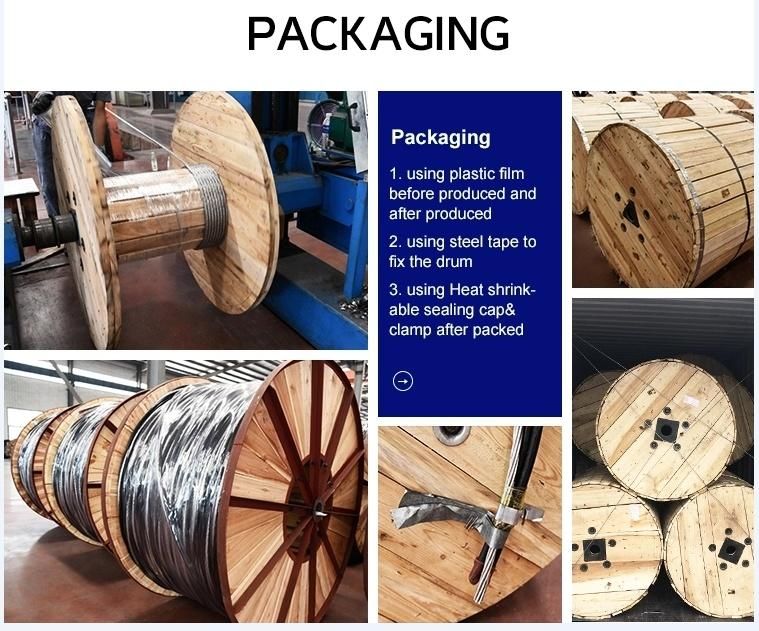

Q5. What's the package of products ?
The package is usually wooden drums ,steel drums,steel-wooden drums or according to customers' requirement.
Q6. How can I get samples?
Please notify the detailed information of sample you need. If we don't have the exact model, please consider whether the similar model is OK for you. we provide the free samples for inspection while freight is charged.
Q7. What is our payment terms ?
We can accept the following payment terms: T/T, L/C.
Welcome to place order immediatel !
