• Model NO.：YJV YJY YJLV YJLY etc.
• Range of Application：Transmission and Distribution Lines
• Certification：ISO9001, CE, CCC
• Brand：Gdyg
• Warranty：12 Months
• Transport Package：Wooden Reel, Steel Reel
• Specification：0.5-630 mm2
• Trademark：GDYG
• Origin：Guangdong, China
• Production Capacity：20000km Per Month

Basic Info.

Model NO. YJV YJY YJLV YJLY etc. Range of Application Transmission and Distribution Lines Certification ISO9001, CE, CCC Brand Gdyg Warranty 12 Months Transport Package Wooden Reel, Steel Reel Specification 0.5-630 mm2 Trademark GDYG Origin Guangdong, China Production Capacity 20000km Per Month

Product Description

Basic Information
Material Shape: Round Wire
Range of Application: Power Grid and All Industry
Certificate: ISO9001,ISO14001, CCC, CE
Brand Name: GDYG
Specification: 0.5mm2 - 630mm2
Supply Record: America, Australia, African countries, Arabian countries, Asian countries etc.
Origin: Guangdong, China
Application: Power Grid, Transmission Line, Construction, Railway Transportation, Chemical Plant, Telecom , Oil Industry, Equipment Manufacture, Instrument Industry etc..
Voltage: 35KV, 10KV, 0.6/1KV, 450/750V, 300/500V
Current: AC & DC
Insulation Material: XLPE, PVC
Sheath Material: XLPE, PVC etc.
Material Shape: Round wire

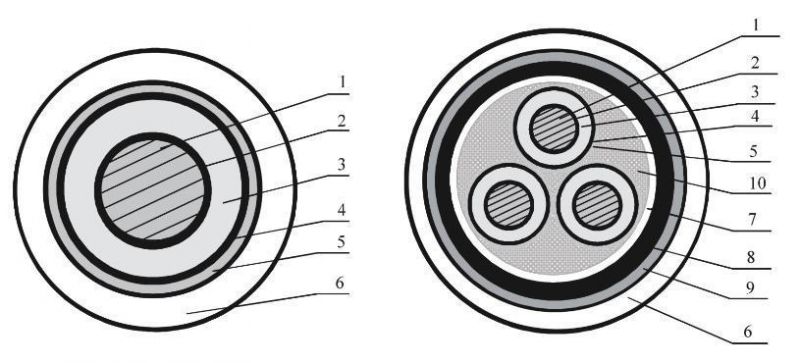

Contruction Sketch

 1. Counductor
 2. Inner semi-conducting screen
 3. Insulation
 4. Outer semi-conducting screen
 5. Metallic screen
 6. Outer sheath
 7. Wrapping tape
 8. Inner sheath
 9. Steel belt armor
 10. Filler


Application
It applies to the transmission and distribution lines with rated voltage from 3.6/6kv to 26/35kv, while flame retardant power cable is used in the places with special demands of flame retardant property.

U0--rated power frequency voltage between conductors and shield or metallic sheath used for cable designed.U--rated power frequency voltage between conductors used for cable designed.Um--max equipment voltage(max system voltage of the equipment in service).


Standards
The products are produced in accordance with GB, IEC, and other standards.


Characteristics1.Maximum conductor temperature under normal operation is 90ºC.2.Maximum conductor temperature under short circuit (max duration is not more than 5s) is nor more than 250ºC.3.Installation ambient temperature is not less than 0ºC.4.Minimum installation bending radius are not less than the following specified values:  Single core non-armored cable: 20D
  Single core armored cable: 15D
  3 cores non-armored cable: 15D
  3 cores armored cable: 12D
  (Note: D-outer diameter of cable)

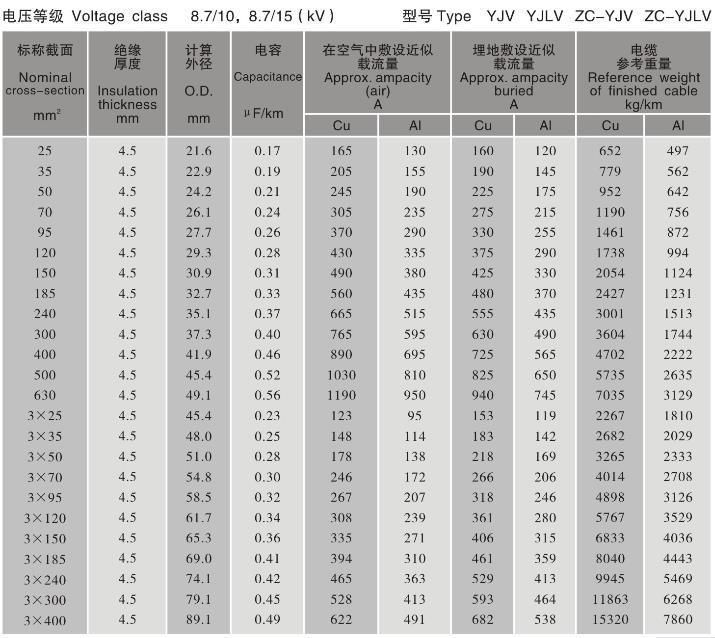

Technical Parameters



FAQ:
1. Are you a trading company or manufacture?
Vango cable is a professional manufacturer in Guangdong, China. Established in 1988, we have 30 years experience in this industry.

2. What is your main product?
As one of leading cable manufacturers in China, we are specialized in power cables with rated voltage up to 35kV, common type, fire-resistance and flame retardant PVC cable with voltage up to 1kV, control cable of 450/750V, PVC insulated cable and wire, AAC, ACSR, ACSR/AS, heat-resistant Aluminum Alloy Conductor and aerial insulated cable up to 35kV, which covers 8 series with more than 3000 items.

3. Can you offer me a free sample?
 Yes, sample is free but the freight charge should be borne by you.

4.How is the payment?
T/T, L/C is acceptable.

5. What is the lead time for mass production?
It depends on the order quantity and the season you place the order. Normally within 1 month.

6.Do you accept OEM or ODM?
Yes, we accept OEM and ODM. Your logo and company name can be printed on our products.

7.Do you have after-sale service?
Yes, 12 months warranty.
