• Model NO.：LC connector
• Core：Multicore
• Certification：RoHS, UL, CE, ISO9001, VDE, CCC
• Brand：OEM
• Sheath Material：PC
• Transport Package：Plastic Bag or as Order
• Specification：Plastic Bag or as Order
• Trademark：Can be customized
• Origin：Zhejiang, China
• HS Code：8544700000
• Production Capacity：60, 000, 000km,Year

Basic Info.

Model NO. LC connector Core Multicore Certification RoHS, UL, CE, ISO9001, VDE, CCC Brand OEM Sheath Material PC Transport Package Plastic Bag or as Order Specification Plastic Bag or as Order Trademark Can be customized Origin Zhejiang, China HS Code 8544700000 Production Capacity 60, 000, 000km/Year

Product Description

Description

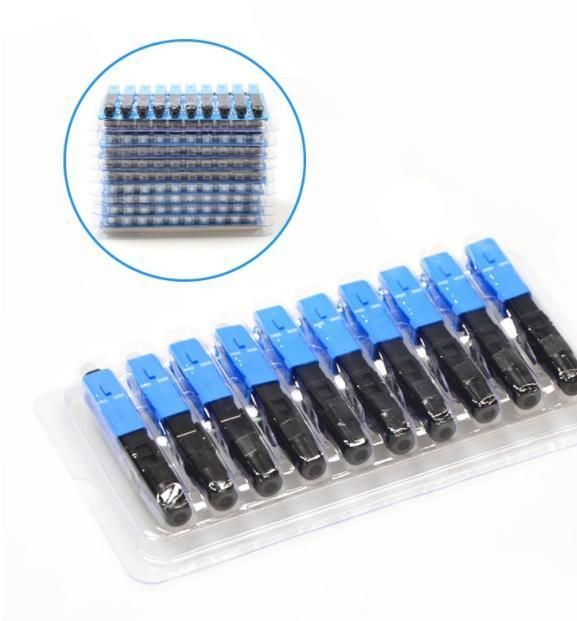

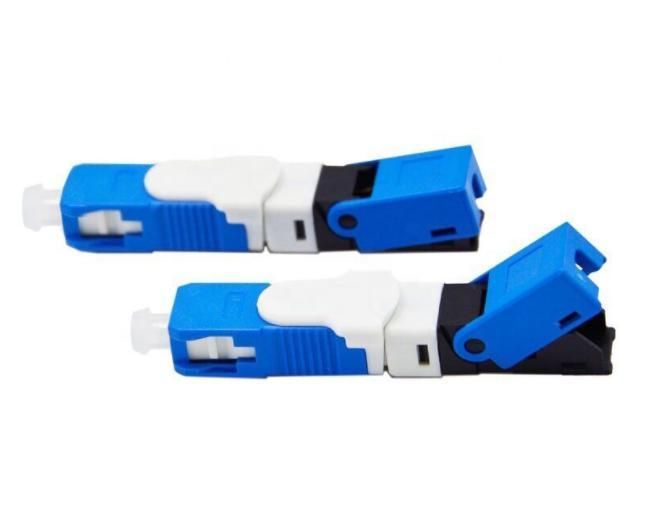

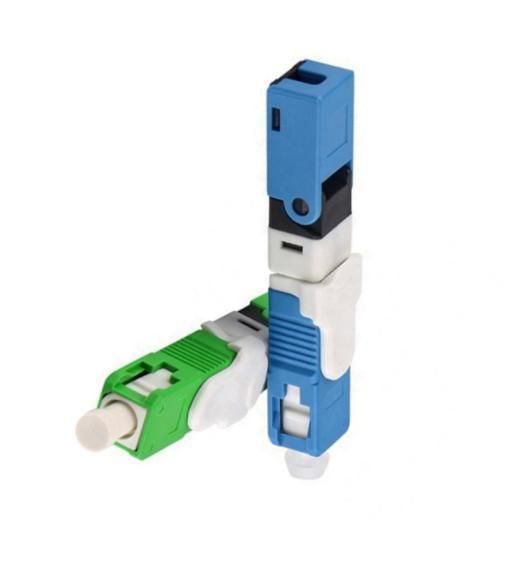

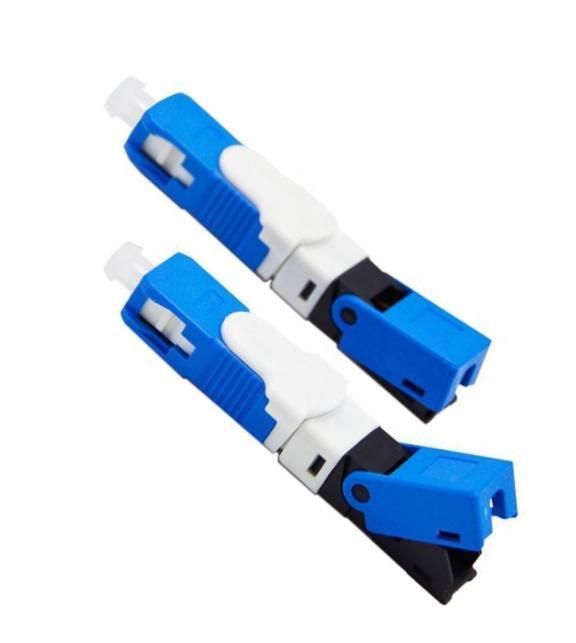

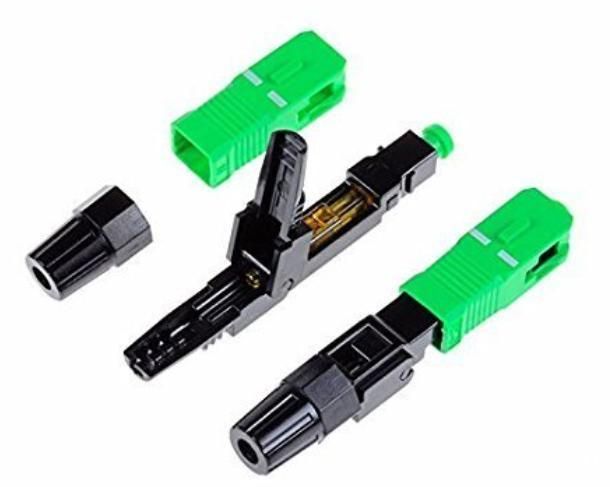

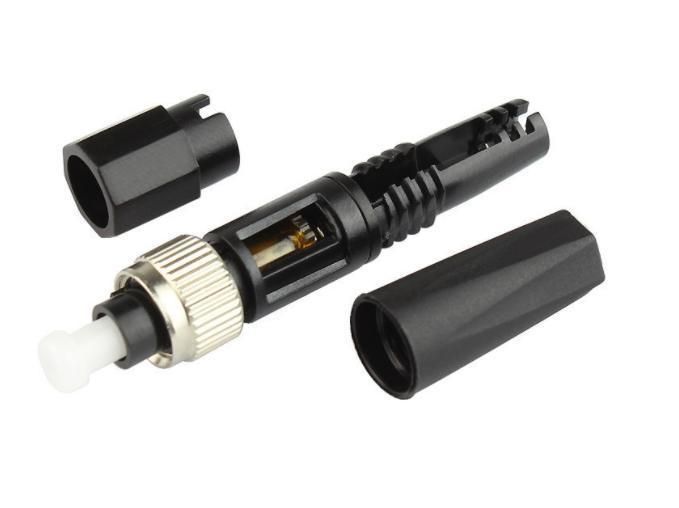

The fast connector (on-site assembly connector or on-site terminated fiber optic connector, fast assembling fiber optic connector) is a revolutionary field installable fiber optic connector that does not require epoxy or polishing. The unique design of the unique mechanical connector body includes factory-installed fiber optic heads and pre-polished ceramic ferrules. The use of such on-site assembled optical connectors can increase the flexibility of optical wiring design and reduce the time required for optical fiber termination. The quick connector series is already a popular solution for fiber optic cable wiring inside local area network and CCTV applications, as well as FTTH buildings and floors. It has good oxidation resistance and long-term stability.
Different types of products can be customized according to customer requirements.


Features
Low insertion loss and high return loss;
Reliable optical performance;
Convenient on-site installation;
Quick installation and easy operation
Low cost.


Technical Parameters

Item	Parameters
Suitable for fiber optic cable range	3.0    x 2.0 mm and 1.6*2.0mm flat cable
Size	51*9*7.55mm
Coating diameter	250μm
Mode	Single    mode
operation hours	Approximately    15 seconds (excluding fiber presets)
Insertion loss	≤    0.3dB(1310nm & 1550nm)
Return loss	≤    -50dB for UPC, ≤ 55dB for APC
Exclude fiber presets	>98%
Repeat assembly times	>5    times
Bare fiber fastening force	>5    N
Tensile strength	>30    N
Temperature	-40    ~ +85 C
Online tensile test t (20 N)	IL    ≤ 0.3dB
Mechanical durability (500 times)	IL    ≤ 0.3dB
Drop test	IL    ≤ 0.3dB

Zhejiang Fuchunjiang Optoelectronic Technology Co., Ltd. is the core subsidiary of the "information and communication" industry of Fuchunjiang Group, one of the top 500 private enterprises in China. The company was founded in 1992 and is a the national high-tech enterprises that specializes in research and development, production and sales of all kinds of single-mode optical fiber, optical cable, passive optical component and accessories. The first HYYV local telephone cable in Hangzhou and the first communication optical cable in Zhejiang province were born in our company.
The company is headquartered in Fuyang District, Hangzhou City, Zhejiang Province, with a registered capital of 300 million yuan. Headquarter covers an area of nearly 13.4 hectare and has construction area of more than 100,000 square meters. The company has nearly 1,000 employees with a strong team of professional and technical personnel. The company's products are widely used in China Mobile, China Telecom, China Unicom, National radio and television, SGCC, National defense engineering and railway, subway, highway, airport, oil field and other key projects. Meanwhile our products have been applied in Shanghai, Zhejiang, Jiangsu, Anhui, other Yangtze River Delta region and the Pearl River Delta region market of China Telecom, China Unicom, China Mobile. We have participated in the supply of optical cables for domestic key high-speed railway lines and urban subway lines, etc., and exported to Europe, America, Africa and Asia and other countries and regions. Our products have been well received by customers at home and abroad. The company has been awarded as one of the top 100 electronic information enterprises in China, one of the top 10 innovative enterprises in China's information industry, and one of the top 10 optical communication enterprises with the most comprehensive competitiveness.
In 2017, Zhejiang Fuchunjiang photoelectric technology co., LTD. established a wholly-owned subsidiary, which is specialized in the R&D and production of optical preform and optical fiber. The company adopts advanced VAD+OVD process technology, mainly manufacturing to the G.652, G.654 and G.657 series and other special applications of optical preform and optical fiber products.
As a professional manufacturer of communication products, Fuchunjiang photoelectric technology co., LTD. has a complete coverage of optical fiber, cable, optical components industry chain. It has the annual output of 600 tons of optical fiber preform, 30 million kilometers optical fiber, all kinds of communication cable 20 million Fk, 1 million kilometers butterfly drop cable, 10 million (sets)all kinds of passive component.
