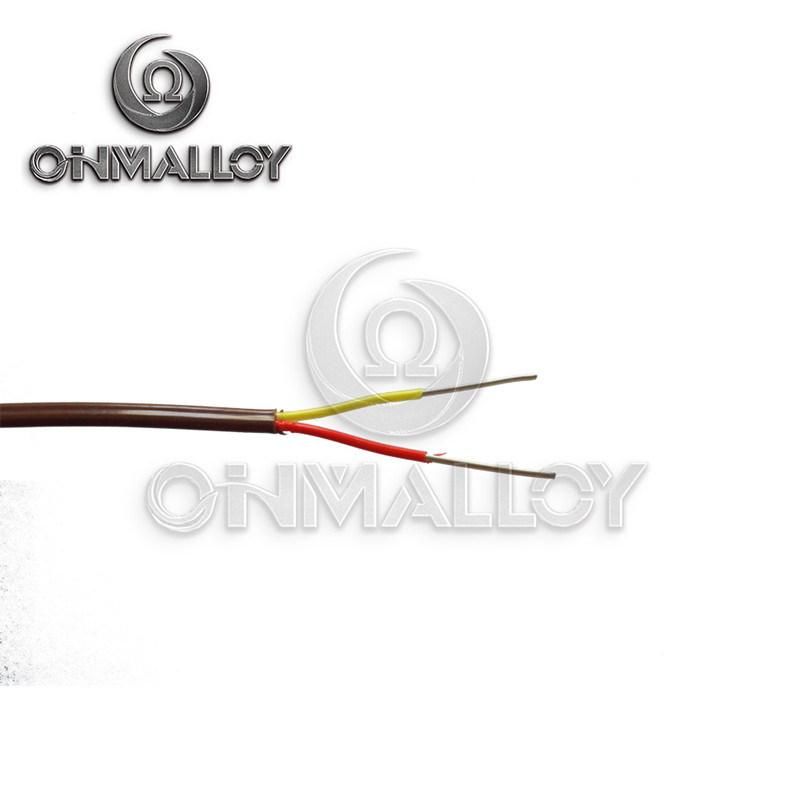

SWG 19 ANSI Standard Type K Thermocouple Extension Cable FEP Insulation
Ohmalloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Thermocouple Wires
- Conductor Material：Chromel,Alumel
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：K-HB-1121
- Material Shape：Round Wire
- Range of Application：Machinery,Thermocouple,Electricity
- Certification：ISO9001, ANSI
- Brand：Ohmalloy
- Colour：Conforms to ANSI, IEC, JIS
- Transport Package：100m,Spool, 500m,Spool, 1000FT,Spool, 1000m,Spool
- Specification：SWG19
- Trademark：OHMALLOY
- Origin：China
- Production Capacity：500000meters Per Month
Description
2.Material Specifications 3 . Dimensions and Tolerance of Fiberglass Insulated Thermocouple Wire Dimensions / Tolerance mm ) : 4.0+-0.25 105ºC continuous 150ºC single 105ºC continuous 150ºC single EMF value Vs Pt(μV) 100ºC 200ºC 300ºC 400ºC 500ºC 600ºC KP(Chromel) 2816~2896 5938~6018 9298~9378 12729~12821 16156~16266 19532~19676 KN(Alumel) 1218~1262 2140~2180 2849~2893 3600~3644 4403~4463 5271~5331 EMF value Vs Pt(μV) 700ºC 800ºC 900ºC 1000ºC 1100ºC 22845~22999 26064~26246 29223~29411 32313~32525 35336~35548 6167~6247 7080~7160 7959~8059 8807~8907 9617~9737
1.Style:Extension Wire
2.Thermocouple copper wire
Thermocouple copper wire Classification
1. Thermocouple level (high temperature level). This type of thermocouple wire is mainly suitable for thermocouple type K, J, E, T, N and L and other high temperature detection instrument, temperature sensor, etc.
2. Compensating wire level (low temperature level). This type of thermocouple wire is mainly suitable for compensating cable and extension wire of various thermocouples of type S, R, B, K, E, J, T, N and L, heating cable, control cable and so on.
Thermocouple variety and index
Thermocouple Variety and Index
Variety
Type
Measurement Range(°C)
NiCr-NiSi
K
-200-1300
NiCr-CuNi
E
-200-900
Fe-CuNi
J
-40-750
Cu-CuNi
T
-200-350
NiCrSi-NiSi
N
-200-1300
NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0
Color code & initial calibration tolerances for thermocouple wire:Thermocouple Type ANSI Color Code Initial Calibration Tolerances Wire Alloys Calibration +/-
ConductorJacket Temperature Range Standard
LimitsSpecial
LimitsCHROMEL(+) vs.
ALUMEL(-)K Yellow/Red Brown -200°C to -110°C
-110°C to 0°C
0°C to +285°C
285°C to +1250°C± 2%
±2.2°C
±2.2°C
± .75%±1.1°C
± .4%
Color Code & Initial Calibration Tolerance for Extension Wire:Extension type ANSI Color Code Initial Calibration Tolerances Wire Alloys Calibration +/-
ConductorJacket Temperature Range Standard
LimitsSpecial
LimitsIron (+) vs. Constantan(-) JX White/Red Black 0°C to +200°C ±2.2°C ±1.1°C CHROMEL (+) vs. ALUMEL (-) KX Yellow/Red Yellow 0°C to +200°C ±2.2°C ±1.1°C Copper(+) vs. Constantan(-) TX Blue/Red Blue -60°C to +100°C ±1.1°C ± .5°C CHROMEL(+) vs. Constantan(-) EX Purple/Red Purple 0°C to +200°C ±1.7°C ±1.1°C
PVC-PVC Physical Properties:Characteristics Insulation Jacket Abrasion Resistance Good Good Cut Through Resistance Good Good Moisture Resistance Excellent Excellent Solder Iron Resistance Poor Poor Service Temperature Flame Test Self-extinguishing Self-extinguishing

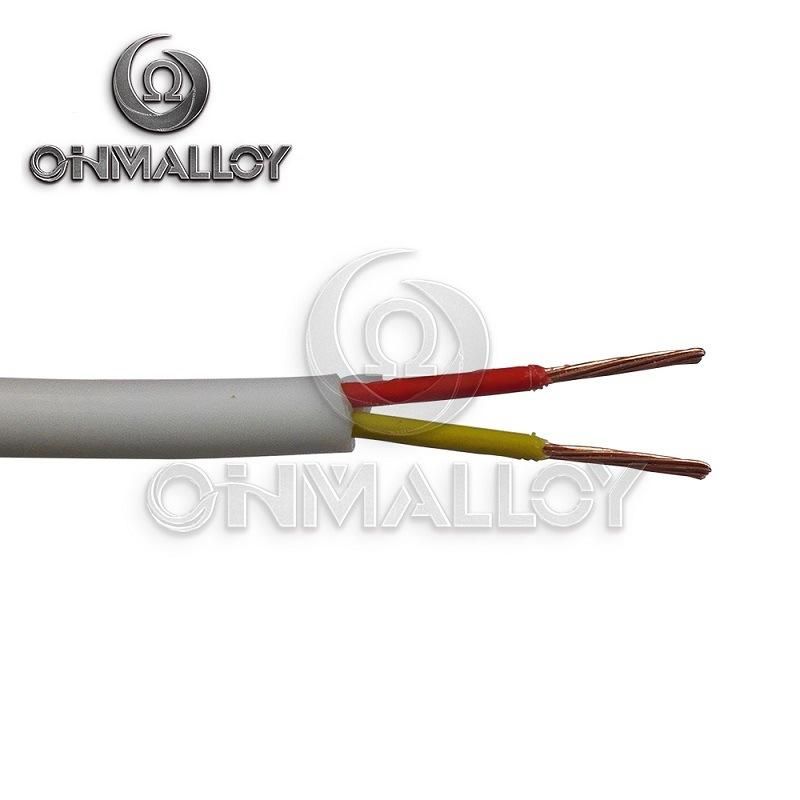

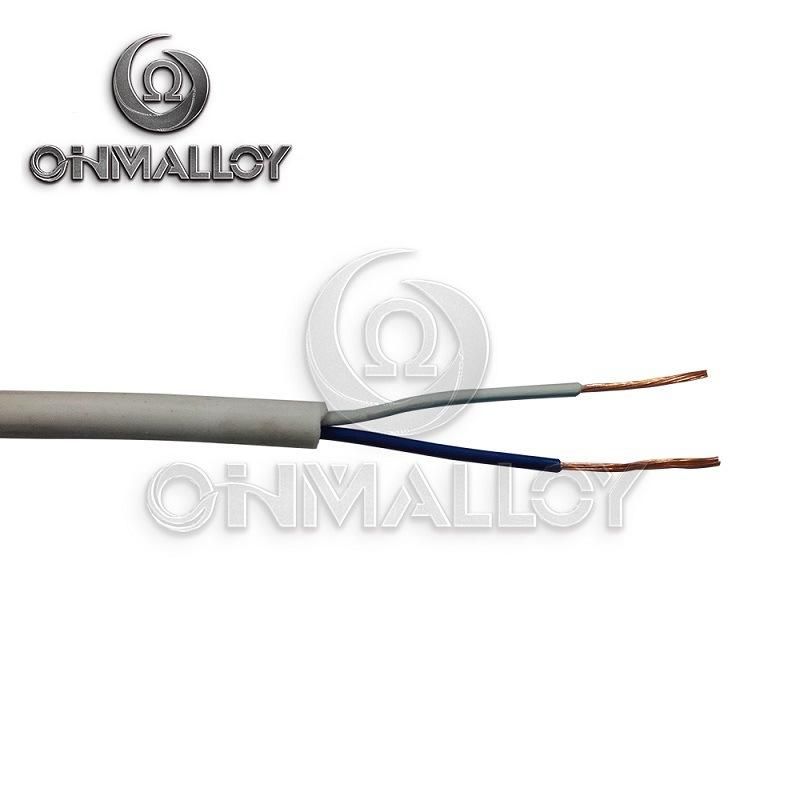

Products&Package:
