• Wire Core Material：Bare Copper Wire
• Certification：CE, RoHS, CCC, UL, CPR
• Model：PV
• Brand：OEM
• Conductor：Tc
• Insulation：Polyolefin Copolymer Electron-Beamcross-Linked
• Jacket：Polyolefin Copolymer Electron-Beamcross-Linked
• Fire Performance：IEC 60332-1
• Specification：BVR Power cable
• Trademark：OEM
• Origin：Ningbo
• HS Code：8544491100
• Production Capacity：5000000000

Basic Info.

Wire Core Material Bare Copper Wire Certification CE, RoHS, CCC, UL, CPR Model PV Brand OEM Conductor Tc Insulation Polyolefin Copolymer Electron-Beamcross-Linked Jacket Polyolefin Copolymer Electron-Beamcross-Linked Fire Performance IEC 60332-1 Specification BVR Power cable Trademark OEM Origin Ningbo HS Code 8544491100 Production Capacity 5000000000

Product Description

Photovoltaic Power PVC Cable 1000V TUV



APPLICATlON
Double insulation,electron-beam cross-linked cables for Photo-voltaic power applications.

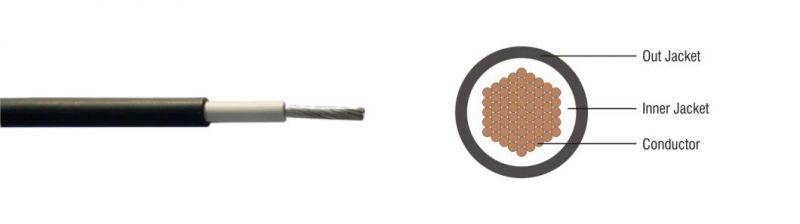

CONSTRUCTION

• Conductor: Tinned fine copper strands, according to VDE 0295/IEC 60228, class5
• Insulation: polyolefin copolymer electron-beam cross-linked
• Jacket: polyolefin copolymer electron-beam cross-linked,UV and ozoneresistant
• Jacket colour: all colour

MATERIAL PROPERTIES/STANDARDS

• Fire performance: IEC60332-1
• Smoke emission: IEC 61034; EN50268-2
• Low fire load: DIN51900
• Approvals: VDE-AR-E 2283-4 PV1-F
• Application standards: UNE 21123; UNE 20.460-5-52,UTEC 32-502

TECHNICAL SPECIFICATION

• Nominal voltage:U0/U=600/1000V AC,1000/1800V DC
• Test voltage: 6500V, 50HZ,5min
• Max. conductor temperature: -40ºC up to +120ºC
• Ambient temperature: -40ºC up to +90ºC
• Max. Short circuit temperature:280ºC
• Bending  radius: fixed installation>4×Φ    Occasionally moved>5×Φ

ADVANTAGES

• Electron-beam cross-linked compounds
• UV, ozone and hydrolysis resistant
• High temperature resistant,the materials do not melt or flow
• Good cold flexibility
• Very long service life>25 years at 90ºC
• Compatible to all popular connectors

DIMENSIONS, PARAMETER

Construction (n×mm2)	Conductor Structure (n/mm)	Conductor (Φ mm)	Outer (Φ mm)	Resistance max. (Ω/km)	Carrying capacity (A)	Approx Weight (kg/km)
1×1.5	30/0.25±0.02	1.58	4.90	13.7	30	36
1×2.5	49/0.25±0.02	2.00	5.50	8.21	41	49
1×4	56/0.30±0.02	2.55	6.10	5.09	55	65
1×6	84/0.30±0.02	3.10	7.10	3.39	70	87
1×10	145/0.30±0.02	4.10	8.50	1.95	98	138

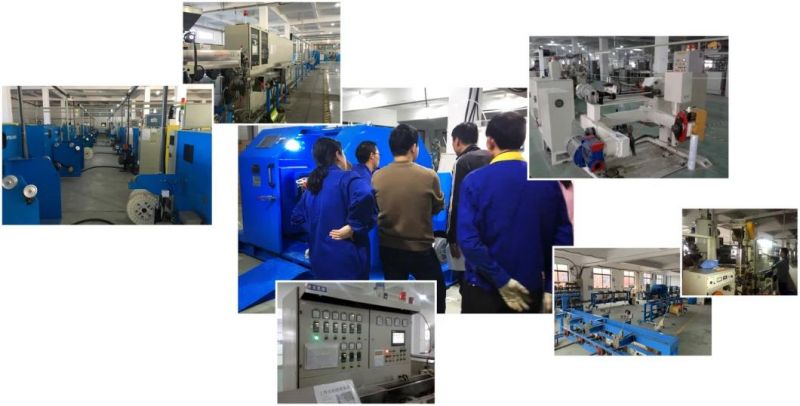

PRODUCTION EQUIPMENT





QUALITY POLICY

Exactcables will manufacture cable according to customer's requirement in an effective and profitable manner. To achieve the above, the Management is committed to the following:

• Maintain the ISO 9001 Quality Management System
• Continual review and improvement of the effectiveness of the Quality Management System
• Provide all necessary resources to manufacture quality cable
• Create a safe and technologically advanced working environment
• Respect for the environment in which we operate
• Training and communication to keep employees informed and involved

Every employee has the responsibility to ensure that these requirements are met.

Website: exactc.en.made-in-china.com

  COMPANY INFOMATION
We,Ningbo Exact Cables & Wire Co.,Ltd is a Pioneer manufacturer with more than 12 years experience in the cable industr y in China. We can professionally manufacture and supply Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires, Our products with the brand of "Exactcables" which are approved by China CCC, the CPR, UL, CE, RoHS, ETL and REACH. The current production capacity is about 500,000,000 meters per year.

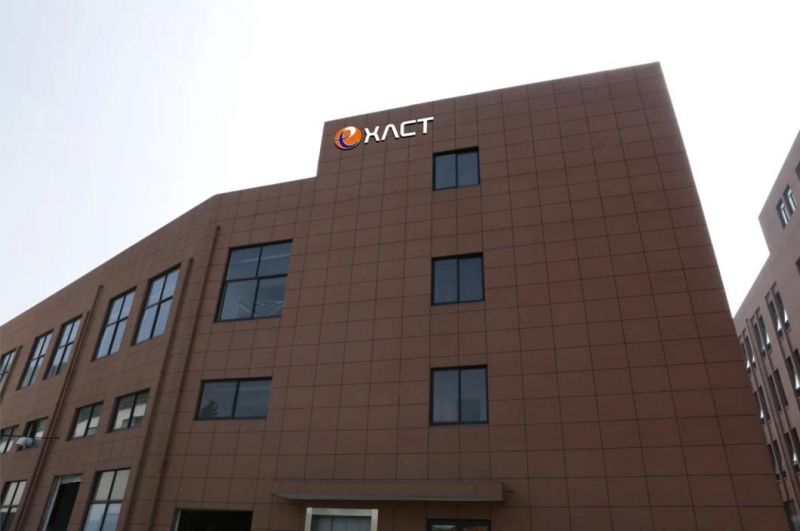

OurfactoryislocatedinzhejiangNingbowhichisabeautifulportcity.Wehaveveryadvancedtestingmachines,includingAgilentandHPanalyzer.Wecarefully testcablesunderISO9001-2000qualitymanagementbeforeshippingtothecustomers.Andourqualityisalwaysreliable.

Most of our products are expor ted to Europe, America, Russia, and South-east Asia. Etc. What is more, our company always devotes to developing custom cables according to clients needs. We look for ward to working with you and getting mutual benefit in future.

FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Fire alarm cables, Alarm/security cables, Speaker cables, Coaxial cables, Data cables, HDMI cables, telecommunication cables, telephone cables, power cables and other various of cables and wires
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc

Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.

Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.

Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.

Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term

Q6: Where is your factory located? How can I visit there?
