• Model NO.：Electrical Wire THW
• Material Shape：Round Wire
• Range of Application：Normal Electrical Used
• Certification：ISO9001, CCC
• Brand：Hongda

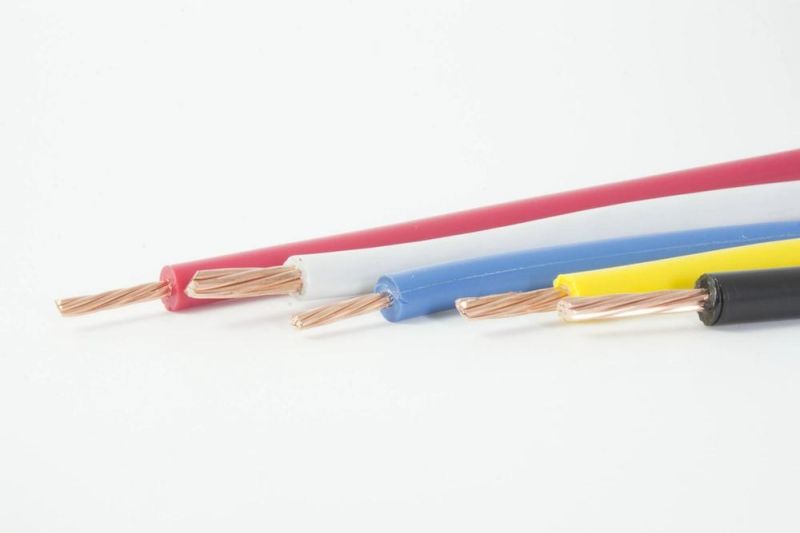

• Product Name：Thw Wire, Thw Cable
• Standard：IEC, BS, AS,NZS, SABS
• Color：as Your Require
• Core Number：as Your Require
• Rated Voltage：600V
• Rated Temperature：75c
• Armour：None Armour
• Purity of Copper Conductor：99.99%
• Transport Package：Plastic Film, Plastic Drum
• Specification：0.5mm2-400mm2
• Trademark：Hongda
• Origin：Henan China
• HS Code：8544492900
• Production Capacity：3000km,Month

Size

ConstructionInsulation Thickness

Approximate O.D.

            1.6 mm

solid1.20 mm4.05 mm            2.0 mmsolid1.20 mm

4.45 mm

            2.6 mm

solid1.20 mm5.05 mm            3.2 mmsolid1.60 mm

6.45 mm

            2.0 sq. mm

7 x 0.60 mm1.20 mm4.25 mm            3.5 sq. mm7 x 0.80 mm1.20 mm

4.85 mm

            5.5 sq. mm

7 x 1.00 mm1.20 mm5.45 mm            8.0 sq. mm7 x 1.20 mm1.60 mm

6.85 mm

            14 sq. mm

7 x 1.60 mm1.60 mm8.05 mm            22 sq. mm7 x 2.00 mm1.60 mm

9.25 mm

            30 sq. mm

7 x 2.30 mm1.60 mm10.15 mm            38 sq. mm19 x 1.60 mm1.80 mm

11.65 mm

            50 sq. mm

19 x 1.80 mm1.80 mm12.65 mm            60 sq. mm19 x 2.00 mm1.80 mm

13.65 mm

            80 sq. mm

19 x .230 mm2.00 mm15.55 mm            100 sq. mm19 x 2.60 mm2.00 mm

17.05 mm

            125 sq. mm

37 x 2.10 mm2.20 mm19.15 mm            150 sq. mm37 x 2.30 mm2.20 mm

20.55 mm

            200 sq. mm

37 x 2.60 mm2.40 mm23.05 mm            250 sq. mm61 x 2,30 mm2.40 mm

25.60 mm

            325 sq. mm

61 x 2.60 mm2.60 mm28.70 mm            400 sq. mm61 x 2.90 mm2.60 mm

31.40 mm

            500 sq. mm

61 x 3.20 mm2.80 mm

34.50 mm

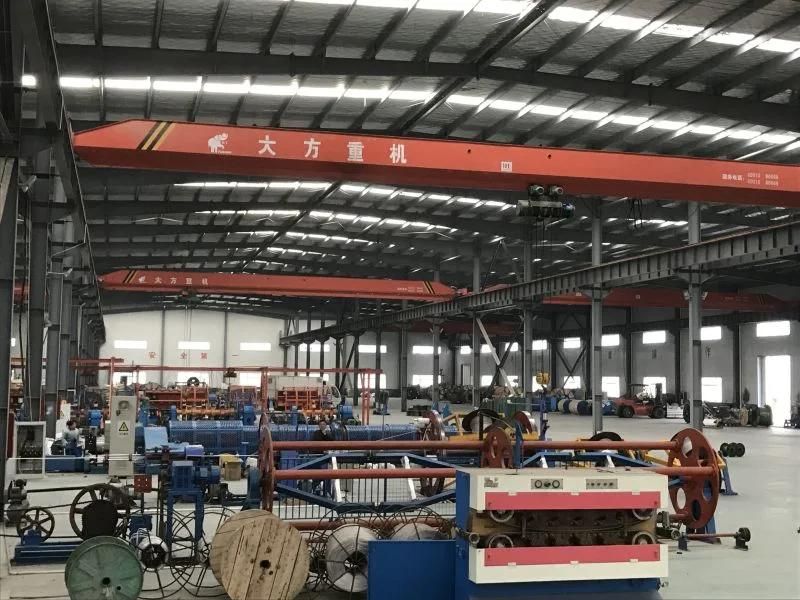

Factory

     Henan Hongda Cable Co., Ltd. located in No. 3, Changping Road, ZhanDian District, Jiaozuo, Wuzhi. Our factroy established in March of 2004. Our owns registered capital of RMB Fifty-one million six hundred and eighty thousand. Hongda Cable covers an area of 100,000 square meters, including 50,000 square meters of building area. We have more than 120 staff members and professional workers. our fixed assets of 90,000,000. We can provide more than 100 varieties, tens of thousands of specifications of wire and cable, with 10000 km annual production capacity
     Henan Hongda Cable Co. Ltd. is the original Zhengzhou Hongda Cable Co. Ltd. established enterprise expansion. The company is committed to system R&D, design, manufacturing, marketing and service of cable products,We mainly aim at managing cross-linking XLPE insulated power cables, PVC insulated power cables, plastic insulated control cables, insulated overhead cables, and stranded aluminum and ACSR. At present, the cables' biggest cross area is 800 square meters with a maximum electric power of 35KV. The company has more than 300 (sets) domestic and oversea-leading production and testing equipment
7.Packing and Transportation
  We provide you with the best product packaging design services, thereby allowing you to save more shipping charges
