Risun Cable 6 X 7/020, Screened Security Cable, 300m, Pull Box, Grey

Hangzhou Risun Cable Co., Ltd.
  • Application：Local Communication Cable, LAN Cable
  • Conductor Material：Copper
  • Cover Material：PVC
  • Material Shape：Round Wire
  • Conductor Type：Stranded
  • Wire Core Material：Bare Copper Wire

Base Info

  • Certification：CE, ISO, RoHS
  • Color：White and Grey
  • Inner Conductor：0.22mm2
  • Nom. Od：1.2mm
  • Export Length：100m,Roll, 305m,Drum
  • Pairs&Core：6 Cores
  • Jacket Thickness：0.45mm
  • Outer Jacket Diameter：6.0mm
  • Transport Package：Carton Box, Pallet
  • Specification：6 Core 0.22mm2
  • Trademark：Risun
  • Origin：Zhejiang, China
  • HS Code：8544491100
  • Production Capacity：30000boxes,Month

Description

ConductorShieldingOuter  JacketBare CopperAluminium Foil-Polyester TapeLSZHInsulationDrain WireJacket ColorPE(High Density Polyethylene) Tinned CopperGrey ,White or according customer's requests
conductor24awg (7/0.20mm) CU
insulation1.2±0.02mm
Drain Wire7/0.20mm CU
ScreenAl. Polyester Tape
sheathPVC or LSZH
cores6
Mechanical Properties:
Operating Temp Range-15 to 70°C
Max. Recommended Pulling Tension92N
Min Bend Radius (Install)55mm


Application
Security Systems, Control and Communications equipment, access control, detection and monitoring

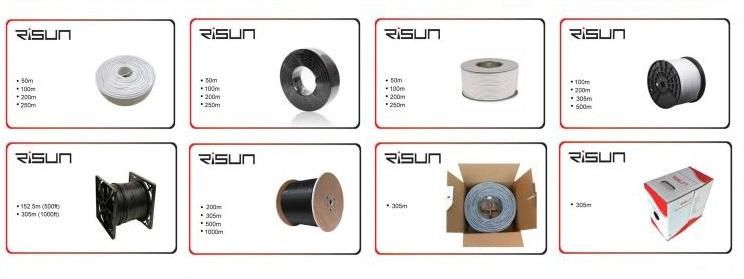

 Packing

1) packing lengths:100m/Plastic Reel,305m/Pull Box, 500m/Wooden Reel, or other lengths available according to client's request.
2) inner packing: wooden reel, plastic reel, and paper reel available.
3) outer packing: carton box, pull box
4) other packing available according to client's request.


6 Core 7 Strand 6X7/0.20 Screened CableRISUN has it's own style of carton artwork. A carton factory support us to supply the most suitable carton for you. Your brand and artwork is also available.RISUN

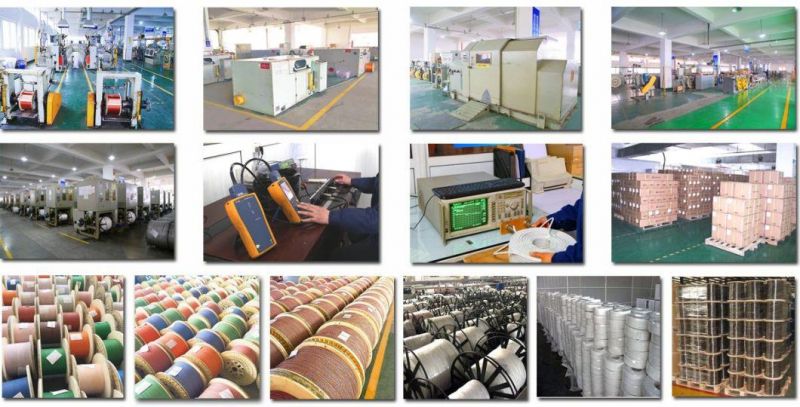

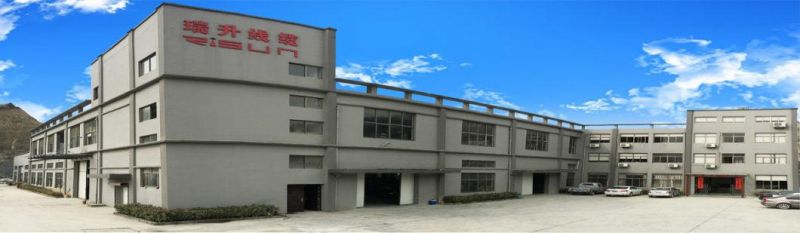

Company Profile

RISUN is Professional in manufacturing of high quality network cable/lan cable , coaxial cable, telephone wire and alarm cable. We specialize in this field for 15 years, and have already get ETL, CE, RoHS, ISO9001,CPR certification etc.

We have entered into the market of Europe, America, Southeast Asia and Middle East. Conducting business on the basis of equality, cordiality and mutual benefits,supported by our engineering design assistance and outstanding customer service. This has led to a tradition of growth and quality achievements for RISUN.

We are committed to providing you with high-quality and competitive products.We will be your trusted partner.

6 Core 7 Strand 6X7/0.20 Screened Cable6 Core 7 Strand 6X7/0.20 Screened CableRisun Cable 6 X 7/020, Screened Security Cable, 300m, Pull Box, GreyFAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .
