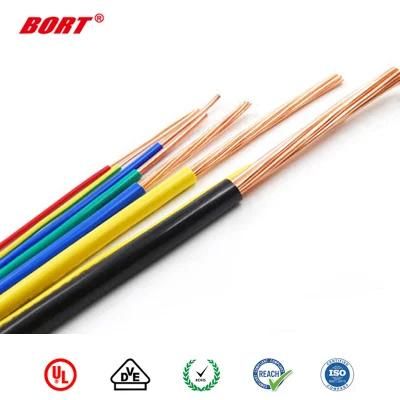

20AWG 600V 105 Degrees Stock Awm 1015 Cable
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：The Internal Wiring for Automobile
- Conductor Material：Copper
- Insulation Material：PVC
- Material Shape：Round Wire
Base Info
- Model NO.：UL1015
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Bort
- Product Name：UL1015 VW-1 600V Single Core Solid Conductor Awm C
- Conductor：Stranded, Tinned or Bare Copper Conductor Sample
- Sample：Conventional Sample Free
- Producing Experience：10 Years
- No. of Cores：One Core or Multi-Cores
- Colors：Could Be Customized Color
- Delivery Time：in 7-10days
- Packing：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Company Type：Manufacturer
- Service：OEM, ODM
- Transport Package：100m,Roll, 305m,Roll, Wrap Plastic Film Packaging
- Trademark：Bort
- Origin：China
- Production Capacity：300000km
Description
AWGNO.of Cond Insulation Thick. Outside Thick. Packing mm mm mm m/r Ω/mm 30 7/0.1 0.79 1.90 610 354.33 28 7/0.127 0.79 2.00 610 223.75 26 7/0.16 0.79 2.05 610 139.76 24 11/0.16 0.79 2.20 610 88.36 22 17/0.16 0.79 2.40 610 60.16 20 21/0.178 0.79 2.55 610 38.58 18 34/0.178 0.79 2.75 610 22.98 16 26/0.254 0.79 3.10 305 15.06 14 41/0.254 0.79 3.50 305 9.65 12 65/0.254 0.79 3.95 305 6.07 10 65/0.320 0.79 5.00 305 3.73 8 55/0.45 1.20 6.50 305 2.23 26 1/0.404 0.79 2.00 610 142.79 24 1/0.511 0.79 2.10 610 89.39 22 1/0.643 0.79 2.25 610 54.30 20 1/0.813 0.79 2.40 610 33.90 18 1/1.024 0.79 2.65 610 21.40
