• Wire Core Material：Red Copper Wire
• Certification：ISO, CCC, CE, RoHS, UL, VDE
• Model：Yjv, Yjy, Yjv22, Yjy23
• Brand：Feiya
• Model Number：2,3 ,4 ,5 Cores, etc.
• OEM：Yes
• ODM：Yes
• Colors：Assorted Upon Request
• Operating Environment：Power, Construction, Metallurgy, Petrochemicals, T
• Transport Package：Submersible Pump, Heavy Duty ,Colliery
• Specification：Rated voltage(kV): 0.6-1
• Trademark：Fengda
• Origin：Tianjin, China
• HS Code：8544421900

Basic Info.

Wire Core Material Red Copper Wire Certification ISO, CCC, CE, RoHS, UL, VDE Model Yjv, Yjy, Yjv22, Yjy23 Brand Feiya Model Number 2/3 /4 /5 Cores, etc. OEM Yes ODM Yes Colors Assorted Upon Request Operating Environment Power, Construction, Metallurgy, Petrochemicals, T Transport Package Submersible Pump/ Heavy Duty /Colliery Specification Rated voltage(kV): 0.6-1 Trademark Fengda Origin Tianjin, China HS Code 8544421900

Product Description

2kv 5kv 1 AWG 2AWG Submersible Oil pump Field Power Cable/ESP cable


Specifications:
power supply of Electric submersible pumps system with the rating voltage below 6 kV,oil resistance & anti-corrosive resistance
EPR insulated and lead sheathed, galvanized steel tape interlocked armoring, cable for submersible oil pump

Application:
It is applied to power supply of ESP(Electric submersible pumps) system with the rating voltage less than 3kV or 6 kV, and has an outstanding capability of oil resistance and anti-corrosive resistance. The operating temperature of the conductor is 120°C,150°C,180°C,204°C,232°C,etc.

Standard: IEEE1018 API RP 11S6 GB/T16750 JB5332

Configuration:
Conductor -- Solid or stranded tinned copper
Insulation -- EPDM/EPR
Sheath -- Alloy lead
Barrier -- Oil resistant or braid tape Layer(Separator)
Armor -- Galvanized or stainless steel interlocked armor

3kV Type

AWG No.	Cross-section (Approximation) mm2	Conductor No./diameter mm	Insulation Thickness mm	Sheath Thickness mm	Overall Dimensions mm×mm	Reference weight kg/km
1	3×42.4	1/7.35	1.9	1.0	16×45	3544
2	3×33.6	1/6.54	1.9	1.0	15×43	3116
4	3×21.1	1/5.19	1.9	1.0	14×38	2442
5	3×16.8	1/4.62	1.9	1.0	13×36	2211
6	3×13.3	1/4.12	1.9	1.0	12×34	1989
7	3×10.6	1/3.60	1.9	1.0	11×32	1767

6KV Type

AWG No.	Cross-section (Approximation) mm2	Conductor No./diameter mm	Insulation Thickness mm	Sheath Thickness mm	Overall Dimensions mm×mm	Reference weight kg/km
1	3×42.4	1/7.35	2.3	1.0	16×47	3850
2	3×33.6	1/6.54	2.3	1.0	15×45	3320
4	3×21.1	1/5.19	2.3	1.0	14×40	2730
5	3×16.8	1/4.62	2.3	1.0	13×38	2410
6	3×13.3	1/4.12	2.3	1.0	12×36	2100
7	3×10.6	1/3.60	2.3	1.0	11×34	1790

AWG sizes are approximate equivalent values. The actual cross-section is in mm².

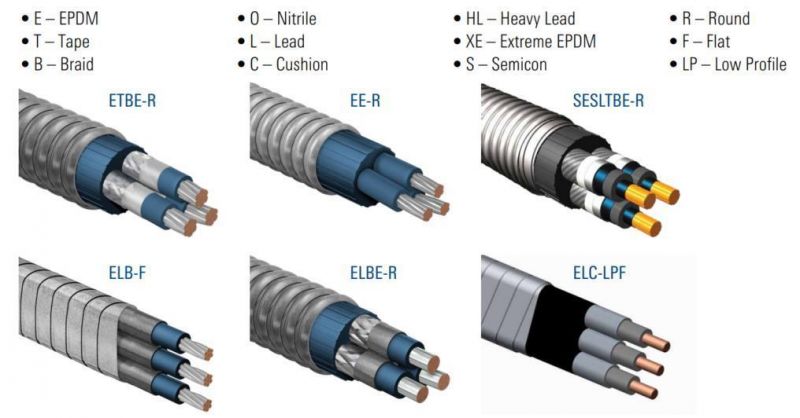

Submersible oil pump power cable is used for submersible oil motor power supply. inculde round and flat, also could be buildup by all the power cable types together with different stainless steel pipe/tube sizes.
