XLPE Insulated PVC/PE Sheathed Environmentally Friendly Fire Resistant Armoured Power Cable
Ningbo Junyi Zhonghao Import & Export Co., Ltd.- Application：Overhead, Underground
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PVC,PE
- Material Shape：Round Wire
Base Info
- Model NO.：Insulated
- Wire Core Material：Copper,Aluminium
- Certification：ISO, CCC, CE, RoHS, UL, VDE
- Model：Yjv,Yjlv
- Brand：Black Elephant
- Core Amount：1,2,3,3+1,3+2,4,4+1,5
- Sample：Available
- Transport Package：Wooden,Steel Drum or as Specified
- Specification：1.5-1200²
- Trademark：Black Elephant , Customizable
- Origin：Sichuan, China
Description
Power transmission systems

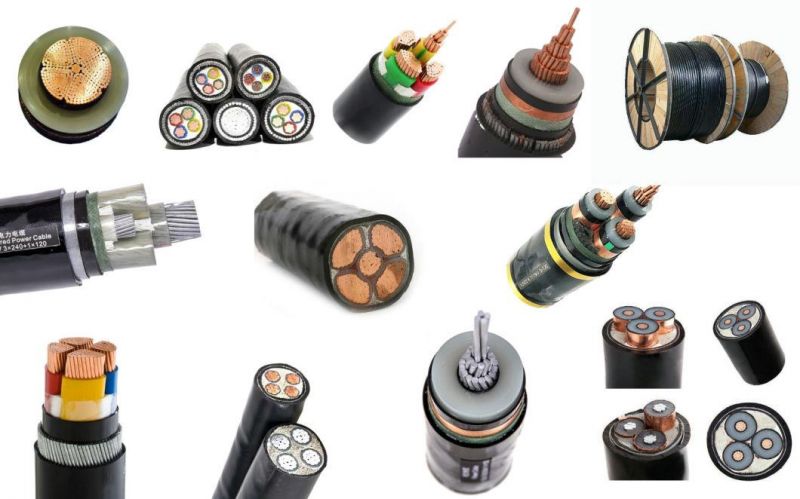

11KV 33KV XLPE Power Cable 4 Core 150mm 300mm 400mm Armoured Power Cable Price Application
XLPE(Cross linked polyethylene) cable constitutes the best cable for transmission and distribution lines because of its excellent electrical and physical properties. These cables has the advantage of simplicity in construction, lightness in weight; convenience in application besides its excellent electrical, thermal, mechanical and anti-chemical corrosion properties. It can also be laid with no limitation of level difference along the route.
11KV 33KV XLPE Power Cable 4 Core 150mm 300mm 400mm Armoured Power Cable Price Standards
GB/12706-2008, IEC60502,IEC60228, IEC60332, BS5467, BS6622, IS1554, IS7098 and ICEA S-66-524 etc.
Chndo Cable can also design and produce for special application requirement.

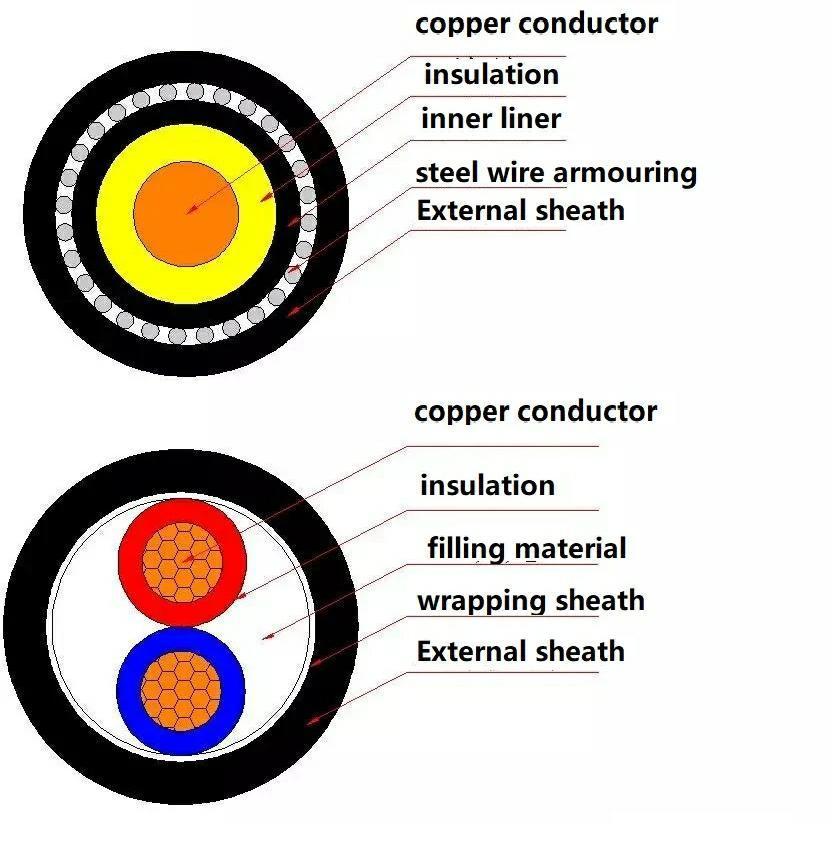

11KV 33KV XLPE Power Cable 4 Core 150mm 300mm 400mm Armoured Power Cable Price Construction
Conductor: Plain annealed stranded compacted circular copper or aluminium conductor to IEC60228 class 2
Conductor Screen:Extruded semi-conductive compound
Insulation:XLPE (cross-linked polyethylene) rated at 90°C
Insulation Screen:Extruded semi-conductive compound
Metallic Screen:copper tape or concentric layer of copper wires
Colour for core identification:Red,Yellow ,Blue tape shall be applied between insulation screen and metallic screen( The above identifying can be changed as order)
Assembly: Three screened cores are laid up together ,if necessary filled with non hygroscopic material compatible with insulation and covered with a layer of PVC sheath
Inner Sheath:Extruded layer of PVC ST2 or PE , LSZH
Armour: Double of galvanized steel tape or galvanized steel wire for three core power cable ,Double of aluminium tape or aluminium wire for single power cable
Outer Sheath: PVC type ST2 to IEC 60502 or PE ,LSZH
ABOUT US
Sichuan Chndo Cable Co., Ltd lies in Dazhu county, Sichuan province, China. Founded in 1970, covers an area of 140,000 square meters. It's an appointed cable manufacturing enterprise approved by China Department of Mechanical Industry, "Science and Technology Oriented Enterprise" and "One of the Biggest Taxation Contribution Enterprise" in Sichuan province, and its products are "Sichuan Famous Brand Product" and "Product Exemption From Quality Surveillance Inspection in China".
In 1995, "Black elephant" products are awarded "Recommended Products for National Dwelling Buildings of Well-to-do Level " by National Science and Technology Committee and Department of Construction. In 1996, "Black elephant" products are awarded "First Class Products" in national quality test and honored "Sichuan Famous Brand Product" Presently, "Black Elephant" brand wires and cables are produced according to GB and IEC standards ,consisting of wires and cables for electrical equipment (PVC & rubber insulated), power cables, aerial cables, and special cables, more than 200,000 km output per year.
"Black Elephant" products are vastly used nowadays in middle China, south and southwest China, Hong Kong, Australia, Turkmenistan and other countries, such as Petro China, SINOPEC, Nine Dragons Paper (Holdings) Limited, China Resources(Holdings) Ltd, Yangtze River Shipping Group, LAFARGE China and ABB Australia Pty Limited.
WHY CHOOSE US
Established in 1970, with over 50 years of industry knowledge, we have grown to become the most important cable supplier in China.
VALUE & TRUST
We acknowledge that value and trust are the ingredients of a quality relationship. No matter the size of the business, order, industry or sector we can assist.
QUALITY ASSURANCE
All products are in compliance with relevant standards and all cables have passed a number of Chinese and international certifications.

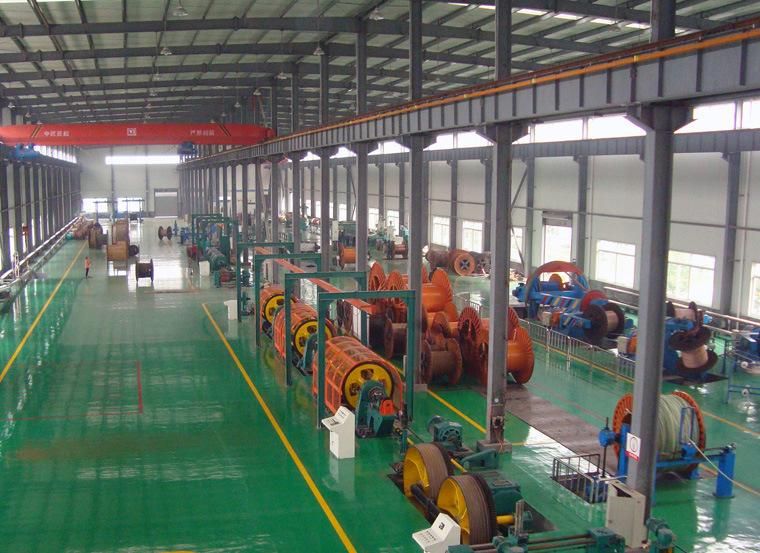

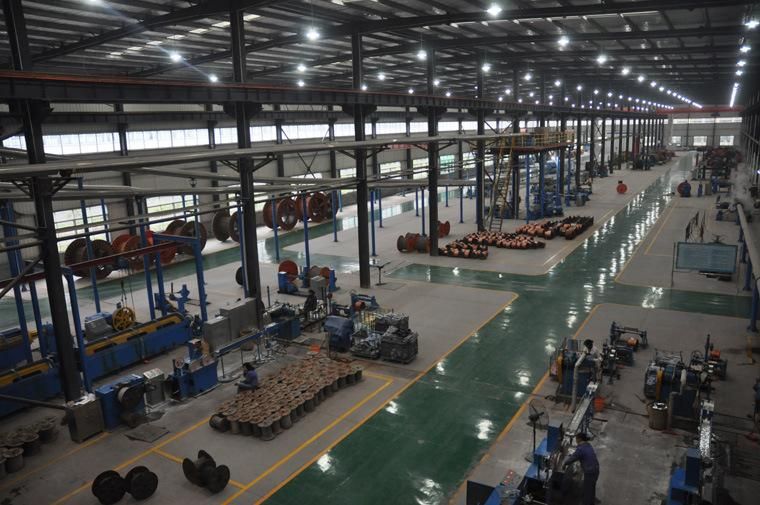

PRODUCTION CAPACITY
We have more than 500 sets of advanced production equipment to meet the needs of various projects.
R&D CAPABILITY
The company has more than 160 senior professional and technical personnel, established the east Sichuan cable Research Institute, has a number of patented technologies and patented products.
GLOBAL SUPPLY
Enquiries are welcome from customers worldwide. Our export service is efficient and reliable with the ability to ship to any destination in the world.
CUSTOMER SERVICE
TradeMessenger 24 hours online, you can contact him for any quote, order, query or any general question.
FAQ
1). Is your company a factory or a trading company?
We are a trading company, mainly responsible for the export business of Sichuan Chndo Cable Co., LTD. Our trade is expanding both at home and abroad.
2). When can I know the price?
We usually make an offer within 1-2 days after receiving your inquiry. If you need a price urgently, please call or email us and we will give priority to your inquiry.
3).How can I have a sample to check your quality?
After the price is fixed, you can ask for samples to check our quality. The sample is free, but you have to pay the freight.
4). What's the minimum quantity?
Generally 1000 meters for building wire. Cable, armored or unarmored, 500 m.
5). What are the standards of your product?
The company can produce wire and cable of various specifications according to IEC, ASTM, BS, DIN, SANS, CSA and other international standards.
6). What about lead time?
If we have it in stock, delivery will be quick. New products take 15-25 days to produce.
7). Terms of payment:
We usually pay 30% in advance and the balance before delivery. Or 100% sight l/C.
8). What is your packing?
Our cables are packed in cable wheels, which can be made of steel, steel frame, fumigated wood or wooden cases. We use different packaging for different lengths of cables to ensure that the products will not have problems during transportation.
