Na2xry Aluminium Conductor XLPE Steel Wire Armoured Underground Cable
Henan Hongda Cable Co., Ltd.- Application:Construction, Underground, Industrial, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:AC Cable
- Insulation Material:XLPE
- Sheath Material:Flame Retardant PVC
- Material Shape:Round Wire
Base Info
- Model NO.:NA2XRY cable
- Wire Core Material:Aluminum Conductor
- Certification:ISO, CCC
- Model:Na2xry Cable
- Brand:Hongda
- Armoured Type:Steel Wire Armoured
- Standard:IEC 60502-1
- Certificate:CE ISO CCC
- Transport Package:Steel & Wooden Drum
- Specification:95mm2 120mm2 150mm2 180mm2
- Trademark:Hongda
- Origin:China
- HS Code:8544601200
- Production Capacity:500km,Month
Description
YJV32
YJLV32mm2 mm mm mm mm mm kg/km kg/km A A A A 4×4 RE 2.24 0.7 1.25 1.8 19.1 770 670 37 28 46 35 4×6 RE 2.76 0.7 1.25 1.8 20.3 916 772 47 37 56 46 4×10 CC 3.8 0.7 1.6 1.8 22.3 1148 895 64 47 76 56 4×16 CC 4.8 0.7 1.6 1.8 24.5 1472 1070 84 64 98 76 4×25 CC 6.0 0.9 1.6 1.8 27.5 1942 1317 115 84 126 98 4×35 CC 7.0 0.9 1.6 1.8 29.5 2386 1521 141 115 152 126 4×50 SM 8.0 1.0 2.0 1.9 32.9 3209 2036 172 141 181 152 4×70 SM 9.5 1.1 2.0 2.1 36.7 4197 2502 218 172 222 181 4×95 SM 11.0 1.1 2.0 2.3 40.5 5362 3016 269 218 267 222 4×120 SM 12.4 1.2 2.5 2.4 45.3 6908 3940 313 269 305 267 4×150 SM 13.8 1.4 2.5 2.6 50.0 8327 4683 359 313 344 305 4×185 SM 15.4 1.6 2.5 2.7 54.2 10044 5466 405 359 383 344 4×240 SM 17.5 1.7 2.5 2.9 60.4 12672 6666 451 405 442 383 4×300 SM 19.6 1.8 2.5 3.1 65.7 15302 7795 497 451 461 422
Note:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
APPLICATION
Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.
CHARACTERISTICS
Voltage Rating (Uo/U) 600/1000V
Test Voltage 3.5kV Minimum
Bending Radius
15 x overall diameter
Maximum Operating Temperature +90°C
Maximum Short Circuit Temperature +250°C
Sheath Colour
Black
Note: Henan Hongda can produce flame-resistance, fire-resistance,termite-proof, low smoke free halogen, low flame low halogen etc. power cable as customer required.

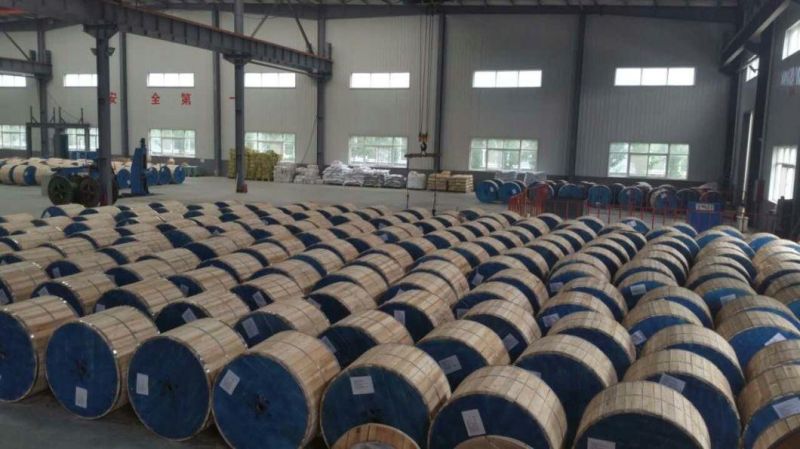

Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.
FAQ
1. Q: Are you the factory or the trading company?
A: We are the factory.
2. Q: How long is your guarantee Period?
A: We usually offer 1 year guarantee for our general products.
3. Q: How can I get the samples?
A: We can make the sample order. And usually you will charge for it.
But the samples fee will be return to you when you make the bulk order.
4. Q: Where is your factory? How can we visit your factory?
A: Our factory located in Jiaozuo city, Henan Province and our office is in Zhengzhou city. You could reach here by train and by air. We can pick you up in the airport and the railway station.
5. Q: What is your MOQ?
A: It`s base on the cable type or size. Please contact Ms. Melon. She will offer you the details.
Factory
Established in 2004, Henan Hongda Cable Co., Ltd, is dedicated into manufacturing various types of electric power wire and cable. Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Today, Henan Hongda has grown into an integrated system solution provider in electric power distribution industry, extending the business from power cable and electric wire manufacture to electric power distribution system design, and electric distribution system construction and installation.
Packing & Shipping
We provide you with the best product packaging design services, thereby allowing you to save more shipping charges.
Our Service
1. Design wire and cable according to your real application
2. Optimized reel size for freight cost saving
3. Customized package to feature your brand
4. Short lead time to meet your urgent demand
5. Diversified delivery terms for your options
6. Quick response (24 hours on line)
7. Professional knowledge for clear answer to your any question
8. Comprehensive technical documents to support your tender bidding
9. One-year limited warranty for our wire and cable
10. Cable sample available
11. Specify the cable only according to the location
12. OEM is available
13. Abundant cables and wires for your option
Contact Us
Henan Hongda Cable Co., Ltd http://zzhongdacable.en.made-in-china.com
Changping Road 3,Zhandian NewDistrict,Wuzhi County,Jiaozuo,Henan Province, China
Office Add: Room2108,Yaxing Times Square,Zhengzhou,Henan,China. P.C. 450000
************************************************************************************************
YJLV32
Note:RE=circular solid,CC=compacted circular stranded,SM=sector shaped stranded
APPLICATION
Can be used in underground installations since the cable is very suitable for mechanical compulsion and harsh operating conditions. Suitable for comparatively high ambient temperature due to high maximum permissible conductor temperature.
CHARACTERISTICS
Voltage Rating (Uo/U) 600/1000V
Test Voltage 3.5kV Minimum
Bending Radius
15 x overall diameter
Maximum Operating Temperature +90°C
Maximum Short Circuit Temperature +250°C
Sheath Colour
Black
Note: Henan Hongda can produce flame-resistance, fire-resistance,termite-proof, low smoke free halogen, low flame low halogen etc. power cable as customer required.
