• Model NO.：cvt cable
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：YJV
• Brand：Hongda Cable
• 600V CV：600V Cross-Linked Polyethylene Insulated Vinyl She
• Transport Package：Coil or Drum
• Specification：8mm2 - 600 mm2
• Trademark：Hongda cable
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：500000m,Month

Code: CV cable / XLPE insulated PVC sheath cableStandards: TS 9759 HD 21.4 S2, VDE 0250-204, BS 6004Construction: 1- Solid or Stranded Copper Conductor   2- XLPE insulation, 3- PVC sheathApplicationFixed wiring in dry and damp premises, in conduits, on or under plaster and on insulators over plaster, switching.Technical Data: Max. operating temperature 90 ºC Short circuit temperature 250 ºCManufacturer: Henan Hongda cable Co.,Ltd.

Features
Demand increases in place of low-pressure CV multi-core (collective sheath form).
We have features same as CV, but are superior to CV at allowable current, point of ease of terminal work.
Ground fault becomes hard to shift to short circuit accident between line.
Fire resistant cable (FD-CVD, FD-CVT, FD-CVQ) satisfying spread of fire-related examination (equal to IEEE Std. 383 perpendicular tray combustion examination) of JIS C 3521-resistant prepares

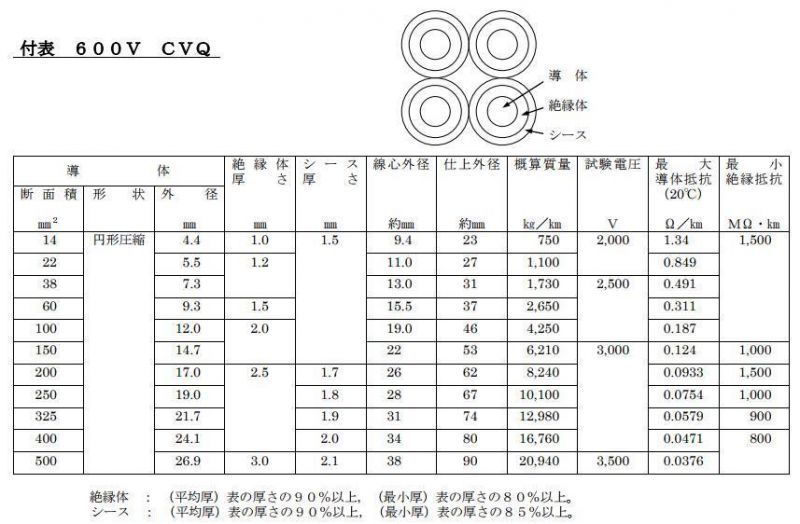

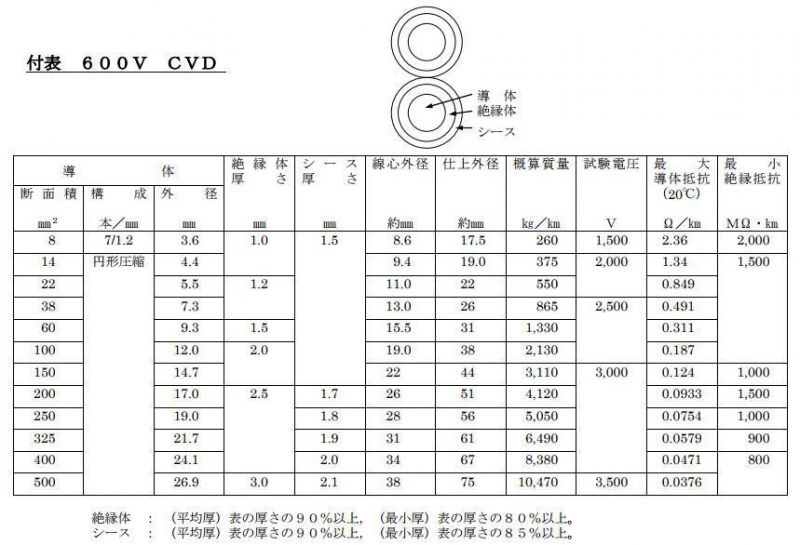

Type, name and scope

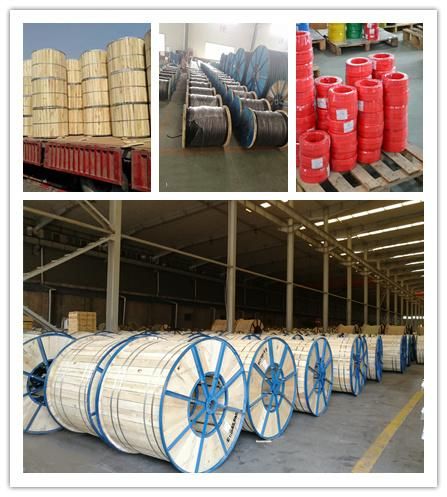

Packing:

*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Contact Details:
Vivian Yuan
HENAN HONGDA CABLE CO., LTD.
