• Certification：CE, ISO, RoHS
• Color：Green
• Inner Conductor：7*0.20mmcu
• Dielectric：3.70mm Spe
• Shield：80% CCA or 95% Cu
• Jacket：6.10mmpvc
• Export Length：100m,Roll, 305m,Drum,500m,Drum

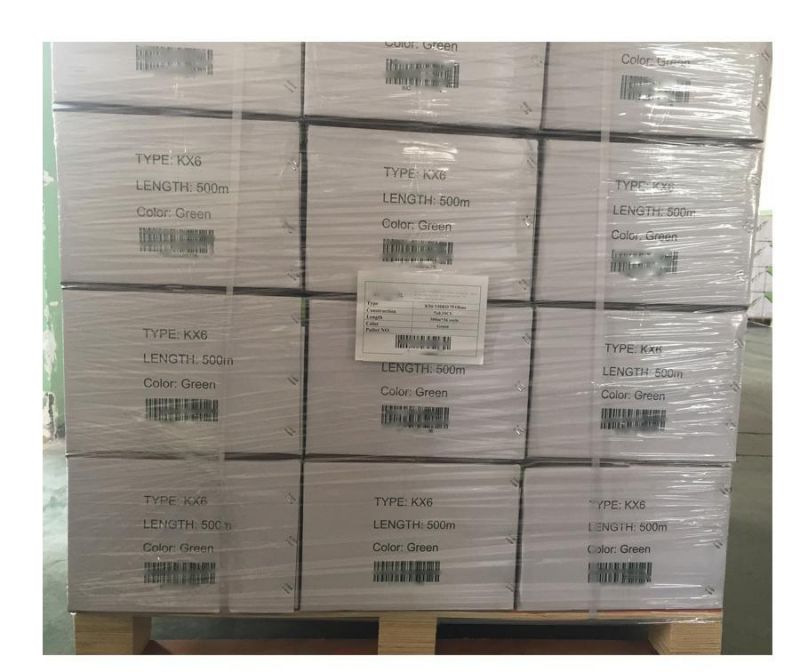

• Transport Package：Pull out Box, Carton Box, Pallet

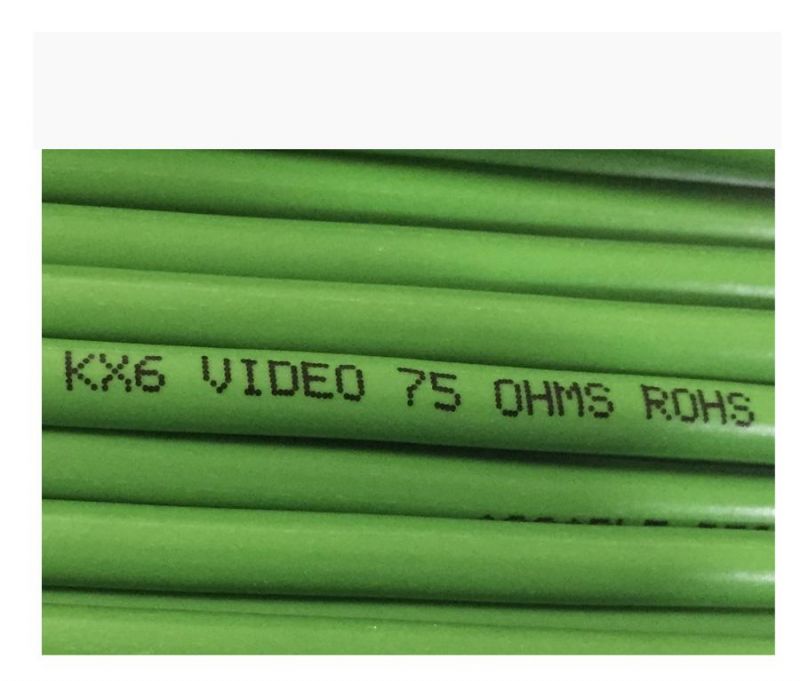

• Specification：KX6 Cable
• Trademark：Risun
• Origin：Zhejiang, China
• HS Code：8544491100
• Production Capacity：30000boxes,Month

Center   Conductor:
  7*0.2+0.01mm Solid CopperDielectric:  3.7+0.05mm Solid PEBradi Coverage:   35%-90% BC/CCAJacket:   6.15+0.05mm PVC /PEPowre Wires
  7*0.37CU/CCA+PE+PVCElectrical Performance:
Impedance:  75+3 OhmCapacitance:  50+3pF/kmVelocity of Propagation:  85%Conductor resistance Max:   Inner:16.8 ohms/km
  Outer:26 ohms/km
Return Loss:  20dB min (5-2150MHz)
Attenuation
 [@68o F. (20o C.)]  Frequency (MHz) Maximum (dB/100 ft.) Maximum (dB/100 m)   5 0.46 1.5 50 1.31 4.3 100 1.80 5.9 200 2.56 8.4 400 3.66 12.0 800 5.34 17.5 862 5.58 18.3 950 5.86 19.2 1350 7.11 23.3 1750 8.24 27.0 2150 9.33 30.6 3000 11.22 36.8

FAQ

Q1. ARE YOU TRADING COMPANY OR MANUFACTURER?

A: We are factory.


Q2. HOW LONG IS YOUR DELIVERY TIME?

A:Generally it is  5-10 days, or it is 20-30 days if the goods are not in stock,its is according to quantity.


Q3. DO YOU HAVE ANY MOQ LIMIT FOR ORDER?

A: Normally, 10kms per one specification and one color


Q4. DO YOU PROVIDE SAMPLES? IS IT FREE OR EXTRA?A: Yes,we welcome sample order to test and check quality.we could offer the sample for free charge but do not pay freight.


Q5. HOW TO PROCEED AN ORDER FOR CABLES?

A: Firstly let us know your requirements or application.
    Secondly We quote according to your requirements or our suggestions.
    Thirdly customer confirms the samples and places deposit for formal order.
    Fourthly We arrange the production.


Q6.IS IT OK TO PRINT MY LOGO ON CABLES ?
A: Yes. Please inform us formally before our production.

Q7. WHAT IS YOUR TERMS OF PAYMENT?
A: Payment<=60km,100% in advance,payment >=60KM,30%TT in advance ,balance before shipment .

            WELCOME TO RISUN!!!
