Skycom Core to Core Fusion Splicer Model T-207X
Nanjing Tianxingtong Electronic Technology Co., Ltd.- Type：Fiber Splicer
- Certification：CE, ISO
- Applicable Fibers：Sm, Mm, Nz-Ds, Edf, Pigtail, Rubber-Insulated Wire
- Transport Package：CTN, Hard Carrying Case
- Specification：35cm(W)*40cm(H)*50cm(L)
- Trademark：SKYCOM
Base Info
- Model NO.：T-207X
- Origin：Nanjing, China
- HS Code：8515809090
- Production Capacity：500PCS,Month
Description
Basic Info.
Model NO. T-207X Origin Nanjing, China HS Code 8515809090 Production Capacity 500PCS/MonthProduct Description

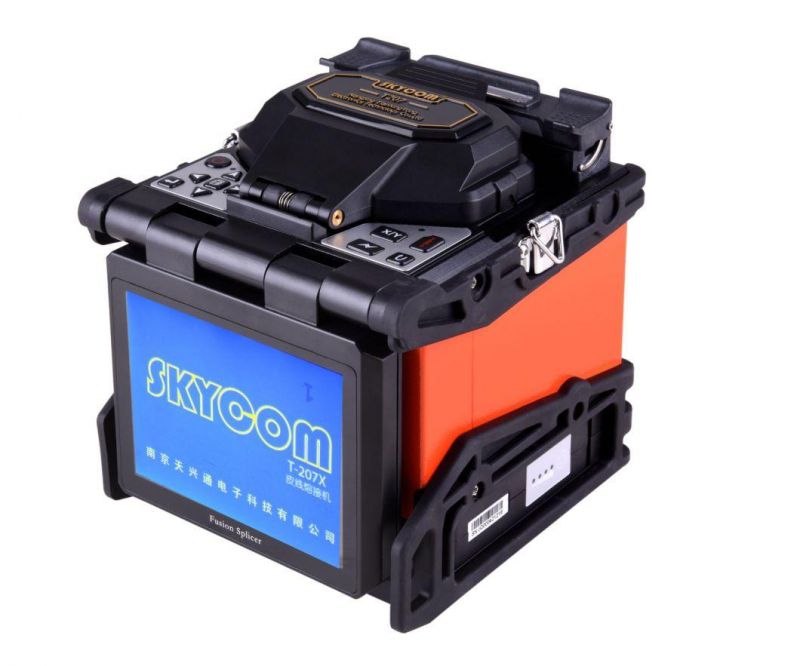

Skycom Core to Core Fusion Splicer Model T-207X
CE, SGS, ISO9001, 5 patents for utility model
Description
> Fusion splicer is used for joining two optical fibers end-to-end using heat, to fuse the two fibers together in such a way that light passing through the fibers is not scattered or reflected back by the splice, and so that the splice and the region surrounding it are almost as strong as the virgin fiber itself.
> We has been dedicated to R & D, manufacturing fusion splicer from 2010, and successfully obtained 5 patents for the fusion slicer research. SKYCOM T-207 is our latest developed product. It is more concise and smaller in size and has obtained 2 patents for its new technologies.
Key Features
> 5 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 8 seconds
> Average tube-heat time: 25 seconds
> Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
> X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
> Cutting-edge technology for image processing
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Storing 6,000 groups of latest splice results
> New technology of fiber core alignment, enhanced accuracy
> New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
> New Multipurpose 1+N fixture (Patented technology)
* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) & optional fixtures ( for SC/LC/FC connector - T-207XF).
Specifications
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |
| Average Splice Loss | 0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF) |
| Return Loss | ≥60dB |
| Tension Test | 2.0N(200gf)(Standard) |
| Typical splicing time | 9 seconds |
| Typical heating time | 25 seconds |
| Splicing Program | 50 groups |
| Protection Sleeve Length | 20mm, 40mm, 60mm |
| Operating Language | Chinese, English, French, Portuguese, Spanish |
| Operating Conditions | -10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude) |
| Power Supply | AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH |
| Monitor | 5 inches high resolution colorful LCD display |
| Fiber Image Magnification | X or Y axis Separately views 400 times magnification, or Simultaneously 220 times |
| Storage of Splice Result | 6,000 groups of latest splice results |
| Splicing Model | Auto & Manual & Full Auto |
| Optical Fiber Fixture | 3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207XF, for SC/LC/FC connector) |
| Dimensions | 130(W)*135(D)*130(H)mm; Package size: 53*32*30cm |
| Weight | 2.11kg+0.38kg (battery weight)=2.49kg; Package G.W.: 7.63kg |
| Applicable Fibers | SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function) |

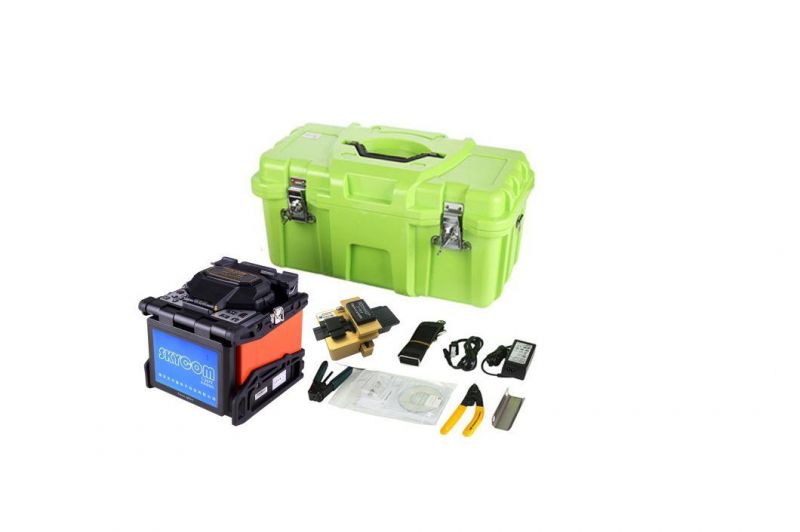

Standard Package
| Machine T-207X | 1 |
| Fiber Cleaver | 1 |
| Fiber Stripper | 1 |
| Battery | 1 |
| Charger | 1 |
| Spare Electrodes | 1 |
| Cooling Tray | 1 |
| Instruction CD | 1 |
| Quick Reference Guide | 1 |
| Rubber-insulated wire strippers | 1 |
| Transit case with Carrying strap | 1 |
*Custom-made Professional anti-shock tool kit (case) with sponge inside *Export-standard Carton Box with PE Foam inside (53*32*30cm, 7.63kg)

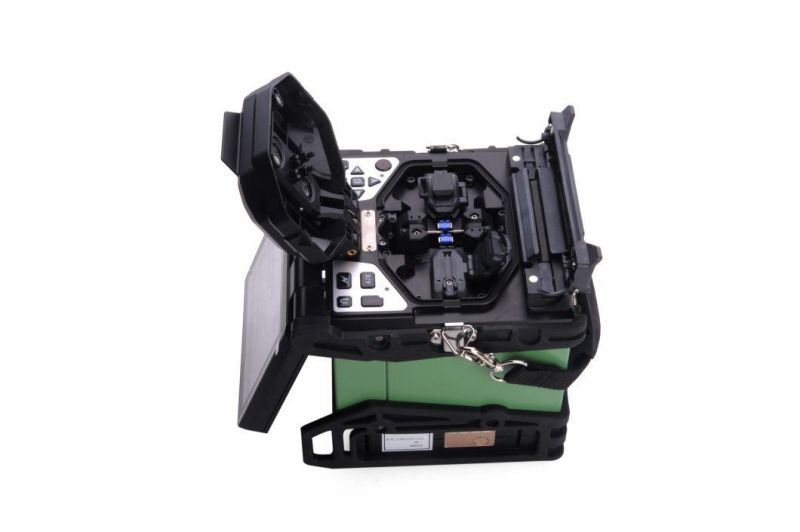

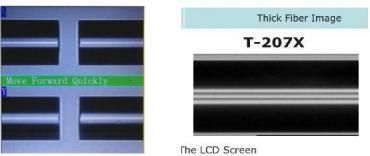

Pictures Splicing Interface 207X
