GYFTY-G Loose Tube Single Jacket All Dielectric Fiberglass Yarn Reinforced 12 Core Fibra Optical Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Communication
- Type：Multi-mode Fiber
- Connection Structure：Non
- Material Shape：Round Wire
- Allowed Lateral Pressure：100(N,100mm)<1000(N,100mm)
- Allowed Tensile Strength：1000N<10000N
Base Info
- Model NO.：fiber optical cable
- Core：Multicore
- Certification：RoHS, CE, ISO9001
- Brand：OEM
- Sheath Material：PVC
- Fiber Type：G.652D
- Transport Package：6000m Wooden
- Specification：Gel-filled
- Trademark：OEM
- Origin：Made in China
- Production Capacity：1000km,Month

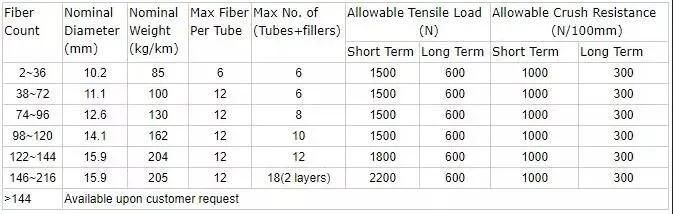

Description
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Max Fiber
Per Tube
Max No. of
(Tubes+fillers)
Allowable Tensile Load
(N)
Allowable Crush Resistance
(N/100mm)
Short Term
Long Term
Short Term
Long Term
2~36
10.2
85
6
6
1500
600
1000
300
38~72
11.1
100
12
6
1500
600
1000
300
74~96
12.6
130
12
8
1500
600
1000
300
98~120
14.1
162
12
10
1500
600
1000
300
122~144
15.9
204
12
12
1800
600
1000
300
146~216
15.9
205
12
18(2 layers)
2200
600
1000
300
>144
Available upon customer request
Structure and Technical Specifications GYFTY-G (Yarn)
Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact our sales people for more detailed information.
