• Model NO.：GYTS53 GYTA53 Cable
• Certification：RoHS, UL, CE, ISO9001
• Brand：OEM
• Sheath Material：MDPE , HDPE , LSZH PE
• Fiber Account：2-216cores
• Loose Tube Material：PBT
• Central Strength Member：Steel Wire or FRP
• Single Armour Material：Corrugated Steel Tape
• Core Moisture Protection Methodology：Water Blocking Tape or Filling Compound
• Keywords1：GYTS,A53
• Keywords3：GYTS,A53 Cable
• Keywords2：Fiber Optic GYTS,A53 Cable
• Keywords4：Fiber GYTS,A53 Cable
• Transport Package：Wooden Drum or as Customized.
• Trademark：YDA
• Origin：Ningbo, China
• HS Code：85447000
• Production Capacity：400, 000metres,Month

Basic Info.

Model NO. GYTS53 GYTA53 Cable Certification RoHS, UL, CE, ISO9001 Brand OEM Sheath Material MDPE / HDPE / LSZH PE Fiber Account 2-216cores Loose Tube Material PBT Central Strength Member Steel Wire or FRP Single Armour Material Corrugated Steel Tape Core Moisture Protection Methodology Water Blocking Tape or Filling Compound Keywords1 GYTS/A53 Keywords3 GYTS/A53 Cable Keywords2 Fiber Optic GYTS/A53 Cable Keywords4 Fiber GYTS/A53 Cable Transport Package Wooden Drum or as Customized. Trademark YDA Origin Ningbo, China HS Code 85447000 Production Capacity 400, 000metres/Month

Product Description

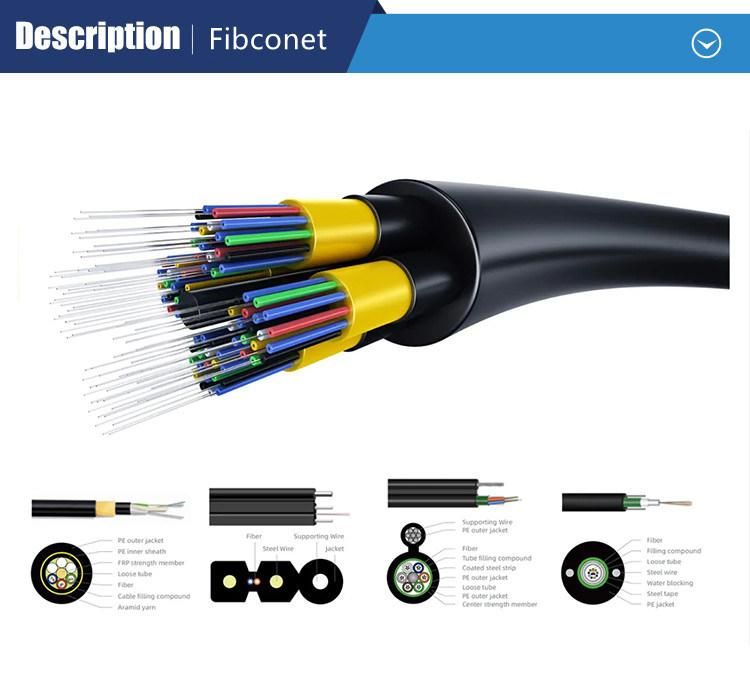

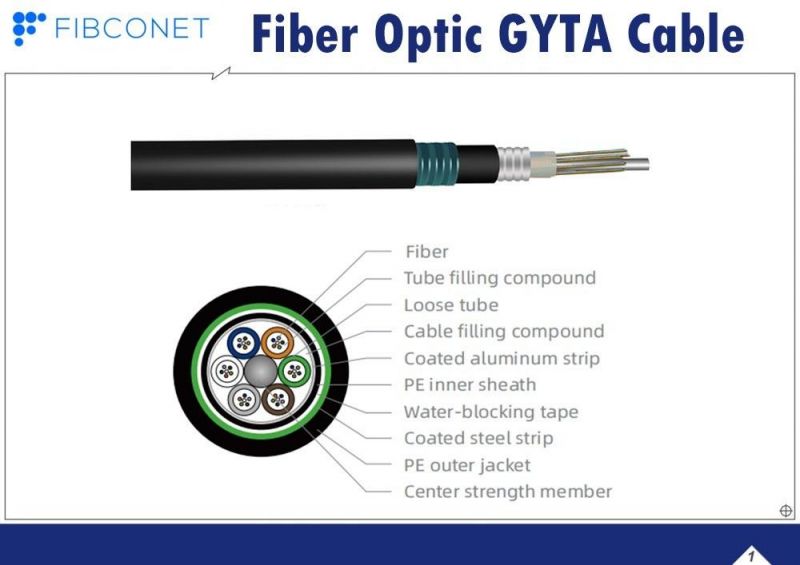

FTTH Outdoor 2-216 Core Single-Mode Fiber Optic GYTS GYTA GYTS53 GYTA53 Cable Stranded Double Jackets Armored Cable

Stranded Double Jackets Armored Cable is loose tube stranded. 200um or 250um fiber , is positioned into a loose tube which made of high modulus plastics. The tubes are filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core. After the cable core is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath. After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath.

APPLICATIONS

· Distribution cable
· Indoor cabling, for FTTx
· Data center
· Multi cores pigtails and patchcords, upto 48 cores per cable

FEATURE

· Good mechanical and environmental characteristics.
· Flame retardant characteristics.
· Excellent mechanical characteristics.
· Soft, flexible, easy to installation.
· Meets international standards.

SPECIFICATION OF GYTS GYTA GYTS53 GYTA53 CABLE

Cable Type	Fiber Count	Loose tube count	Filler count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength  Long/short term       N	Crush Resistance Long/short term    N/100m	Bending Radius Static/dynamic       mm
GYTA53-2~6	2~6	1	4	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-8~12	8~12	2	3	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-14~18	14~18	3	2	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-20~24	20~24	4	1	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-26~30	26~30	5	0	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-32~36	32~36	5	0	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-38~48	38~48	5	0	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-50~60	50~60	5	0	12.5	175	1000/3000	1000/3000	15D/30D
GYTA53-62~72	62~72	6	0	13.2	200	1000/3000	1000/3000	15D/30D
GYTA53-74~84	74~84	7	1	15	230	1000/3000	1000/3000	15D/30D
GYTA53-86~96	86~96	8	0	15	230	1000/3000	1000/3000	15D/30D
GYTA53-98~108	98~108	9	1	16	260	1000/3000	1000/3000	15D/30D
GYTA53-110~120	110~120	10	0	16	260	1000/3000	1000/3000	15D/30D
GYTA53-122~132	122~132	11	1	18	300	1000/3000	1000/3000	15D/30D
GYTA53-130~144	134~144	12	0	18	330	1000/3000	1000/3000	15D/30D
GYTY53-146~216	146~216	18	0	18	330	1000/3000	1000/3000	15D/30D

FAQ

1. Are you a manufacturer or trade company?

We are the manufacturer with nearly 20 years' history.

2. What is your fiber brand ?

Our fiber brand include : YOFC, Corning, Fiber Home, J-fiber, POFC

3. What is your main product ?

Our main product is Fiber Optic Connector, Fiber Optic Adapter, Fiber Optic Attenuator, Fiber Optic Patch Cord and Fiber Terminal Box, except that, we have very good prices for part of fiber tools!

4. How can we place order?

After we made agreement on the product parameters, we will make proforma invoice for your confirmation, when we got your advance payment (deposit) we will arrange the production and delivery. If you have your own ship forwarder, we will use your ship forwarder to delivery goods; if you don't have ship forwarder, we can ship them by our agent shipping company which can offer very competitive freight cost!

5. What is the quality for your product?

All of our product are with high quality, we promise 100% recall policy if they are unqualified, we can write it into our contract!

6. How do you arrange the shipping?

Solution A:  FIBCONET take care of everything.  Clients only need to collect cargo in local or wait cargo delivery to their office. There are two types of shipping methods available, by sea and by air (Express courier - FedEx/ DHL/UPS/TNT/EMS, we can ship them according to your express account or ship them by our agent company, the delivery time is about four days).
Solution B:  Clients assign a Shenzhen logistic company to do the shipping, FIBCONET follow the company's instructions and finish the shipping.

7. How can you guarantee the delivery time?

 1. To avoid the delay, we have built a complete and professional procedure system from production to the deliver and have rich experience. We can regulate the penalty clause in the contract for the late delay.

8. What's your best price for your passive fiber optic product?

 Based on the quality of our products and the quantity of your estimated. We would quote the great best matching price all the time.

9. What is your quality control for your fiber optic product ?

1. Source Guarantee. We have our own long-term cooperation raw material suppliers. All the products are ROHS certificated and satisfy exporting quality level demand.
2. Quality Test. It runs through the whole process from the raw material to finished product, such as package, surface, physical test, optical test. They are 100% tested.
3. Optical Test. Our products are strictly tested in accordance with IEC and ITU standard.
4. We have 30% spot test by Quality Assurance Department after the products finished.

 10. Why choose FIBCONET Fiber Optic to cooperate?

1.  We have first-class production line and strict quality management system.
2.  We have professional procedure system and big production capacity to guarantee fast delivery and on time shipment.
3.  We can provide the most competitive price to meet your budget.
4.  We also design and innovate the new products based on our rich experience .
5.  We have professional team to provide comprehensive one-stop service for you.

Please always feel free to contact us for any questions, it's our honor to be on service of you
Features!
