Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

Shenzhen Okerda Technology Co., Ltd.
  • Insulation Level：F
  • Certification：ISO9001, CE, UL, CCC, RoHS, VDE
  • Brand：Okd
  • Application：Transformer, Instrument, Electrical Equipment, Motor
  • Shape：Round Wire
  • Conductor Material：Copper Wire

Base Info

  • Model NO.：R04-160
  • Wire Type：Round Litz Wire
  • Insulation Shield：ETFE, FEP, PFA
  • Insulation Option：Voltage Standoff, Winding Protection
  • Covering Material：Textile, Tapes, Extrusion
  • Temperature Rating：155ºC~200ºC
  • Transport Package：Foam Box,Carton,Wooden Drum,Wooden Pallet or Negot
  • Specification：Litz wire
  • Trademark：OEM
  • Origin：China
  • HS Code：8544110000
  • Production Capacity：20000 Tons,Month

Description

Basic Info.

Model NO. R04-160 Wire Type Round Litz Wire Insulation Shield ETFE, FEP, PFA Insulation Option Voltage Standoff, Winding Protection Covering Material Textile, Tapes, Extrusion Temperature Rating 155ºC~200ºC Transport Package Foam Box/Carton/Wooden Drum/Wooden Pallet or Negot Specification Litz wire Trademark OEM Origin China HS Code 8544110000 Production Capacity 20000 Tons/Month

Product Description

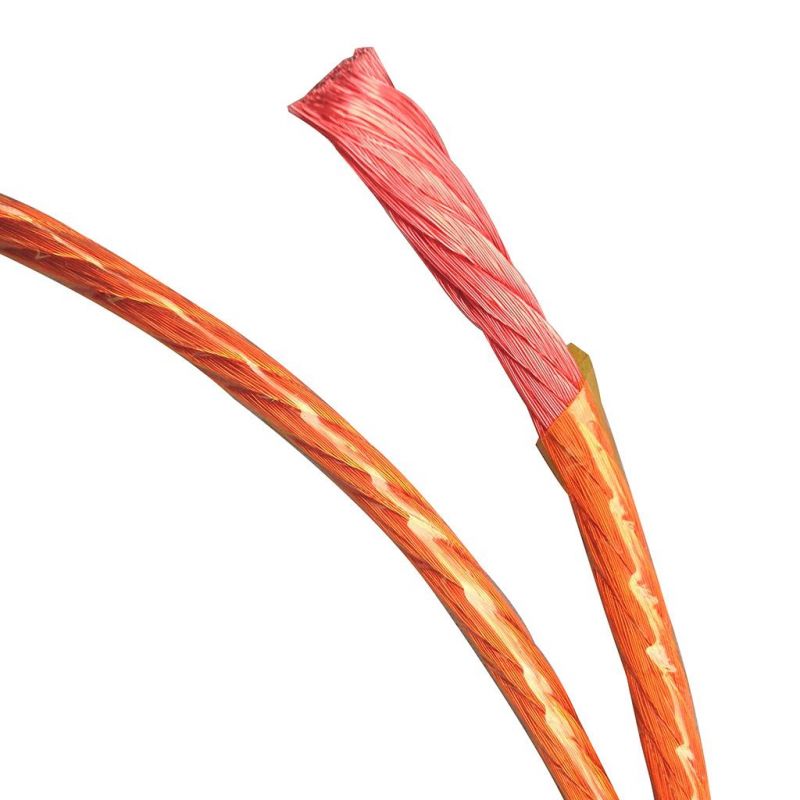

Custom designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

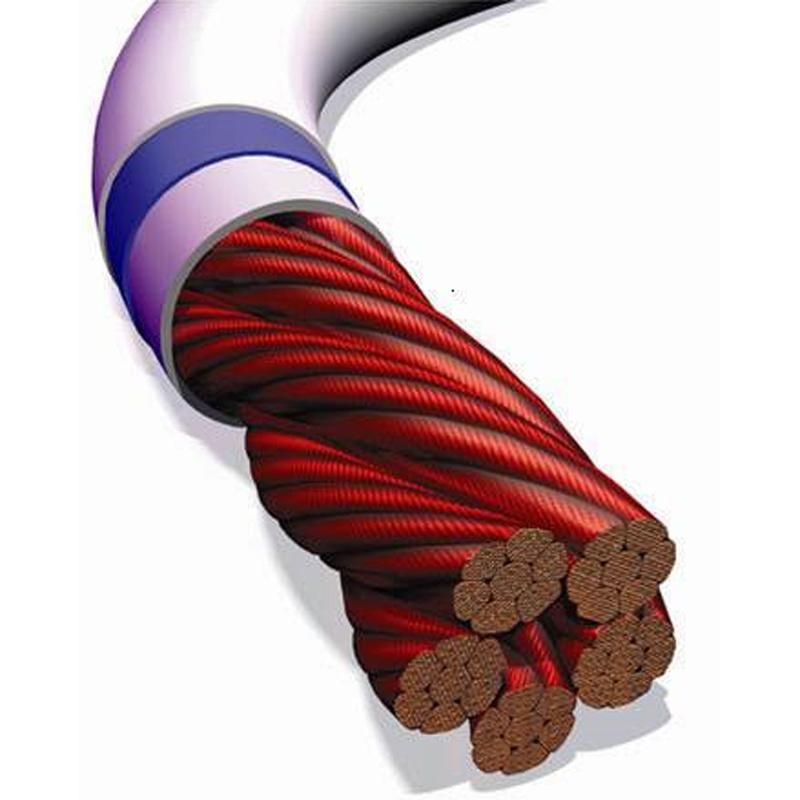

Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled WireBenefits of Litz wire
*Increase efficiency
*Mitigation of skin and proximity effect
*Minimum eddy current losses
*Lowered operating temperatures
*Reduced footprint of final product
*Substantial weight reduction

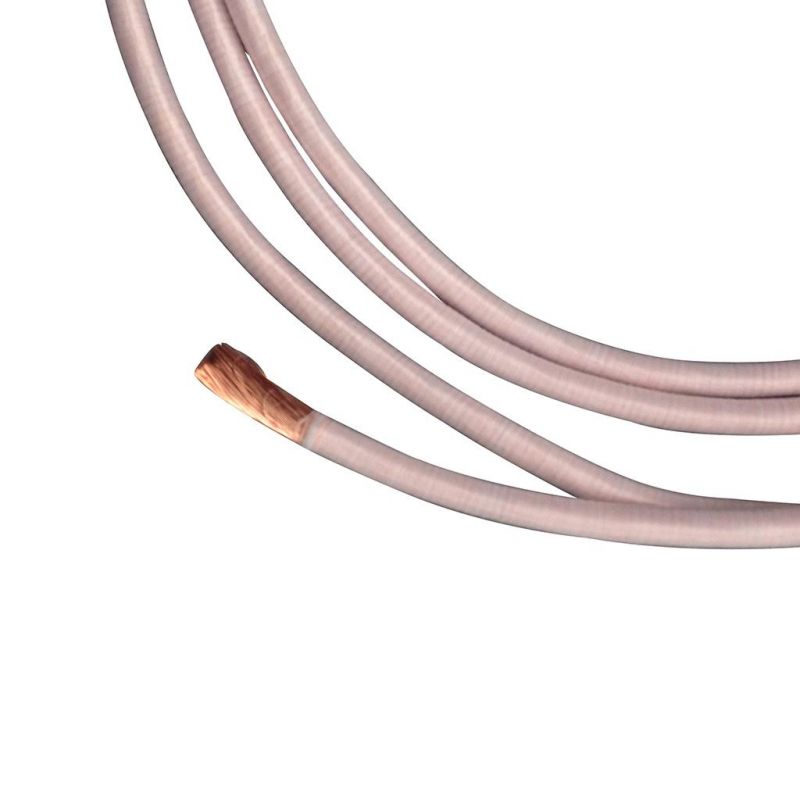

Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

Features:
1. Litz wire is more flexible and better anti-bending performance compare with solid wire.
2. Litz wire can reduce skin-effect, increase current density, reduce heat producing.
3. The diameter of strand may be selected depend on the frequency of application.
4. High insulating grade, excellent heat radiation and durability.

Application:
1. Transformer, inductor, inverter;
2. Instrument, magnetic components;
3. Electrical equipment, medical equipment;
4. Motor, Vibration Motor;
5. Voice Coil, Buzzer;
6. Local Communication Cable, Coaxial Cable, Long Distance Symmetric Cable, RF Cable, Submarine Cable;

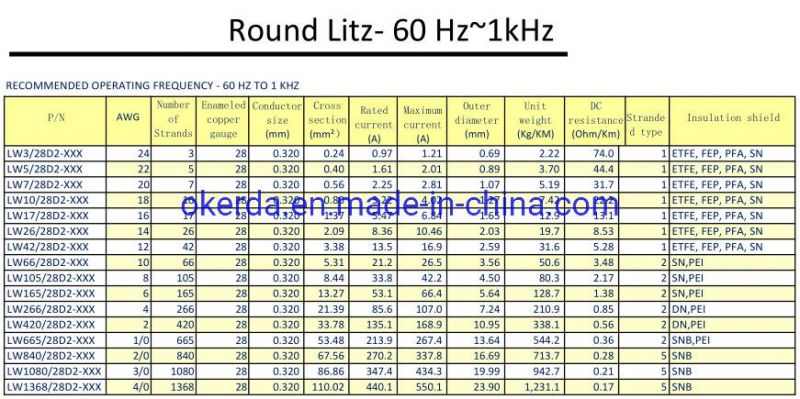

Operating frequency
Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

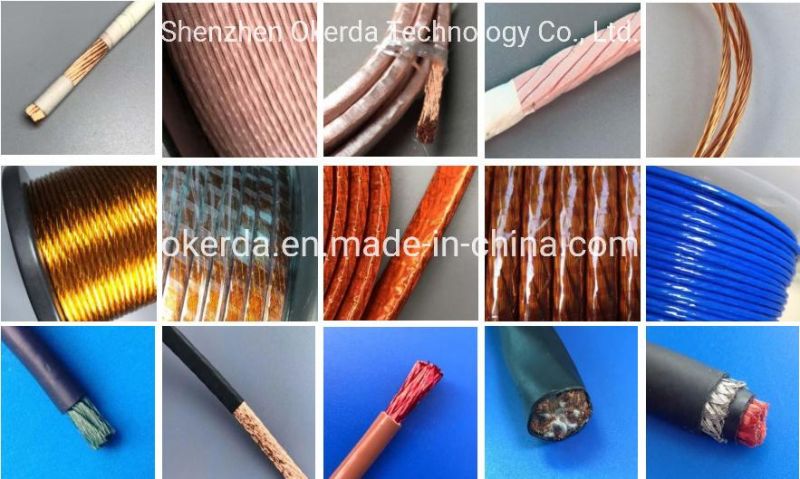

Related Products
Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled WireCustom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

Packing
1) Inner packing: min order in PE film or plastic/wood spool, larger order in wooden drum;
2) Outer packing: wooden case and wooden pallet;
3) Other packing available according to customers' special requirements.

Custom Designed Round Litz Wire 0.1mm 0.4mm 0.6mm Enameled Wire

Okerda is a professional supplier for Litz wire. All the wire can be produced according to industry standards such as IEC, NEMA, JIS or to customer specific requirements. Litz wire is widely used in consumer electronics, telecommunication, automotive, new energy, IT industry and medical equipment.
