50ohm 5D-Fb RF Coaixal Cable for Cellphone Signal Booster
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Material Shape：Round Wire
- Conductor Type：Solid
- Wire Core Material：Bare Copper Wire
Base Info
- Model NO.：5d-fb
- Certification：CE, ISO, RoHS
- Cable Conductor：1.80mm
- Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Specification：305m,roll
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description
RF Coaxial CableTYPE: 5D-FB Construction Item Material Diameter(mm) Center Conductor Copper Clad Aluminum/BC 1.80 Dielectric Foam PE 5.00 1st Shield Bonded Aluminum Foil 5.20 2nd Shield Tinned Copper Wire Braiding
70% / Jacket PVC/PE 7.50 Electrical Charateristics Impedance(Ω) 50±3 Capacitance(pF/m) 82±2 Velocity of Propagation(%) 82.0 Shielding Effectiveness 5-1000MHZ(dB) ≥85% VSWR ≤1.3 Return Loss ≥20 Min.Bending Radius(mm) 35.0 Operating Temp(ºC) -25 to + 70ºC Dielectric Strength(KV) 1.6 Attenuation @68°F.(20 ºC ) @Frequency(Mhz) Max Attenuation(dB/100ft) Max Attenuation(dB/100m) 150 2.4 7.8 280 3.3 10.9 350 3.7 12.2 400 4.0 13.0 800 5.8 18.9 900 6.1 20.0 1200 7.3 24.0 1500 8.3 27.2 1800 9.1 29.7 1900 9.5 31.3 2200 10.1 33.3 2500 10.9 35.8 3000 12.5 40.9
Our Service:
1) Quick Response --All inquiries will be replied within 24 hours.
2) Professional Quotation --All prices will be quote according to customers' detailed
specifications & requirements.
3) OEM & ODM Service
4) Can print your own brand on the jacket printing with foot or meter marking.
5) Make customized designs for stickers, drums, outer cartons, etc.
6) Stable Quality --All materials and products passed restrict QC procedures,comply with
international standards.
7) Fast Delivery --LCL orders,15days after confirmation; FCL orders, 20 days after
Confirmation in usual.
Good After-sales Service
--We chose the fastest vessel to POD for delivery our goods to clients,
--All Documents will be issued according to clients' instructions, to save troubles from local customs.
--Any complaint to quality or packing issued will be responded, and terminated with proper solutions for clients.
FAQ:
Q1: What kind of cable do you produce?
A: We specialized in producing Coaxial Cable,Network Cable,Patch Cord,CCTV Cable,Optical Fiber Cable, Speaker Cable,Alarm Cable,Telephone Cable,Drop Wire,Audio Cable,HDMI Cable,Control Cable etc
We also provide cable accessory products such as connector, cable clip,cable tie,crimping tool, antenna dishe,splitters,amplifer,optical receiver,optical transmitter etc
Q2: What's your MOQ? Can you offer free samples?
A: Our MOQ is 10KM per item. Free samples can be sent to you if available in stock,freight cost need to be paid by your side.
Q3: What's your delivery time?
A: Normally, our delivery time is 15 days after received deposit,it base on the quantity of the order.
Q4: What's your payment term?
A: We accept T/T, L/C,Western Union.Other payments accept through negotiation.
Q5:What's your trade term?
A: We accept FOB ShangHai or Ningbo,CFR,CIF,EXW term
Q6: Where is your factory located? How can I visit there?
A: Our factory is located in Lin'An HangZhou City,ZheJiang Province,China.
1 hour drive from HangZhou XiaoShan International Airport
3 hours drive or 1 and half an hour by high speed rail to railway station from shanghai or Ningbo
70%
RS Coaxial Cable Specification is accordingly to Commscope/Belden/TFC Standard,control cable quality during production.

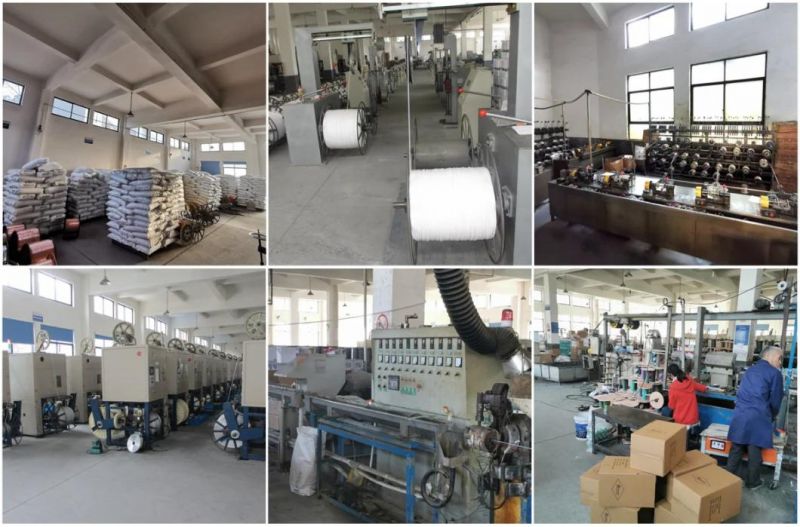

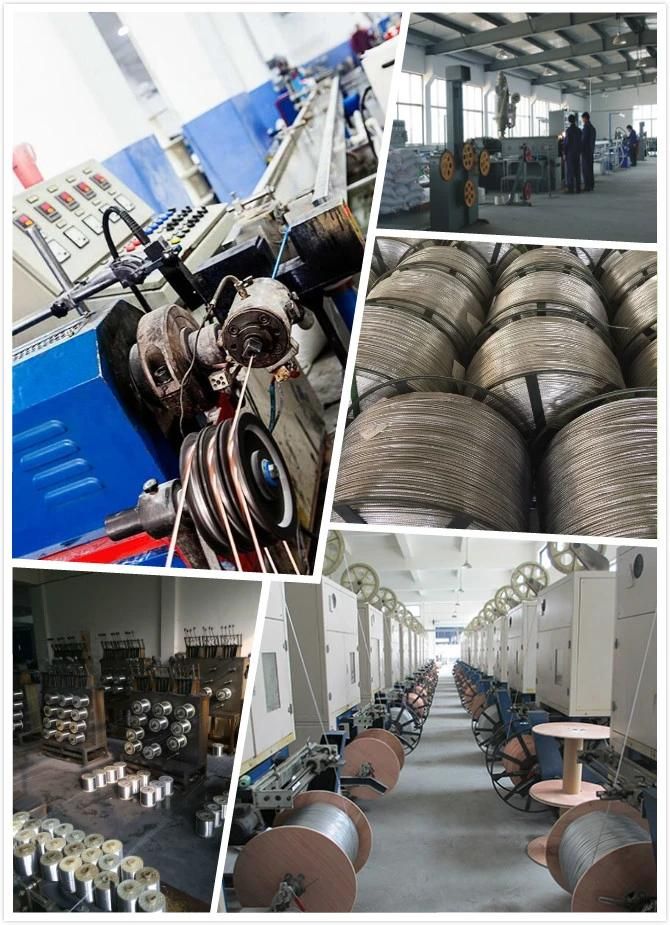

Factory photos and production processOur Service:
