450c Mgt Flexing Oil Resistant Lead Wire
Yangzhou Fongming Cable Factory- Type:Insulated
- Conductor Type:Stranded
- Application:Heating
- Conductor Material:27%Nickel Copper, Pure Nickel
- Sheath Material:Fiberglass
- Insulation Material:Mica
Base Info
- Model NO.:MGT wire
- Material Shape:Round Wire
- Range of Application:Heating
- Certification:ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement
- Brand:Fongming
- Name:450c Mgt Flexing Oil Resistant Lead Wire
- Conductor:Nickel, Nickel Copper
- Insulation:Mica Tape
- Jacket:Fiberglass with High Temperature Finish
- Size:26~4AWG
- Rated Temperature:600V
- Rated Voltage:450 Degree
- Certified:UL Ce RoHS
- Transport Package:Cartons and Pallet
- Specification:AS CUSTOMER REQUIREMENT
- Trademark:FONGMING
- Origin:Yangzhou China
- HS Code:8544492100
- Production Capacity:100000000meters Per Month
Description
Basic Info.
Model NO. MGT wire Material Shape Round Wire Range of Application Heating Certification ISO9001, CE, UL, CCC, RoHS, VDE, According to The Customers′ Requirement Brand Fongming Name 450c Mgt Flexing Oil Resistant Lead Wire Conductor Nickel, Nickel Copper Insulation Mica Tape Jacket Fiberglass with High Temperature Finish Size 26~4AWG Rated Temperature 600V Rated Voltage 450 Degree Certified UL Ce RoHS Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
ProductDescription
Name:High Temperature Resistance Wire
Size:0.14-25.0mm2
Feature
Ratings Voltage:600V
Rated temperature:450ºC

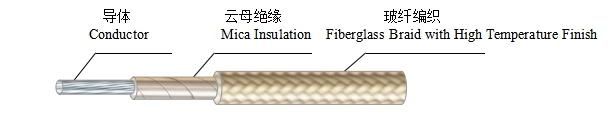

Structure
Conductor: Nickel Plated Copper27%
Insulation:Mica tape ,
Jacket:Fiberglass Braid with High Temperature Finish
Size mm2 | Conductor Structure | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Braid Thickness (mm) | Diameter (mm) |
0.14 | 7/0.16 | 0.48 | 0.45 | 1.38 | 0.2 | 1.8±0.1 |
0.22 | 7/0.2 | 0.6 | 0.45 | 1.5 | 0.2 | 1.9±0.1 |
0.25 | 7/0.23 | 0.69 | 0.45 | 1.59 | 0.2 | 2.0±0.1 |
0.5 | 16/0.2 | 0.92 | 0.45 | 1.82 | 0.2 | 2.2±0.1 |
0.75 | 24/0.2 | 1.13 | 0.45 | 2.03 | 0.2 | 2.4±0.1 |
1.0 | 32/0.2 | 1.31 | 0.45 | 2.21 | 0.2 | 2.6±0.1 |
1.5 | 30/0.254 | 1.58 | 0.45 | 2.48 | 0.2 | 2.9±0.1 |
2.0 | 40/0.254 | 1.83 | 0.45 | 2.73 | 0.2 | 3.1±0.2 |
2.5 | 50/0.254 | 2.04 | 0.45 | 2.94 | 0.2 | 3.3±0.2 |
4.0 | 34/0.39 | 2.62 | 0.45 | 3.52 | 0.2 | 3.9±0.2 |
6.0 | 50/0.39 | 3.18 | 0.69 | 4.56 | 0.25 | 5.1±0.3 |
10.0 | 84/0.39 | 4.13 | 0.69 | 5.51 | 0.25 | 6.0±0.3 |
16.0 | 133/0.39 | 5.70 | 0.69 | 7.08 | 0.25 | 7.6±0.5 |
25.0 | 210/0.39 | 7.15 | 0.69 | 8.53 | 0.25 | 9.0±0.5 |
Certificates
Transport & Payment
Packing: 305m per roll or spool, carton packing or add wooden pads.
Shipping: tansport bysea or by air.
As the customers requirements.
Port: Shanghai Port, Ningbo Port, Lianyungang Port, ShenZhen port.
Company Information
Yangzhou Fongming Cable Factory, located in BaoYing, North of YangZhou, which is a historical, cultural and celebrated city in China, is a professional manufacturer producinguniversal and special Cables& Wires including UL High Temperature Wires, Multi-layers Fiber Glass Braided Wires, PTFE trapped Wires, Automobile Sensor Cables, HID Cables, High Voltage Wires for Auto etc.
We have gained certificates for China Compulsory Product Certification(CCC), ISO9001International Quality System Certification , American UL , SGS and CTi. With an experienced and professional team, our products have been covered to many regions in China and mainly exported to European and American Markets.
Factory Size (Sq.meters): | 45,000-50,000 square meters |
Factory Location: | Industrial Avenue,Industrial Center,Xiaji Town Baoying Country ,Yangzhou Jiangsu,China |
Number of Production Lines: | 20 |
Number of R&D Staff: | 21 - 30 People |
Number of QC Staff: | 21 - 30 People |
Contract Manufacturing: | OEM Service Offered Design Service Offered Buyer Label Offered |
Hot Sale
FAQ
1. Why the price is so low?
You are ordering directly from the factory.
2.Where is your factory located? How can I visit there?
Our factory is located in Yangzhou City, Jiangsu Province, China,which is near Shanghai. All our clients, from home or abroad, are warmly welcomed to visit us.
3.Can I get some samples?
Yes, we are honored to offer you samples.
4. Can you make the products with my design?
Yes. customization is welcome .
