0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Underground, Industrial, Power Station
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：Cable AXMK AXPK
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC
  • Model：Al,XLPE,PVC
  • Brand：OEM
  • Packaging：Wooden Drum
  • Transport Package：Wooden Drum
  • Specification：4 Core x 240mm2
  • Trademark：OEM
  • Origin：China(Mainland)
  • HS Code：8544492100
  • Production Capacity：50 Kilometer,Month

Description

Working Voltage600/1000 voltsTest voltage4000 voltsMinimum bending radius6 x OOperation temperature range-15°C to 90°CShort-circuit temperature250°CFlame retardantNF C 32-070 C2Insulation resistance20 MΩ x km

Application and Description

In earth, ducts, on support brackets, in dry and wet conditions etc., where one does not expect mechanical damages and the cables are not exposed to the mechanical tensile strain. In urban networks, industrial plants, electric power plants and other electricity consumers and for connection of control devices in industry, traffic etc.

  Standard and Approval

  • NF C 32-321
  • EN 60332-1/NF C 32-070

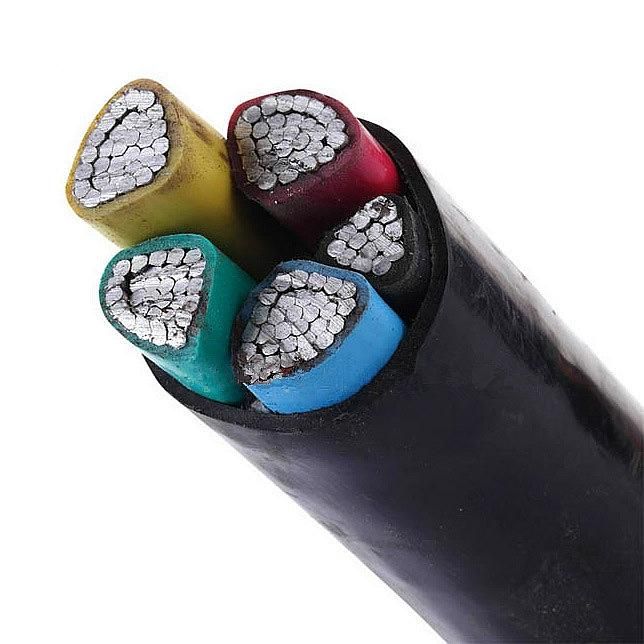

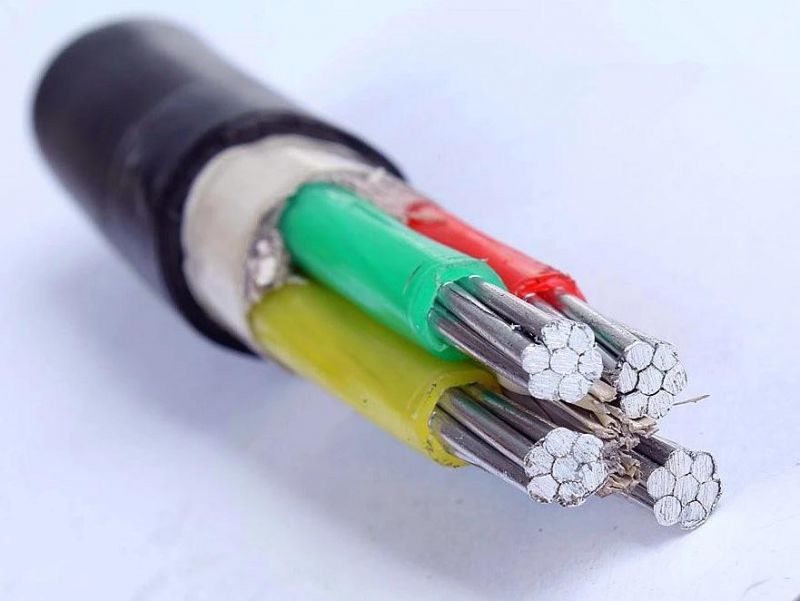

  Cable Construction



annealed aluminum strandsStandard to HD 603 S1, SFS 4879XLPE insulation Not fibrous and not hygroscopic fillerBlack PVC outer jacket( AXMK ) PE out jacket ( AXPK)


0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240

Technical Characteristics

Working Voltage600/1000 voltsTest voltage4000 voltsMinimum bending radius6 x OOperation temperature range-15°C to 90°CShort-circuit temperature250°CFlame retardantNF C 32-070 C2Insulation resistance20 MΩ x km

0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240

Cable Parameter

Nominal cross-sectionConductor constructionMax. Resistance at 20°CCurrent capacity in airCurrent capacity in earthOuter diam. (approx.)mm2 Ω/kmAAmm1x16RE1,910--9,51x25RE1,20010611411,01x35RM0,86813013612,11x50RM0,64116116213,61x70RM0,44320419915,21x95RM0,32025223816,81x120RM0,25329527218,41x150RM0,20633930520,21x185RM0,16439534722,11x240RM0,12547240424,51x300RM1,8054745726,74x16RE1,910--18,34x25SM1,20010211221,14x35SM0,86812613523,44x50SM0,64114915826,44x70SM0,44319119630,44x95SM0,32023423434,14x120SM0,25327326838,14x150SM0,20631130042,14x185SM0,16436034246,64x240SM0,12542739852,24x300SM0,10050745755,95x10RE3,080--17,85x16RE1,910--20,05x25SM1,20010211222,95x35SM0,86812613525,75x50SM0,64114915830,15x70SM0,44319119635,15x95SM0,32023423438,15x120SM0,25327326840,35x150SM0,20631130047,45x185SM0,16436034252,75x240SM0,12542739859,4


Packing shipping
0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240
0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240
0, 6/1 Kv Al Aluminum XLPE Insulation PVC PE Sheath Powers Cable Axmk Axpk 4X16 5X16 4X120 4X240
If you have another question, pls feel free to contact us below
