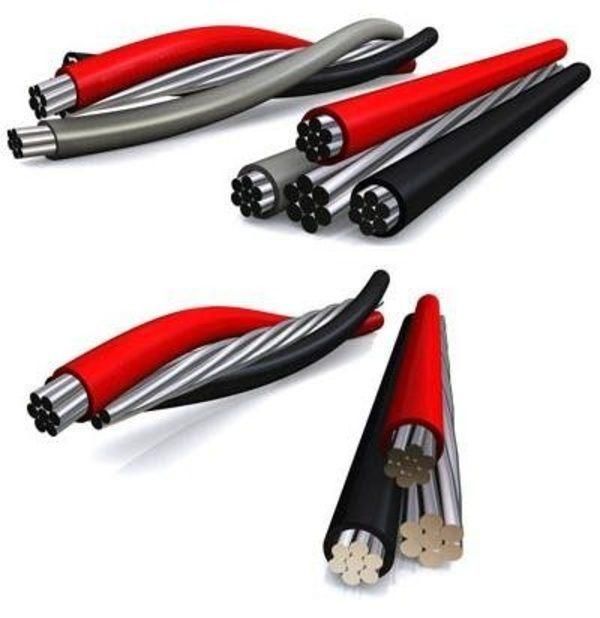

Cabo Multiplexado Al Triplex 3X16mm2 Aluminum XLPE Cable

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Industrial, Overhead Power Lines
  • Voltage：Low and Medium Voltage Cable
  • Current：DC & AC
  • Insulation Material：XLPE
  • Sheath Material：N,a
  • Material Shape：Round Wire

Base Info

  • Model NO.：triplex xlpe cable
  • Wire Core Material：Aluminum
  • Certification：ISO, CCC, CE
  • Model：0.6,1 Kv Aluminum Multiplexed Cable
  • Brand：Hongda
  • Standard：NBR 8182, IEC60502
  • Insulation：XLPE or Polyethylene
  • Operating Voltage：1kv
  • Operating Temperature：Max 65c
  • Transport Package：Wooden Drum or as Customer Requirement
  • Specification：6mm2 to 120mm2
  • Trademark：Hongda Cable
  • Origin：China
  • HS Code：8544492100
  • Production Capacity：1200km,Month

Description

Format 1: *Format 2:*Format 3:

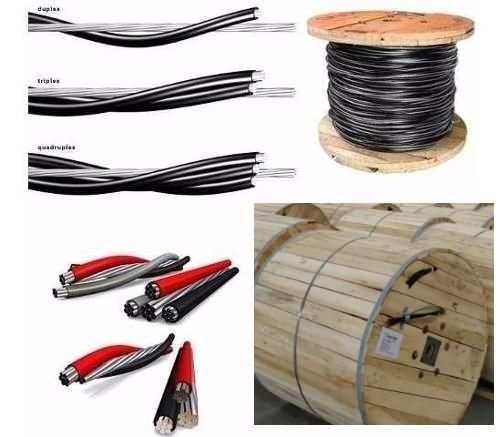

Duplex

Phase 1: Black.
Neutral: Nu.



Duplex

Phase 1: Black.
Neutral: Blue.

Triplex

Phase 1: Black.
Phase 2: Gray.
Neutral: Bare

Triplex

Phase 1: Black.
Phase 2: Black.
Neutral: Bare.

Triplex

Phase 1: Black.
Phase 2: Gray.
Neutral: Blue.

Quadruplex

Phase1: Black.
Phase 2: Gray.
Phase 3: Red.
Neutral: Nu

Quadruplex

Phase 1: Black.
Phase 2: Black.
Phase 3: Black.
Neutral: Bare.

Quadruplex

Phase 1: Black.
Phase 2: Gray.
Phase 3: Red.
Neutral: Blue.

* Formats 2 and 3 only by special request.Cabo Multiplexado Al Triplex 3X16mm2 Aluminum XLPE Cable


Conduspar - Multiplex Cable 1 kV
Nominal DimensionsNominal Weight (kg/km)Thickness (mm)Diameter (mm) Wires x Diameter(mm)Diameter (mm)3x1x35+357,01,610,27 x 2,507,65109223,74903x1x35+507,01,610,27 x 3,009,18157224,65303x1x50+358,11,611,37 x 2,507,65109225,86253x1x50+508,11,611,37 x 3,009,18157226,76653x1x70+509,51,813,17 x 3,009,18157230,18953x1x70+709,51,813,17 x 3,4510,56199131,09203x1x95+7011,22,015,27 x 3,4510,56199134,91.123x1x120+7012,62,016,67 x 3,4510,56199137,51.375
*Further information about rating factor for certain cable arrangement can be found on supplementary technical information.

Cabo Multiplexado Al Triplex 3X16mm2 Aluminum XLPE Cable
*In order to quote you accurate price, kindly tell us your needed cable length quantity. Larger quantity, more discount benefit ready for you!
Any needs or question, please contact with Vivian Yuan   we will be more pleasure to service you.
We are looking forward to your inquiry and nice cooperation.
