145kv Wall Mounted Bushing

Ningbo Hyuan Power Industry Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：Overhead, Heating
  • Conductor Material：Copper
  • Certification：ISO9001
  • Transport Package：Wooden

Base Info

  • Model NO.：FCGW
  • Specification：33KV,72.5KV,123KV,132KV,145KV
  • Trademark：HEMG
  • Origin：China
  • Production Capacity：100000

Description

Basic Info.

Model NO. FCGW Specification 33KV/72.5KV/123KV/132KV/145KV Trademark HEMG Origin China Production Capacity 100000

Product Description

145kv Wall Mounted Bushing

1.Service conditions
Ambient air temperature: -50 centigrade ~ +50 centigrade
The altitude ≤ 1000m, if higher, amend according to IEC 60137
The creepage ratio20mm/kV, 25mm/kV or 31mm/kV

2. Technical indexes
Rated voltage ( Ur ): 33kV, 52kV, 72.5kV, 123kV, 145kV, 170kV, 245kV
Rated current ( IR ): ≤ 4000A
Partial discharge: ≤ 5PC
Dielectric dissipation factor: ≤ 0.004
Ith: 25IR
All parameters are in accordance with IEC 60137

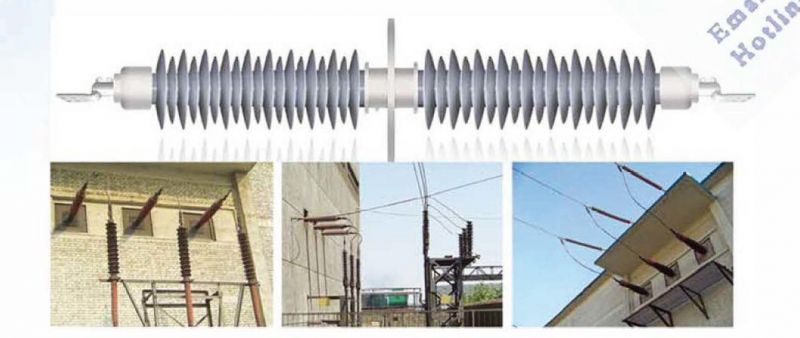

145kv Wall Mounted Bushing
145kv Wall Mounted Bushing
