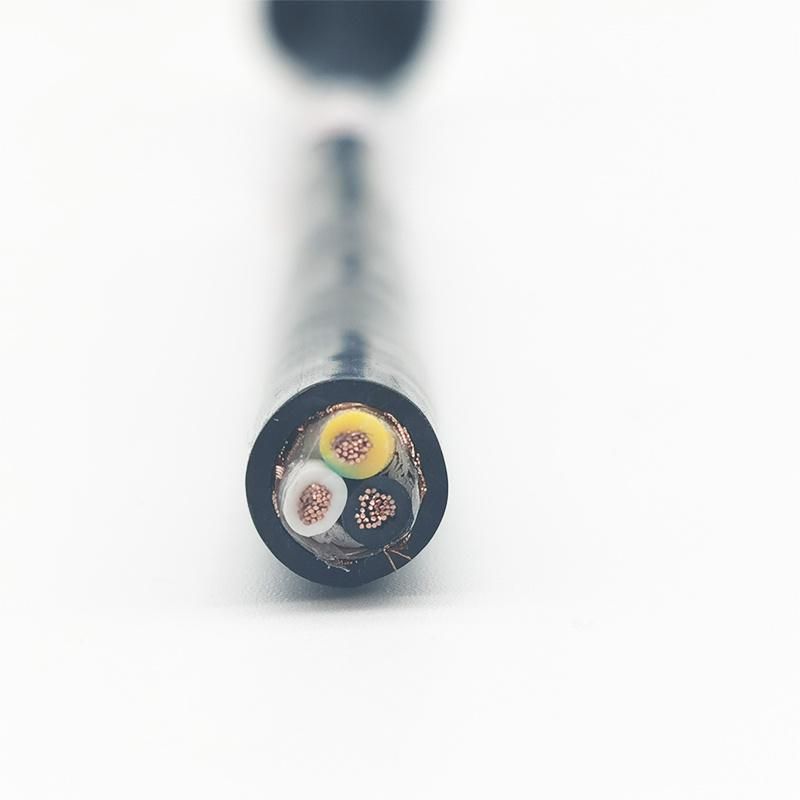

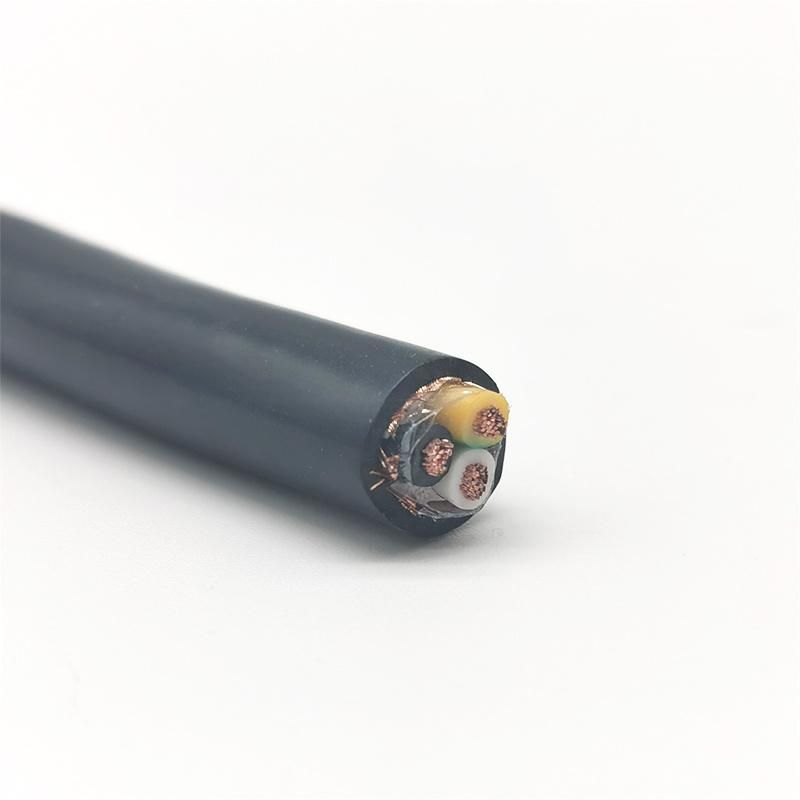

Cy LSZH (HSLCH) Cable Low Smoke Halogen-Free Flexible Screened Cable 300/500V

Shanghai Aein Wire & Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Conductor Material：Copper
  • Sheath Material：LSZH
  • Insulation Material：LSZH
  • Material Shape：Round Wire

Base Info

  • Model NO.：CY LSZH (HSLCH) Cable
  • Range of Application：Electrical Facilities
  • Certification：ISO9001, CE, UL, RoHS
  • Brand：Aein
  • Transport Package：Optional
  • Specification：Multicore
  • Trademark：AEIN
  • Origin：Shanghai
  • HS Code：8544492100

Description

ItemCY LSZH (HSLCH) CableConductorClass 5 flexible plain copperInsulationLSZH (Low Smoke Zero Halogen)SeparatorPET (Polyester Tape)ScreenTCWB (Tinned Copper Wire Braid)Outer sheathLSZH (Low Smoke Zero Halogen)Core NumberMulticores (As client's requirement)Temperature rangeFixed: -40°C to +80°C
Flexed: -15°C to +70°CRated voltageUo/U 300/500VColorOptionalApplicationLow smoke halogen-free flexible screened cable for instrumentation and control equipment in tooling machinery, production lines, and flexible applications with free movement without tensile load. Suitable for use in dry, ambient and wet rooms. The screen protects against external interference pulses for interference-free transmission. These cables are not used for outdoor or underground installation.
