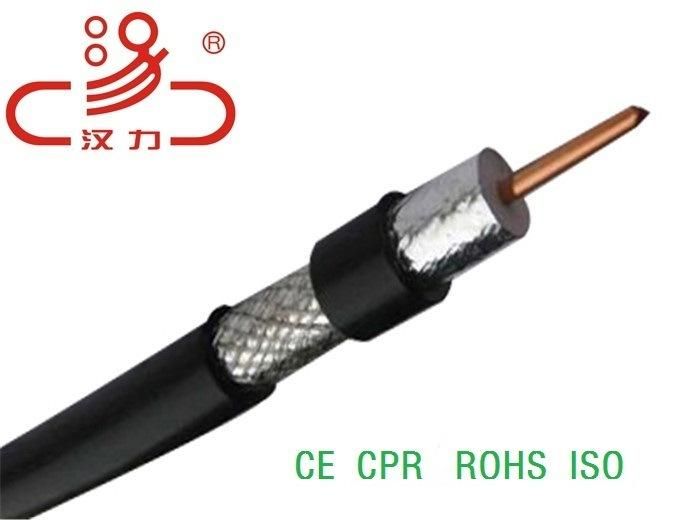

RG6 Tri Shield Coaxial Cable - CATV Distribution

Zhejiang Kuayue Cable Co., Ltd.
  • Application：Multimedia, DVD Player, Computer
  • Color：Black
  • Type：Coaxial
  • Species：VGA
  • Connector：RCA
  • Material Shape：Round Wire

Base Info

  • Model NO.：RG6 Tri Shield Coaxial Cable - CATV distribution
  • Wire Core Material：Bare Copper Wire
  • Certification：RoHS, CE
  • Brand：Hanli
  • Transport Package：305m
  • Specification：30X30X30CM
  • Trademark：hanli
  • Origin：Zhejiang
  • Production Capacity：3000000m,Month

Description

@ Frequency MHzdB/100 ft. (MAX.)dB/100 meters (MAX.)5 MHz0.58 dB2.65 dB55 MHz1.60 dB5.25 dB83 MHz1.95 dB6.40 dB187 MHz2.85 dB9.35 dB211 MHz3.05 dB10.00 dB250 MHz3.30 dB10.82 dB300 MHz3.55 dB11.64 dB350 MHz3.85 dB12.63 dB400 MHz4.15 dB13.61 dB450 MHz4.40 dB14.43 dB500 MHz4.66 dB15.29 dB550 MHz4.90 dB16.08 dB600 MHz5.10 dB16.73 dB750 MHz5.65 dB18.54 dB865 MHz6.10 dB20.01 dB1000 MHz6.55 dB21.49 dB

4. Application:

Used as a distribution cable for indoor CATV,CCTV systems and as a connection cable for satellite systems where lower attenuation required.

5. Packing:

1)     Packing Lengths:100/roll,200m/roll,300m/roll.305m/roll
2)     Inner Packing:Wooden reel,plastic reel,and paper reel
3)     Outer Packing:Carton box,pull out box,pallet available
4)     Other packing available according to clients'request



RG6 Tri Shield Coaxial Cable - CATV Distribution
RG6 Tri Shield Coaxial Cable - CATV Distribution
RG6 Tri Shield Coaxial Cable - CATV Distribution
RG6 Tri Shield Coaxial Cable - CATV Distribution
RG6 Tri Shield Coaxial Cable - CATV Distribution

Q1. What kind of products can your company supply?

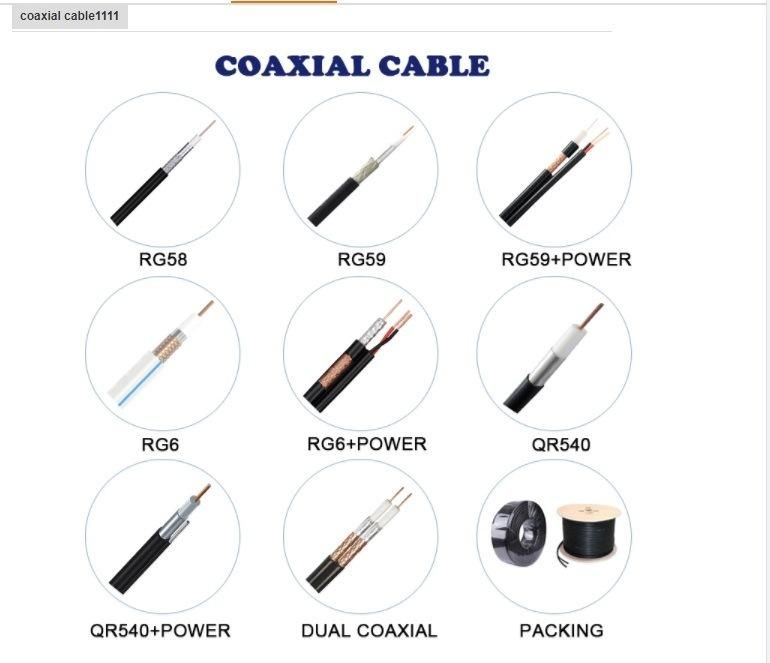

 A: We specialize in supplying network cable, coaxial cable, fiber optical cable, telephone cable, speaker cable and etc.

Q2. What's your MOQ?
A: The MOQ of long meter cable is 50 km, or we can negociate.

Q3. What's your delivery time?
A: Our delivery time is about 15-20 days after comfriming the deposite, it is based on the quantity of the order.

Q4. What are your payment terms?
A: Normally, we accept T/T in advance, as for other payment term, we can negociate with you.

Q5. What's your trade term ?
A: We can accept FOB, CIF term.

Q6. What's your conventional packing ?
A: 100m/plastic or wooden drum, 305m/wooden drum or color box. However, we can produce according your demand.

Q7. Can your factory customize cables based on clients' samples or data sheet ?
 A: Yes, we can.
