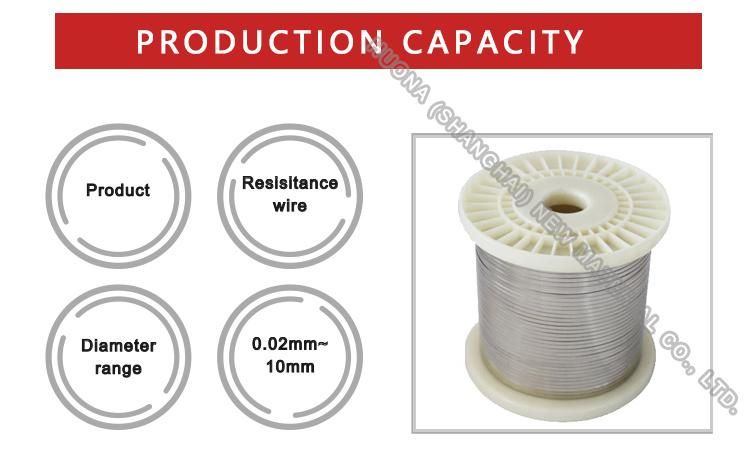

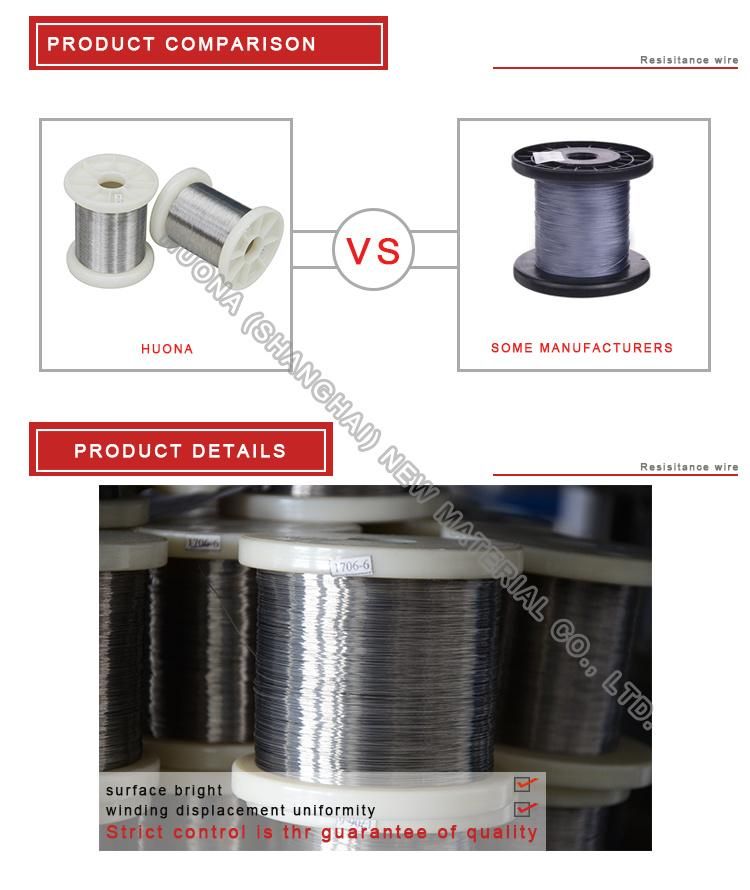

Double Twist Copper Nickel Enameled Wire for Precision Instrument

Huona (Shanghai) New Material Co., Ltd.

Insulation Level：H, F, B, E
Certification：ISO9001, RoHS
Brand：Huona
Application：Transformer, Instrument, Electrical Equipment, Motor
Shape：Round Wire
Conductor Material：Copper Wire

Base Info

Model NO.：enameled wire
Serves：Small Order Accepted
Size：Sample Available
Other Name：Eureka Wire
OEM：Yes
Stock：Seyn
Sample (Less Than1kg)：Can Discuss
Material：Cunimn Alloy
Transport Package：Woodren Case or Cartons
Specification：0.01-3mm
Trademark：HUONA
Origin：Shanghai
HS Code：7408229000
Production Capacity：2000tons,Year

Description

μv/(0~100)

Tpye of Bare Wire

main

property

type

Cuni1

CuNI2

CuNI6

CuNI10

CuNi19

CuNi23

CuNi30

CuNi34

CuNI44

main

chemical

composition

Ni

1

2

6

10

19

23

30

34

44

MN

/

/

/

/

0.5

0.5

1.0

1.0

1.0

CU

rest

rest

rest

rest

rest

rest

rest

rest

rest

max

working

temperature

/

200

220

250

300

300

350

350

400

density

g/cm3

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

8.9

resistivity

at 20 °c

0.03
± 10%

0.05
±10%

0.1
±10%

0.15
±10%

0.25
±5%

0.3
±5%

0.35
±5%

0.40
±5%

0.49
±5%

temperature

coefficient of

resistance

<100

<120

<60

<50

<25

<16

<10

-0

<-6

tensile

strength mpa

>210

>220

>250

>290

>340

>350

>400

>400

>420

elongation

>25

>25

>25

>25

>25

>25

>25

>25

>25

melting

point °c

1085

1090

1095

1100

1135

1150

1170

1180

1280

coefficient of

conductivity

145

130

92

59

38

33

27

25

23
