300V 200c UL20368 Multi Core FEP Insulated Cable Wire
Yangzhou Fongming Cable Factory- Type：Insulated
- Conductor Type：Stranded
- Application：Heating
- Conductor Material：Tinned Copper
- Sheath Material：FEP
- Insulation Material：FEP
Base Info
- Model NO.：UL20368
- Material Shape：Round Wire
- Range of Application：Instrument
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Fongming
- Name：300V 200c UL20368 Multi Core FEP Insulated Cable W
- MOQ：2000meters
- Transport Package：Cartons and Pallet
- Specification：AS CUSTOMER REQUIREMENT
- Trademark：FONGMING
- Origin：Yangzhou China
- HS Code：8544492100
- Production Capacity：100000000meters Per Month
Description
Basic Info.
Model NO. UL20368 Material Shape Round Wire Range of Application Instrument Certification ISO9001, CE, UL, CCC, RoHS, VDE Brand Fongming Name 300V 200c UL20368 Multi Core FEP Insulated Cable W MOQ 2000meters Transport Package Cartons and Pallet Specification AS CUSTOMER REQUIREMENT Trademark FONGMING Origin Yangzhou China HS Code 8544492100 Production Capacity 100000000meters Per MonthProduct Description
UL20368 Multi FEP CableDescription
Name: Multi FEP Wire
Model:AWM 20368
Size:2*18~7*14AWG
Feature
Rated Voltage:300V
Rated Temperature:200ºC

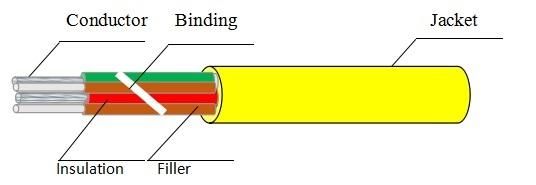

Structure
Conductor: Tinned Copper,Nickel Plated Copper
Insulation:FEP
Filler:Fiberglass With FEP insulated
Binding:Polyester Yarn
shield:Optional
Jacket:FEP
| Size (AWG) | Conductor Structure (mm) | Diameter (mm) | Insulation Thickness (mm) | Diameter (mm) | Cabling Diameter | Jacket Thickness (mm) | O.D. (mm) |
| 2*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.40 | 0.64 | 4.7±0.2 |
| 3*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 3.70 | 0.64 | 5.0±0.3 |
| 4*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.10 | 0.64 | 5.4±0.3 |
| 5*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.60 | 0.64 | 5.9±0.3 |
| 6*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 4.80 | 0.64 | 6.1±0.3 |
| 7*18 | 7/0.39 | 1.17 | 0.25 | 1.70 | 5.10 | 0.64 | 6.4±0.3 |
| 2*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.00 | 0.64 | 5.3±0.3 |
| 3*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.30 | 0.64 | 5.6±0.3 |
| 4*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 4.80 | 0.64 | 6.1±0.3 |
| 5*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.40 | 0.64 | 6.7±0.3 |
| 6*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 5.60 | 0.64 | 6.9±0.3 |
| 7*16 | 19/0.3 | 1.50 | 0.25 | 2.00 | 6.00 | 0.64 | 7.3±0.4 |
| 2*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 4.80 | 0.64 | 6.1±0.3 |
| 3*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.20 | 0.64 | 6.5±0.3 |
| 4*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 5.80 | 0.64 | 7.1±0.4 |
| 5*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.50 | 0.64 | 7.8±0.4 |
| 6*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 6.70 | 0.64 | 8.0±0.4 |
| 7*14 | 19/0.37 | 1.85 | 0.25 | 2.40 | 7.20 | 0.64 | 8.5±0.4 |
