Solid Core Tinned Copper Electrical Copper Cable Wire Fire Resistance PVC Insulation for Home Use
Huona (Shanghai) New Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Overhead, Heating, Underground
- Conductor Material：Copper Wire

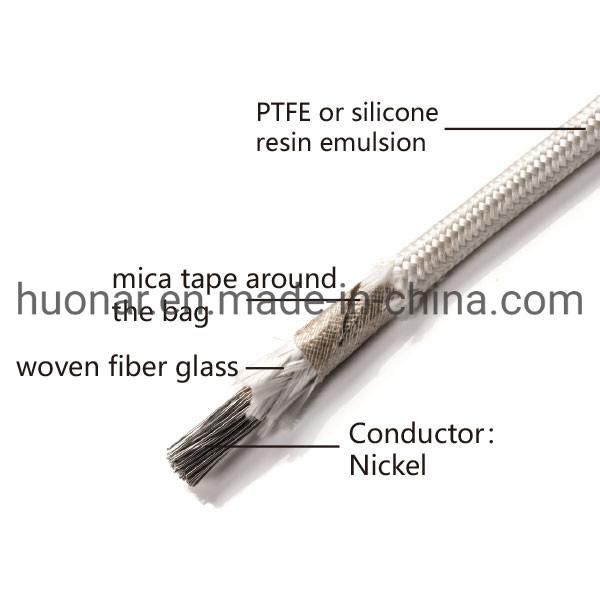

- Sheath Material：PTFE or Silicone Resin Emulsion
- Insulation Material：Fiberglass
Base Info
- Model NO.：Free Resistance Wire
- Material Shape：Round Wire
- Range of Application：--
- Certification：ISO9001, CCC, RoHS
- Brand：Huona
- Insulation：PTFE or Silicone Resin Emulsion
- Conductor：Tinned Copper Wire, Silver Plated Copper Wire
- Temperature Range：-60-+800c
- Rated Voltage：500V
- Colour：White, Blue, Red, Black, Brown, Yellow, Green,
- Used：Oil Equipment, Electric Machinery, etc
- Pleach：Fibreglass +Mica Tape
- Transport Package：Wooded Case, Carton
- Specification：2.6-17.4mm
- Trademark：HUONA
- Origin：Shanghai, China
- HS Code：7505220000
- Production Capacity：2000 Tons,Year
Description
Outer Diameter
mmElectrical Properties
mm Packing Sectional Area
mm² Jacket Thickness
mm Max. Conductor
Resistance DC 20'C
Ω/km M/coil 0.50 7x0.30 2.6±0.3 160.4 200 0.75 11x0.30 2.7±0.3 106.8 200 1.0 14x0.30 2.8±0.3 80.0 200 1.2 40x0.30 3.0±0.3 68.0 100 1.5 21x0.30 3.0±0.3 68.0 100 2.0 28x0.30 3.3±0.3 54.8 100 2.5 35x0.30 3.6±0.5 42.0 100 4.0 56x0.30 4.5±0.5 32.8 100 6.0 84x0.30 5.5±0.5 20.4 100 10 140x0.30 6.6±0.5 13.6 100 16 228x0.30 7.8±0.5 7.8 100 25 361x0.30 9.5±0.5 4.96 100 35 494x0.30 11.2±1.0 3.18 100 50 703x0.30 13.2±1.0 2.26 100 70 988x0.30 15.4±1.0 1.58 100 95 960x0.40 17.4±1.0 1.11 100
mm
mm
mm²
mm
Resistance DC 20'C
Ω/km
