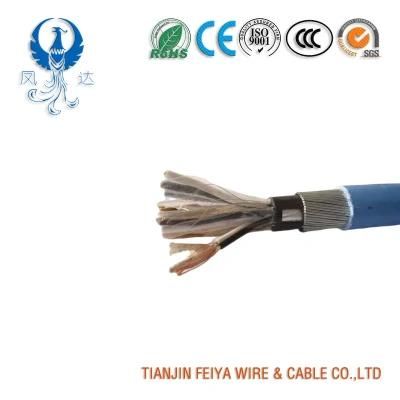

BS 5308 Part 1 Type 3 Icam XLPE Insulated Instrument/Instrumentation Control Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground, Oil, Gas and Petrochemical Industry
- Conductor Material：Copper
- Sheath Material：LSZH
- Insulation Material：XLPE
Base Info
- Model NO.：BS 5308 Part 1 Type 3
- Material Shape：Round Wire
- Range of Application：Oil, Gas and Petrochemical Industry
- Certification：ISO9001, CE, CCC, RoHS, VDE
- Brand：Fengda
- Colour：Blue,Black
- Flame Test：Yes
- OEM/ODM：Accepted
- Core：Multicore
- Factory Type：Manufacturer
- Transport Package：Rolls or According to Cusotmers′ Reques
- Specification：0.5 to 2.5 mm2
- Trademark：FengDa
- Origin：Tianjin, China(Mainland)
- HS Code：8544492100
- Production Capacity：5000000km,Year
Description
Application
BS 5308 cables are designed to carry communication and control signals in a variety of installation types including those found in the petrochemicals industry. The signals can be of analogue, data or voice type and from a variety of transducers such as pressure, proximity and microphone. Part 1 Type 3 cables are generally designed where a greater degree of mechanical and chemical protection is required or direct burial at a suitable depth. Collectively and individually screened pairs are available within the range. For installations where fire, smoke emission and toxic fumes create a potential risk to life and equipment.

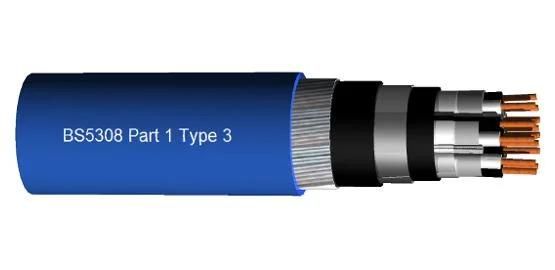

CONSTRUCTIONConductor
Class 1 solid copper conductor according to BS EN 60228 Class 2 stranded copper conductor according to BS EN 60228 Class 5 flexible copper conductor according to BS EN 60228
Insulation
XLPE Type 03
Binder Tape
PET (Polyester Tape)
Screen
AL/PET (Aluminium/Polyester Tape)
Drain Wire
Tinned copper
Bedding
LSZH (Low Smoke Zero Halogen) Type LTS3 acc. to BS 7655
Covering
Lead or polyamide cover
Inner Sheath
LSZH (Low Smoke Zero Halogen) Type LTS3 acc. to BS 7655
Armour
Galvanized steel wires
CHARACTERISTICS
Voltage Rating (Uo/U)
300/500V
Operating Temperature
+90°C
Outer Sheath Colour
Blue BlackOuter Sheath
LSZH (Low Smoke Zero Halogen) Type LTS3 acc. to BS 7655
DIMENSIONS
Individually and Collectively Screened
| Fengda2021**2P0.5 | 2P | 0.5 | 18.6 |
| Fengda2021**2P1 | 2P | 1 | 20.1 |
| Fengda2021**2P1.5 | 2P | 1.5 | 23 |
| Fengda2021**2P2.5 | 2P | 2.5 | 24.3 |
| Fengda2021**2P0.75 | 2P | 0.75 | 20.8 |
| Fengda2021**3P0.5 | 3P | 0.5 | 20 |
| Fengda2021**3P1 | 3P | 1 | 21.7 |
| Fengda2021**3P1.5 | 3P | 1.5 | 23.8 |
| Fengda2021**3P2.5 | 3P | 2.5 | 26.2 |
| Fengda2021**3P0.75 | 3P | 0.75 | 21.9 |
| Fengda2021**5P0.5 | 5P | 0.5 | 23.4 |
| Fengda2021**5P1 | 5P | 1 | 24.3 |
| Fengda2021**5P1.5 | 5P | 1.5 | 27.8 |
| Fengda2021**5P2.5 | 5P | 2.5 | 30.7 |
| Fengda2021**5P0.75 | 5P | 0.75 | 24.5 |
| Fengda2021**10P0.5 | 10P | 0.5 | 30.8 |
| Fengda2021**10P1 | 10P | 1 | 33.2 |
| Fengda2021**10P1.5 | 10P | 1.5 | 37.4 |
| Fengda2021**10P2.5 | 10P | 2.5 | 40.5 |
| Fengda2021**10P0.75 | 10P | 0.75 | 33.5 |
| Fengda2021**15P0.5 | 15P | 0.5 | 35.5 |
| Fengda2021**15P1 | 15P | 1 | 37 |
| Fengda2021**15P1.5 | 15P | 1.5 | 41.4 |
| Fengda2021**15P2.5 | 15P | 2.5 | 44.8 |
| Fengda2021**15P0.75 | 15P | 0.75 | 37.4 |
| Fengda2021**20P0.5 | 20P | 0.5 | 38.2 |
| Fengda2021**20P1 | 20P | 1 | 40.4 |
| Fengda2021**20P1.5 | 20P | 1.5 | 45.3 |
| Fengda2021**20P2.5 | 20P | 2.5 | 50.2 |
| Fengda2021**20P0.75 | 20P | 0.75 | 40.8 |
| Fengda2021**30P0.5 | 30P | 0.5 | 43 |
| Fengda2021**30P1 | 30P | 1 | 45.3 |
| Fengda2021**30P1.5 | 30P | 1.5 | 52.2 |
| Fengda2021**30P2.5 | 30P | 2.5 | 57.4 |
| Fengda2021**30P0.75 | 30P | 0.75 | 46.7 |
