Cable & Wire

Home > Product > Power Cable

Copper (Aluminum) XLPE Cable / XLPE Insulated Power Cable

Luoyang Sanwu Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer
  • Voltage：Low and Medium Voltage Cable
  • Current：DC Cable
  • Insulation Material：PVC, XLPE, PV
  • Sheath Material：PVC, XLPE, PV
  • Material Shape：Round Wire

Base Info

  • Model NO.：PC-002
  • Wire Core Material：Copper or Aluminum
  • Certification：ISO, CCC, CE, TUV
  • Model：YJV
  • Brand：Da Yuan
  • Cross Section：Manufacturer and Trading Company
  • Specification Type：1.5mm2-320mm2
  • Armour：Steel Tape
  • Core：1 2 3 4 3+1 3+2
  • Voltage Range：0.6,1kv
  • Fire Resistance：Available, as Per Customer′s Requirement
  • Cold Proof：Available, as Per Customer′s Requirement
  • Requirement：1000m,Drum
  • Flame Retardant：Available, as Per Customer′s Requirement
  • Sheath Colour：Black, Red, Blue, Other as Per Requirement
  • Transport Package：Wooden Drum, as Request
  • Specification：IEC, ISO, GB, TUB, CCC
  • Trademark：Da Yuan
  • Origin：Henan, China
  • HS Code：85444929
  • Production Capacity：100000m,Day

Description

Main Application
Cu CoreAl Core
YJV
YJY		YJLV
YJLV		XLPE insulated,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud,Unable to bear external mechanical force,but bear the traction force during laid
YJV22
YJV22		YJLV22
YJV22		XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power CableFor laying indoor,tunnel,channel and undergroud Able to bear external mechanical force,but unable to bear large pulling force
YJV32
YJV32		YJLV32
YJLV32		XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power CableFor laying in shaft with large difference of level.Able to bear external machanical force and maderate pulling force
YJV42
YJV42		YJLV42
YJLV42		XLPE Insulated,Thick Steel Wire Armoured,PVC or PE Sheathed Power CableAble to bear positive pressure and pulling force
4. Our Services:
Luoyang Da Yuan Cable Factory Co., Ltd., a professional wires and cables manufacturer for 6 years in China. Da Yuan attends International Exhibitions every year, we support to offer many kinds of wires and cables, such as xlpe/pvc electrical power cable, control power cable, aerial cable, ABC, AAC, AAAC, ASCR cables, and XLPO/PVC Solar PV Cable etc. We can produce the standard: ASTM, BS, CSA, IEC, ASMC, DIN as your need.
1). Factory: 200,081 square meters, available for OEM&ODM;
2). Lead time: 5-7 working days after payment received;
3). Authentication: CCC,ISO9001, CQC, etc;
4). Payment terms: T/T, L/C;
5). Guarantee: 17 years;
6). QC inspection: Strict inspection before delivery;

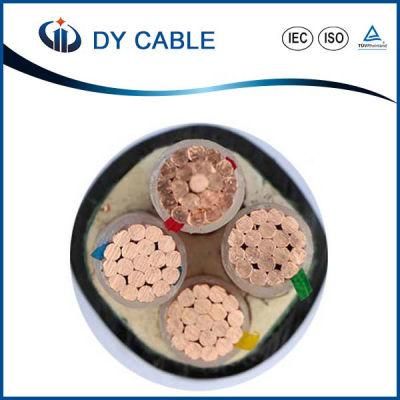

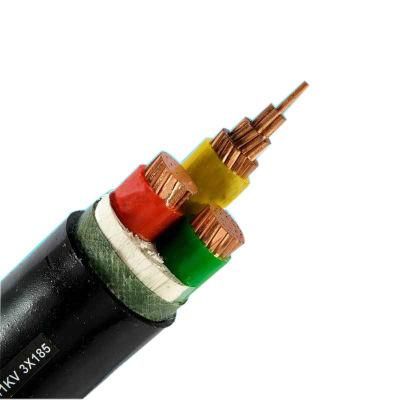

Copper Conductor XLPE Insulated Armoured Power Cables
Copper Conductor XLPE Insulated Armoured Power Cables
5.After-sales Service:
1). All our cables will be tested well in production and before delivery.
2). Please contact us if any problem, we will respond within 24 hours.
Copper Conductor XLPE Insulated Armoured Power Cables
Copper Conductor XLPE Insulated Armoured Power Cables
6. Company Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.
Copper Conductor XLPE Insulated Armoured Power Cables
