Cable Na2X2y 0, 6/1 Kv Single Core UV. Resist
Henan Hongda Cable Co., Ltd.- Application:Construction, Underground, Industrial, Power Station
- Voltage:Low and Medium Voltage Cable
- Current:AC Cable
- Insulation Material:XLPE
- Sheath Material:LLDPE
- Material Shape:Round Wire
Base Info
- Model NO.:Cable NA2X2Y
- Wire Core Material:Red Copper Wire
- Certification:ISO, CCC
- Model:Cable Na2X2y
- Brand:OEM
- Number of Cores:Single Core
- Transport Package:Wooden Drum
- Trademark:OEM
- Origin:China(Mainland)
- HS Code:8544492100
- Production Capacity:50 Kilometer,Month
Description
Basic Info.
Model NO. Cable NA2X2Y Wire Core Material Red Copper Wire Certification ISO, CCC Model Cable Na2X2y Brand OEM Number of Cores Single Core Transport Package Wooden Drum Trademark OEM Origin China(Mainland) HS Code 8544492100 Production Capacity 50 Kilometer/MonthProduct Description
STANDARDS
International : IEC 60228; IEC 60332-1; IEC 60502-1; IEC 60684-2; IEC 60754-1; IEC 60754-2; IEC 60811-4-1; IEC 61034National : ICEA S-95-658; NTP-IEC 60228; NTP-IEC 60502-1
DESCRIPTION
Application:
General application as power cable. In low voltage distribution power networks, industrial installations, in buildings and operation stations. In fixed installations, indoor and outdoor areas (trays, gutters, staples). It can be installed in ducts, in dry or wet locations.

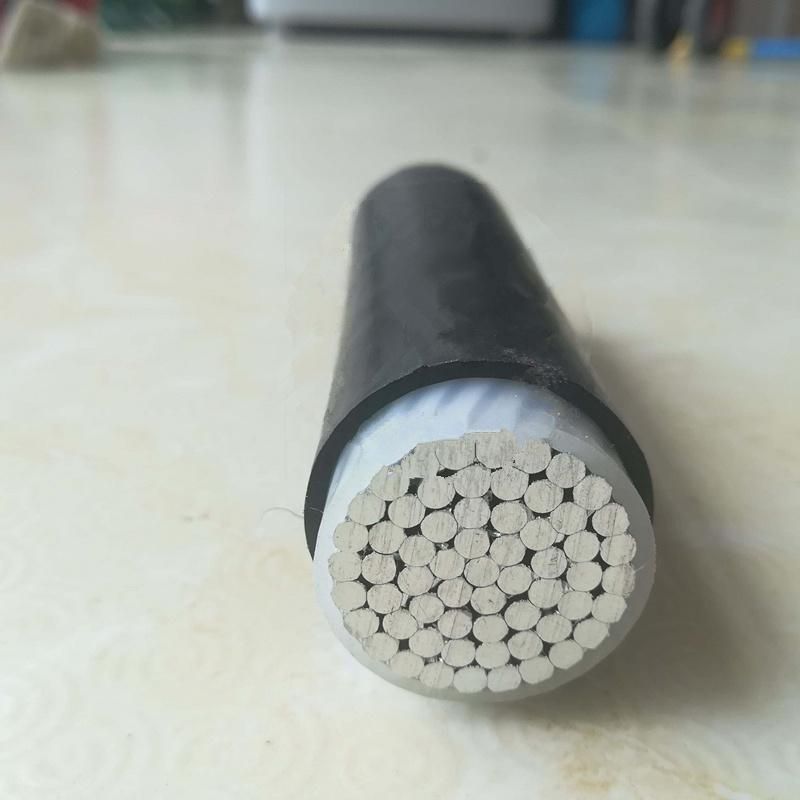

Construction:
1. Conductor: Compact aluminium 1350, class 2.
2. Insulation: XLPE cross linked polyethylene.
3. Outer sheath: Low Linear Dendsity Polyethylene LLDPE-UV.
Main characteristics:
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The outer sheath has the following characteristics: low emission dense smoke and halogen free. Resistance to abrasion, moisture and sunlight. Adequate resistance to greases and oils. Flame restardant.
Section:
From 10 mm2 up to 400 mm2.
Colour:
Insulation: Natural.
Outer sheath: Black.
National standards
NTP-IEC 60228: Conductors of insulated cables.
NTP-IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV and 3 kV.
Conductor material | aluminum Alloy 1350 |
Insulating material | XLPE |
Outer sheath | LLDPE-UV |
Sheath colour | Black |
Halogen free | IEC 60754-1 |
Lead free | Yes |
Dielectric strength | 3.5kV |
Time of application Dielectric strength core to screen DC | 5min. |
U.V resistance | UL 2556 - Sunlight Resistance |
Oil resistance | ICEA S-95-658 |
Gases toxicity | Low toxicity to IEC 60684-2 |
Gases corrosivity | Low pH Corrosivity IEC 60754-2 |
Smoke density | IEC 61034-2 |
Flame retardant | IEC 60332-1-2; FT1 |
Maximum operating temperature | 90°C |
Overload maximum core temperature | 130°C |
Short-circuit max. conductor temperature | 250°C |
