2*7*0.2mm RC/SC thermocouple compensation cable
Shanghai Tankii Alloy Material Co., Ltd.- Type：Insulated
- Conductor Type：Solid
- Application：Thermocouple
- Conductor Material：copper-cuni
- Sheath Material：PTFE
- Insulation Material：PTFE
Base Info
- Model NO.：R,S
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, RoHS
- Brand：Tankii
- Dia：0.3,0.5,0.8,1.0,1.2,1.6,2.0,2.5,3.2mmm
- Insulation Color：yellow,green, black, blue,orange,white
- Grade：I,II,III
- Standard：GB,IEC,ANSI,BS
- Transport Package：Export Package
- Specification：Tailor-made
- Trademark：TANKII
- Origin：Shanghai
- HS Code：7505220000
- Production Capacity：1000 Tons,Year
Description
Thermocouple Code
Comp. Type
Comp. Wire Name
Positive
Negative
Name
Code
Name
Code
S
SC
copper-constantan 0.6
copper
SPC
constantan 0.6
SNC
R
RC
copper-constantan 0.6
copper
RPC
constantan 0.6
RNC
K
KCA
Iron-constantan22
Iron
KPCA
constantan22
KNCA
K
KCB
copper-constantan 40
copper
KPCB
constantan 40
KNCB
K
KX
Chromel10-NiSi3
Chromel10
KPX
NiSi3
KNX
N
NC
Iron-constantan 18
Iron
NPC
constantan 18
NNC
N
NX
NiCr14Si-NiSi4Mg
NiCr14Si
NPX
NiSi4Mg
NNX
E
EX
NiCr10-Constantan45
NiCr10
EPX
Constantan45
ENX
J
JX
Iron-constantan 45
Iron
JPX
constantan 45
JNX
T
TX
copper-constantan 45
copper
TPX
constantan 45
TNX
GB standard Color code:
The color of Insulation and Sheath
Type
Insulation Color
Sheath Color
Positive
Negative
G
H
/
S
/
S
SC/RC
RED
GREEN
BLACK
GRAY
BLACK
YELLOW
KCA
RED
BLUE
BLACK
GRAY
BLACK
YELLOW
KCB
RED
BLUE
BLACK
GRAY
BLACK
YELLOW
KX
RED
BLACK
BLACK
GRAY
BLACK
YELLOW
NC
RED
GRAY
BLACK
GRAY
BLACK
YELLOW
NX
RED
GRAY
BLACK
GRAY
BLACK
Note: G--For general use H--For heat resistant use S--Precision class Normal class has no sign

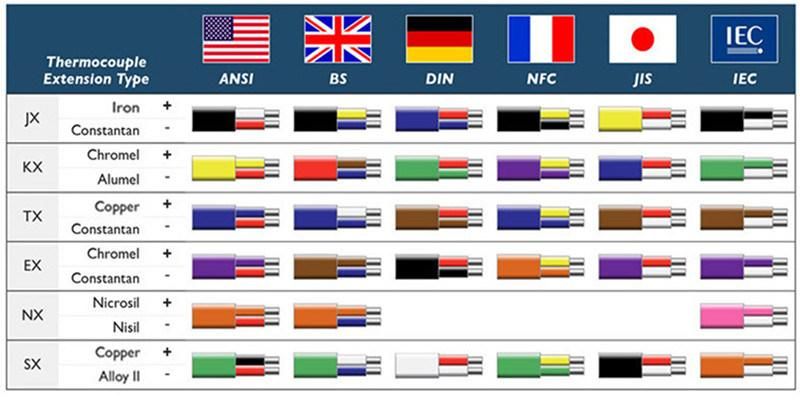

International color code:
