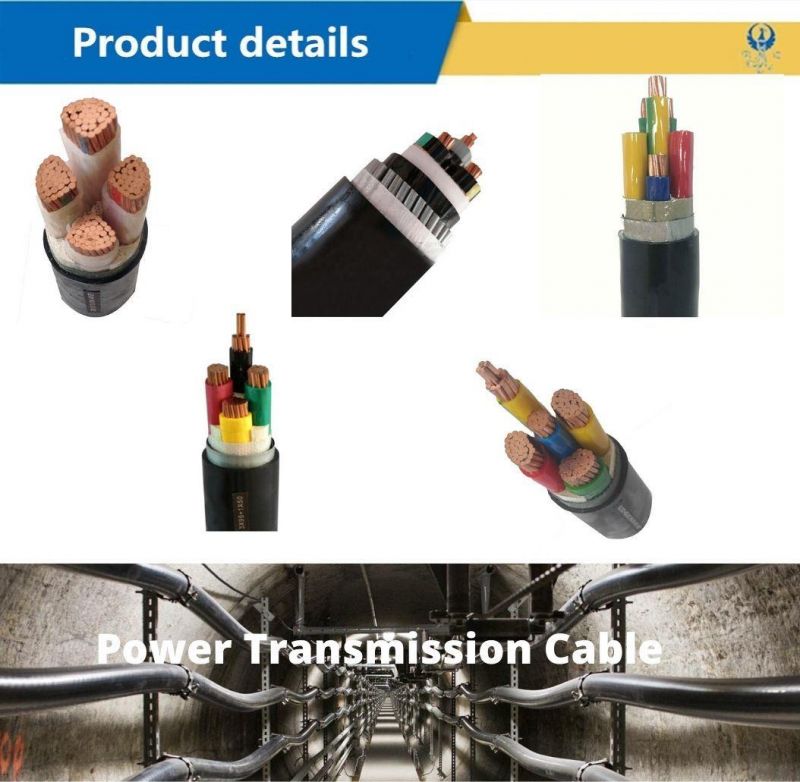

2.5mm Single Core Multi Core Copper PVC House Wiring Electrical Cable and Wire Building Wire Fire Resistant Aluminium Cable
Tianjin Feiya Electric Wire & Cable Co., Ltd.- Application：Construction, Overhead, Underground, Industrial, Power Station, Telecommunication, Computer, Home Wire
- Voltage：Low and Medium Voltage Cable
- Insulation Material：PVC , XLPE
- Sheath Material：PVC , XLPE , Epr
- Material Shape：Round Wire
- Wire Core Material：Bare Flexible Copper
Base Info
- Model NO.：Power Cables

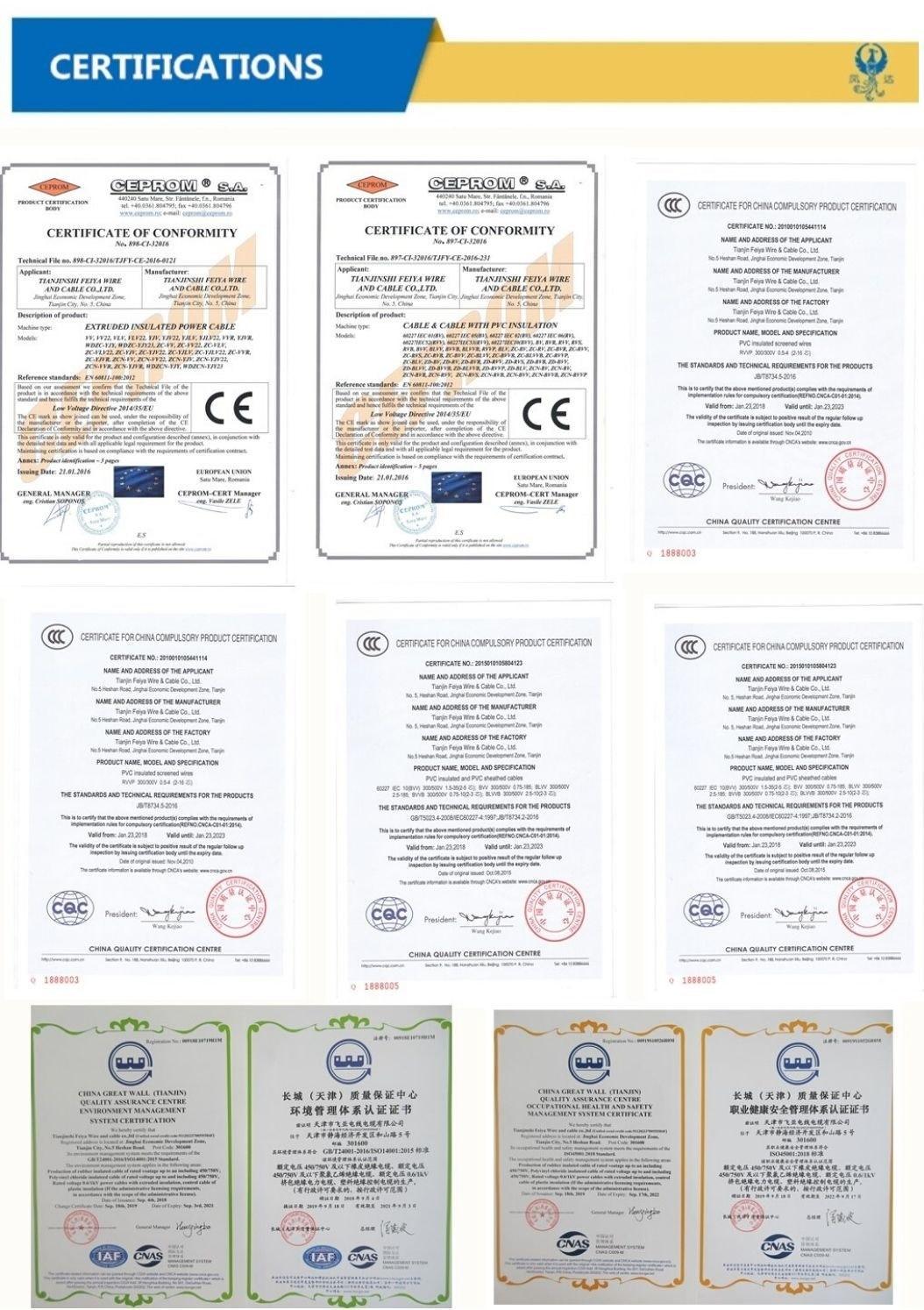

- Certification：ISO, CCC, CE
- Model：60227 IEC
- Brand：Feng Da
- Colour：Red,Green,Blue,Black,White,as Request
- OEM/ODM：Yes
- Flame Test：Yes
- Transport Package：Rolls or According to Customer′s Request
- Specification：1.8m * 1.8m * 1.1m
- Trademark：feiya
- Origin：Tianjin, China
- HS Code：8544492100
Description
ELECTRICAL CHARACTERISTICS
- Operating Voltage, Uo/U : 0.6/1KV
- Operating Temperature : -15'C to 90'C
- Final Short Circuit Temperature : 250′ C
- Test Voltage : 3.5kV for 5 minutes
- Current Carrying Capacity
- Clipped Direct (Ref Method C)
- One 3 or 4-Core Cable, 3-Phase A.C : 73A
- In free air or on a perforated cable tray etc, horizontal or vertical (Ref method E)
- One 3 or 4-Core Cable, 3-Phase A.C : 78A
- Direct in Ground or in ducting in ground, in or around building (Ref method D)
- One 3 or 4-Core Cable, 3-Phase A.C : 58A
- Clipped Direct (Ref Method C)
REFERENCE STANDARD
- Design Specification: IEC60502-1
- Conductor: IEC60228, BS EN60228
- Flame Retardancy: IEC60332-1, BS EN60332-1
INSTALLATION REFERENCE
- Minimum Bending Radius(mm): 8 x cable overall diameter
- Max. Pulling Tension (N/mm2) : 70
