Cathodic Protection Cable 1*10mm2
YIFANG ELECTRIC GROUP INC.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Underground
- Conductor Material：Copper
- Sheath Material：Crosslinking
- Insulation Material：PVDF
Base Info
- Model NO.：CU,PVDF,HMWPE
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CCC
- Brand：Yifang
- Color：Black
- Cable Marking：Printing, Embossed or Laser

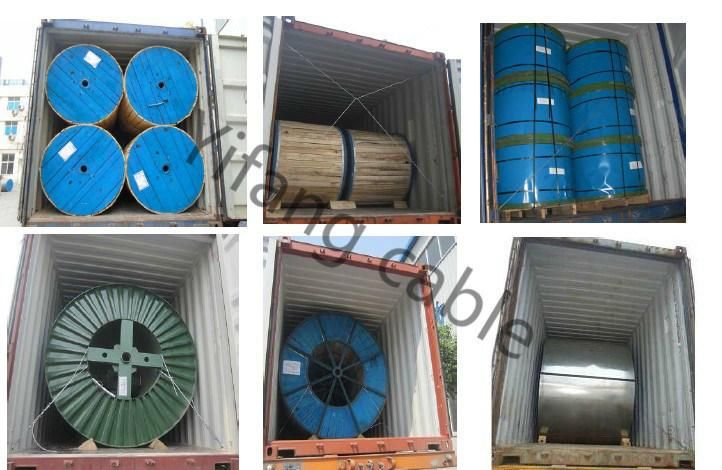

- Transport Package：Wooden Drum
- Trademark：Yifang
- Origin：China
- HS Code：8544492100
- Production Capacity：1000km Per Month
Description
Basic Info.
Model NO. CU/PVDF/HMWPE Material Shape Round Wire Range of Application Flame Retardant Certification ISO9001, CCC Brand Yifang Color Black Cable Marking Printing, Embossed or Laser Transport Package Wooden Drum Trademark Yifang Origin China HS Code 8544492100 Production Capacity 1000km Per MonthProduct Description
Low Voltage Underground Power CableCathodic Protection Cable
Application: The cathodic protection cable mainly used for impressed current cathodic protection system.Applicable standards: GB16702, 17-SAMSS-017
Production Scope:
Rated voltage: DC 600V
Core number: 1 core
Cross section: 10- 70mm2
Construction:
Conductor: Stranded Copper
Insulation: HMWPE , PVDF, or KYNAR
Amoured (Optional): steel wire, aluminum wire, etc.
Sheath(Optional): HMWPE, or KYNAR
* We can design and produce according to client's requirement
