• Model NO.：Instrument Cable BL62
• Wire Core Material：Bare Copper Wire
• Certification：ISO, CCC, CE
• Model：Instrument Cable
• Brand：Yifang
• Transport Package：Wooden Drum
• Specification：6 pair x 1.5mm2
• Trademark：Yifang
• Origin：Henan Province, China
• HS Code：8544492100
• Production Capacity：300 Kilometers,Month

Basic Info.

Model NO. Instrument Cable BL62 Wire Core Material Bare Copper Wire Certification ISO, CCC, CE Model Instrument Cable Brand Yifang Transport Package Wooden Drum Specification 6 pair x 1.5mm2 Trademark Yifang Origin Henan Province, China HS Code 8544492100 Production Capacity 300 Kilometers/Month

Product Description

Bare Copper Conductor PE XLPE Insulated aluminium mylar tape Screen Galvanized steel wire Armoured Instrument Cable

Application
For transmission of analogue and digital signals in instrument and control systems; use in zone 1 and zone 2 group
ΙΙ classified areas (IEC 60079 part 14). Not allowed for direct connection to low impedance source, e.g. the public
mains electricity supply.
Recommended for direct burial. For indoor and outdoor installation in dry and wet locations on racks, in conduits.
1. Conductor: Plain annealed copper, sizes: 0.5 mm² solid, 1.0 mm² solid, 0.5 mm² flexible, 0.75 mm² flexible or 1.5mm²
                         stranded
2. Insulation: Polyethylene PE
Colour code: black / blue;
with numbered tape under separator tape of the pair screen
3. Pair screen: 24 µm aluminium / PETP tape over tinned copper drain wire, 0.5 mm²
4. Collective screen: 24 µm aluminium / PETP tape over tinned copper drain wire, 0.5 mm²
5. Bedding: polyethylene PE, black
6. Armour: galvanized round steel wires
7. Outer sheath: Polyvinyl chloride PVC, black
                              *Flame retardant
                              *Oil resistant,
                              *Anti-rodent&termite
These properties could be offered upon requested.

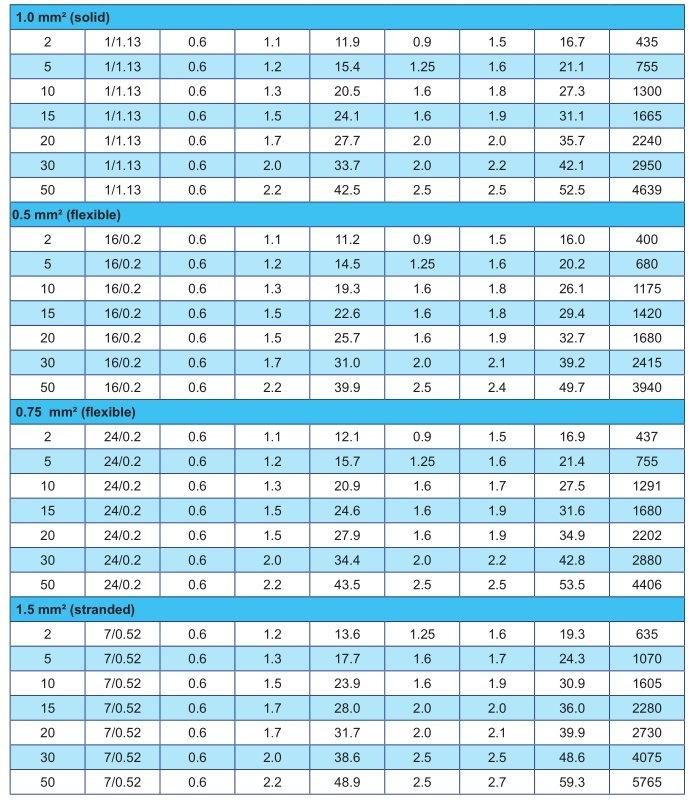

Technical Data
 Temperature range:
-40°C up to +70°C (during operation)
- 5°C up to +50°C (during installation)
Min. bending radius:
8 x cable-Ø
