Bare Copper Conductor Copper Building Wire Bare Copper Cable
Henan Hongda Cable Co., Ltd.- Type:Bare
- Conductor Type:Stranded
- Application:Overhead, Heating, Underground
- Conductor Material:Copper
- Sheath Material:Bare
- Insulation Material:Bare
Base Info
- Model NO.:Bare Copper Conductor
- Material Shape:Round Wire
- Range of Application:Ground
- Certification:ISO9001, CCC
- Brand:OEM
- Standard:ASTM B-8
- Transport Package:Wooden Drum
- Specification:2.5~400sqmm
- Trademark:OEM
- Origin:China(Mainland)
- HS Code:7408190000
- Production Capacity:500 Tons,Month
Description
Basic Info.
Model NO. Bare Copper Conductor Material Shape Round Wire Range of Application Ground Certification ISO9001, CCC Brand OEM Standard ASTM B-8 Transport Package Wooden Drum Specification 2.5~400sqmm Trademark OEM Origin China(Mainland) HS Code 7408190000 Production Capacity 500 Tons/MonthProduct Description

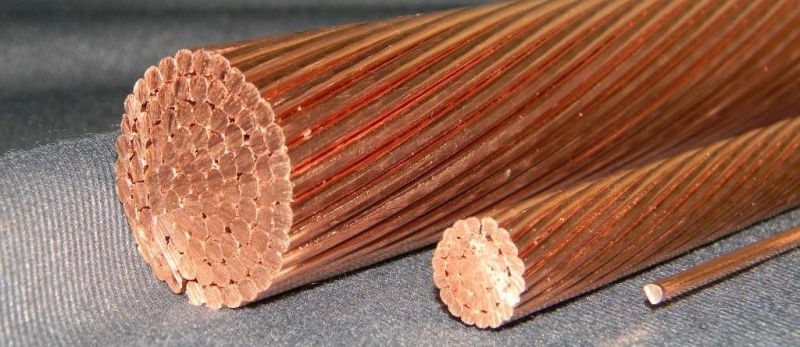

Bare Copper Conductor Copper Building Wire Bare Copper Cable
APPLICATIONS
Solid and stranded bare copper are suitable for overhead transmission and distribution applications.
Stranded conductor of greater flexibility are suitable for uninsulated hook up, jumpers, and grounds in electrical construction. Soft Drawn copper is unilay construction.
SPECIFICATIONS
• B-1 Hard-Drawn Copper Wire.
• B-2 Medium-Hard Copper Wire.
• B-3 Soft or Annealed Copper Wire.
• B-8 Concentric-Lay-Stranded Hard, Medium-Hard or Soft Copper Conductor.
• B-33 Tinned Conductors.
• B-787 19 Wire Combination Unilay-Stranded Soft copper wire.
CONSTRUCTION

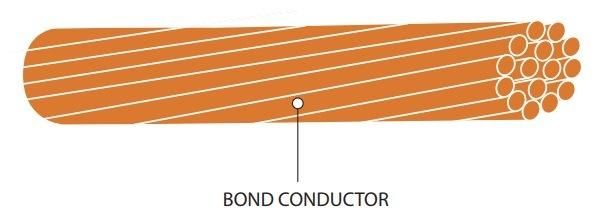

CONSTRUCTION Conductor: Soft, annealed solid or stranded bare copper.
Options: Various tempers such as medium or hard drawn upon request Tinned available in select AWG sizes.
AWG Size | Number of Strands | Individual Wire Diameter (in.) | Net Weight (KG/KM) |
14 | Solid | 0.064 | 19 |
10 | Solid | 0.102 | 46 |
8 | Solid | 0.129 | 73 |
6 | Solid | 0.162 | 104 |
4 | Solid | 0.202 | 188 |
14 | 7 | 0.071 | 21 |
12 | 7 | 0.089 | 30 |
10 | 7 | 0.113 | 48 |
8 | 7 | 0.142 | 76 |
6 | 7 | 0.178 | 121 |
4 | 7 | 0.225 | 192 |
3 | 7 | 0.252 | 249 |
2 | 7 | 0.283 | 305 |
1 | 19 | 0.322 | 385 |
1/0 | 19 | 0.362 | 485 |
2/0 | 19 | 0.405 | 612 |
3/0 | 19 | 0.456 | 771 |
4/0 | 19 | 0.512 | 957 |
250 | 37 | 0.558 | 1149 |

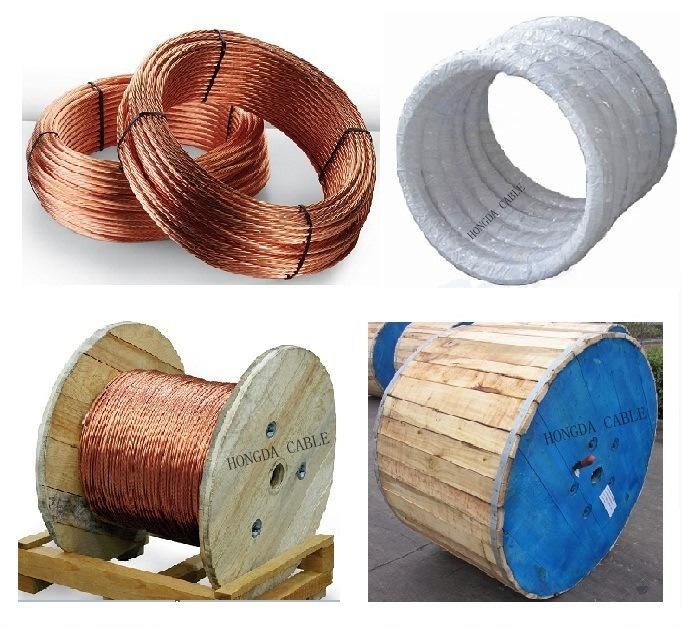

Packing & shipping
If you have another question, pls feel free to contact us below
