• Model NO.：Ntmtwoeu
• Material Shape：Round Wire
• Range of Application：Intrinsically Safe Control of User-Operated Mine
• Certification：ISO9001, CE, CCC, RoHS, VDE
• Brand：Fengda
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Basic Info.

Model NO. Ntmtwoeu Material Shape Round Wire Range of Application Intrinsically Safe Control of User-Operated Mine Certification ISO9001, CE, CCC, RoHS, VDE Brand Fengda Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 100000/Day

Product Description



Applications

These cables are used as suspended cable for intrinsically safe control of user-operated mine hoists (lifts) with telephonic connection in underground mines.

Standards

VDE 0250 Part 813

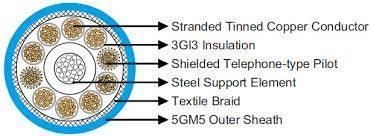

Construction

Conductors:

Flexible stranded tinned copper conductor, class 5 according to DIN VDE 0295.

Insulation:

EPR type 3GI3.

Support Element:

Central steel support element.

Anti-torsion Braid:

Textile braid.

• Outer Sheath:
• PCP rubber type 5GM5.

Dimensions and Weight

Number of Cores×Nominal Cross Section	Minimum Overall Diameter	Maximum Overall Diameter	Nominal Weight
No.×mm²	mm	mm	kg/km
8x2.5ST+2x1FM(C)	21.7	23.7	800
8x2.5ST+10x (2x1FM)C	34.0	37.5	1450
14x2.5ST+6x1FM(C)	27.0	31.0	1200
18x2.5ST+6x1FM(C)	38.0	42.0	1800
19x1.5(C)ST+6x (2x1FM)C	35.1	38.1	2145
