16mm2 Aerial Service Concentric Neutral Cable with Pilot Communication Wire

Henan Hongda Cable Co., Ltd.
  • Application：Construction, Overhead, Underground, Telecommunication
  • Voltage：Low and Medium Voltage Cable
  • Current：AC Cable
  • Insulation Material：XLPE
  • Sheath Material：PVC
  • Material Shape：Round Wire

Base Info

  • Model NO.：16mm2 solidal cable
  • Wire Core Material：99.99% Copper
  • Certification：ISO, CCC, CE, RoHS, UL
  • Model：Concentric Cable
  • Brand：Hongda
  • Armor：No
  • Conductor Material：Aluminum
  • Standard：IEC60502-1
  • Quality Guarantee：Ten Years
  • Pilot Communication Wire：4 Copper Wire
  • Insulated Color：as Your Requirement
  • Sheath Color：Black
  • Sample：Yes
  • Manufacture：Yes
  • HS：8544492100
  • Transport Package：Wooden Drum
  • Specification：16mm2 Concentric Neutral Cable
  • Trademark：Hongda
  • Origin：China, Henan
  • HS Code：8544492100
  • Production Capacity：3000km,Per Months

Description

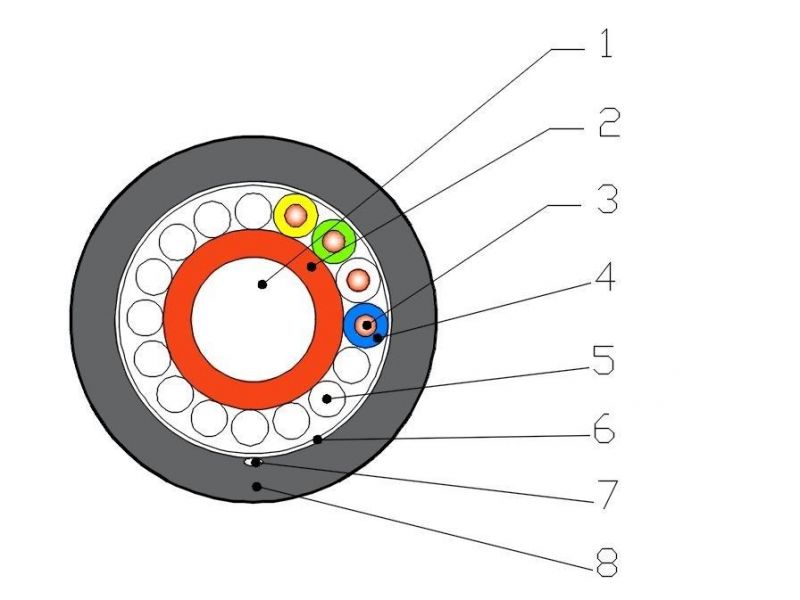

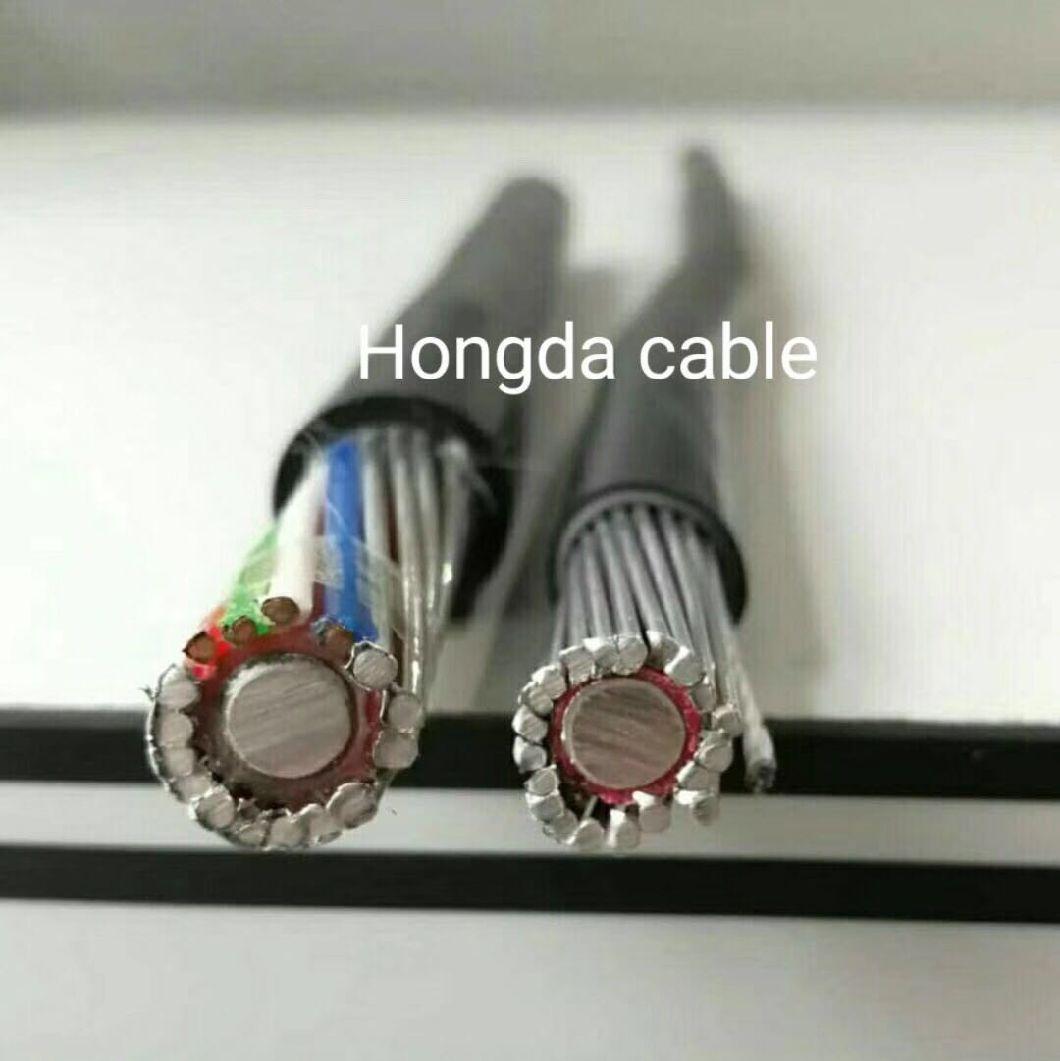

16mm2 Aerial Service Concentric Neutral Cable with Pilot Communication Wire


    1- Phase conductor: Solid aluminum / copper conductor



    2- Phase Insulation: XLPE / PVC



    3- Pilot Core Conductor: Plain annealed copper wire



    4- Pilot Core Insulation: PE (Poly Ethylene compounds)



    5- Neutral Core: Solid aluminum conductor



    6- Wraping tape



    7- Ripcord



    8- Outer sheath: PVC / PE

AIRDAC
Used for house connections. This cable can only be used for single phase supply. Cable is made to be suspended in the air. Cable is available as a Combined Neutral and Earth (CNE) and Separate Neutral and Earth (SNE) with coms wire available in Separate Neutral and Earth (SNE).
Combined Neutral and Earth (CNE) Airdac 600/1000V
Separate Neutral and Earth (SNE) Airdac 600/1000V


Separate Neutral and Earth (SNE) Airdac 600/1000V

Cable
SizeNeutral
SizeEarth
SizePilot
CoresOverall
DiameterCable
MassCurrent
RatingPhase Core
Impedancemm²mm²mm²mmmmkg/mampsohms/km10107.52 x 0.512.80.32902.341616102 x 0.514.50.4851251.47

Combined Neutral and Earth (CNE) Airdac 600/1000V

Cable
SizeEarth
SizeOverall
DiameterCable
MassCurrent
RatingPhase Core
Impedancemm²mm²mmkg/mampsohms/km448.70.121475.881010110.249862.34



16mm², AIRDAC SNE CableMechanical Properties
* Cable size: 16mm²
* Phase Conductor (No.xOD): 7x1.67mm
* Nominal Insulation Thickness: 1.0mm
* Neutral Conductor (No.xOD): 7x1.76mm
* Earth Conductor (No.xOD): 3x2.20mm
* Nominal Sheath Thickness: 1.6mm
* Approximate Cable OD: 14.5mm
* Approximate Cable Mass: 485 kg/km

Installation Data (SAG* mm)
Span 10m: 40
Span 20m: 170
Span 30m: 380
Span 40m: 670
Span 50m: 1050
Based on
UTS** :5760
MWT*** :1440

16mm2 Aerial Service Concentric Neutral Cable with Pilot Communication Wire
16mm2 Aerial Service Concentric Neutral Cable with Pilot Communication Wire




 Packaging&Delivery


  16mm2 Aerial Service Concentric Neutral Cable with Pilot Communication Wire

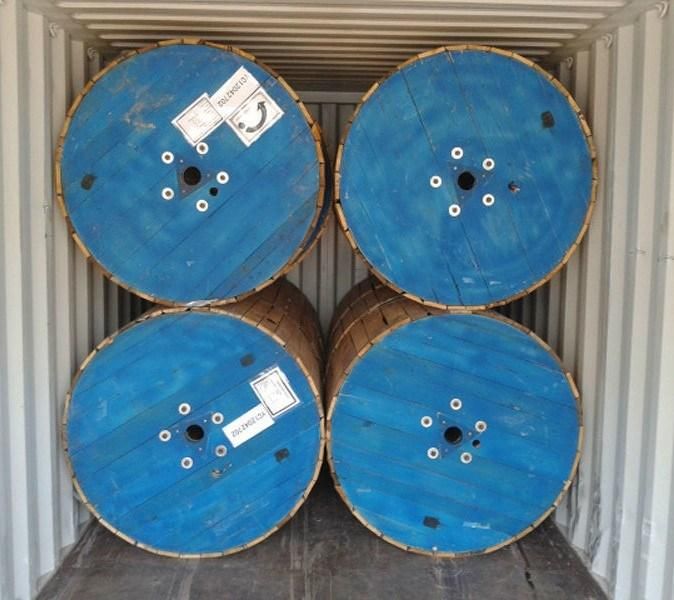

Packaging Details:Wooden drums,steel wooden drums or as your requirement
