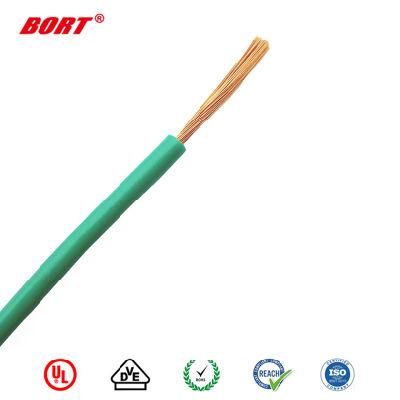

18AWG Halogen Free Hook up Wire UL1870 with Solid Single Conductor for Flexible Conduits

B&T (Zhangzhou) Cable Co., Ltd.
  • Type：Insulated
  • Conductor Type：Stranded
  • Application：for General Purpose Internal Wiring of Appliance
  • Conductor Material：Copper
  • Insulation Material：Frpe
  • Material Shape：Round Wire

Base Info

  • Model NO.：UL1870
  • Range of Application：Flame Retardant
  • Certification：ISO9001, UL, RoHS, Reach
  • Brand：B&T
  • Rated Temperature：80 C
  • Rated Voltage：30V
  • Ref.Standard：UL Subject758, UL1581, C22.2
  • Flame Rating：VW-1
  • Guage：20AWG
  • Halogen Free：Hf
  • Core：Single
  • Shield：No
  • Marking：General, OEM
  • Transport Package：610feet in Roll
  • Specification：2pin 20 AWG 2 Conductors
  • Trademark：B&T
  • Origin：Xiamen, Fujian
  • HS Code：8544492100
  • Production Capacity：300, 000km

Description

Rated Temperature80ºCConductorMaximum Resistance at 20 ºC
Ω/kmAWGNo./mmDia.
mmNom. Thick.
mmNom.Dia.
mm307/0.10.30.411.12354287/0.1270.380.411.20223267/0.160.480.411.301392411/0.160.610.411.4388.92217/0.160.760.411.5857.52026/0.160.940.411.7634.61841/0.161.180.412.0023.3
