17vatc 17patc Coaxial Cable
Hangzhou Spring Electronics Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：BC,CCS,CCA,TC,CU,CCAG
- Cover Material：PVC
- Type：RG6 Cable
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：17vatc
- Wire Core Material：Bare Copper Wire
- Certification：CE, ISO, RoHS
- Brand：OEM
- Cable Conductor：1.13mm
- Transport Package：Roll,Wooden Spool,Plastic Reel,Gift Box,Pully Box
- Trademark：FUU
- Origin：Made in China
- HS Code：8544200000
- Production Capacity：3000km,Month
Description

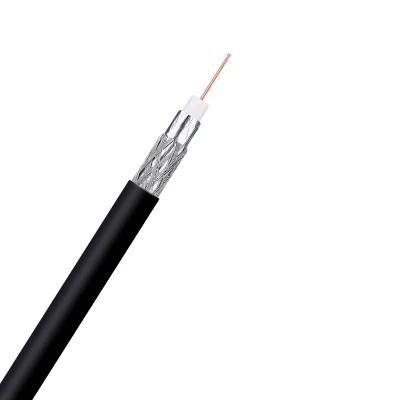

17 VATC Coaxial Cable
| Construction Parameters: | ||
| Inner Conductor | 1.13mm BC/Copper-Clad Steel | |
| Dielectric | 4.8mm Foamed PE(Gas Expanded Polyethylene) | |
| Shield 1 | 4.95mm Bonded Aluminum Polyproylene | |
| Shield 2 | Aluminum braid wire 55% coverage | |
| Jacket | 6.81±0.15mm PVC (Color can be chosed by Customer) | |
| Jacket Thickness | 0.030"/0.76mm | |
| Application | For Use in Longer CATV Run Lengths | |
| Electrical Characteristics: | ||
| Inner Conductor Resistance | The Max. at 20ºC shall be < -/km | |
| Capacitance | 52 ±3 pF/m | |
| Impedance | 75 ± 3 Ω | |
| Return loss | between 5 and 1000MHz: > 22dB | |
| Velocity of Propagation | 0.85 | |
| Sparker Test (VAC) | 4 | |
| Attenuation(20ºC): | ||
| Frequency (MHZ) | Max Attenuation(dB/100ft) | Max Attenuation (dB/100m) |
| 50 | 1.13 | 3.70 |
| 100 | 1.68 | 5.50 |
| 200 | 2.47 | 8.10 |
| 400 | 3.57 | 11.70 |
| 800 | 5.18 | 17.00 |
| 950 | 5.70 | 18.70 |
| 1350 | 6.95 | 22.80 |
| 1750 | 8.05 | 26.40 |
| 2150 | 9.09 | 29.80 |
| 3000 | 11.04 | 36.20 |
| Mechanical and Envrionmental Properties | ||
| Cable bend radius | 10 times the cable diameter | |
| Operating Temp Range | -20 ºC to 70ºC | |
| Cable diamensions | 6.81±0.15mm PVC | |
| Order Informations: | ||
| Marking | 17 VATC COAXIAL CABLE ×××M | |
| Package | 100M/Roll, 300M/Wooden Spool | |
| Delivery time | Normally 25 days after received the deposit. | |
