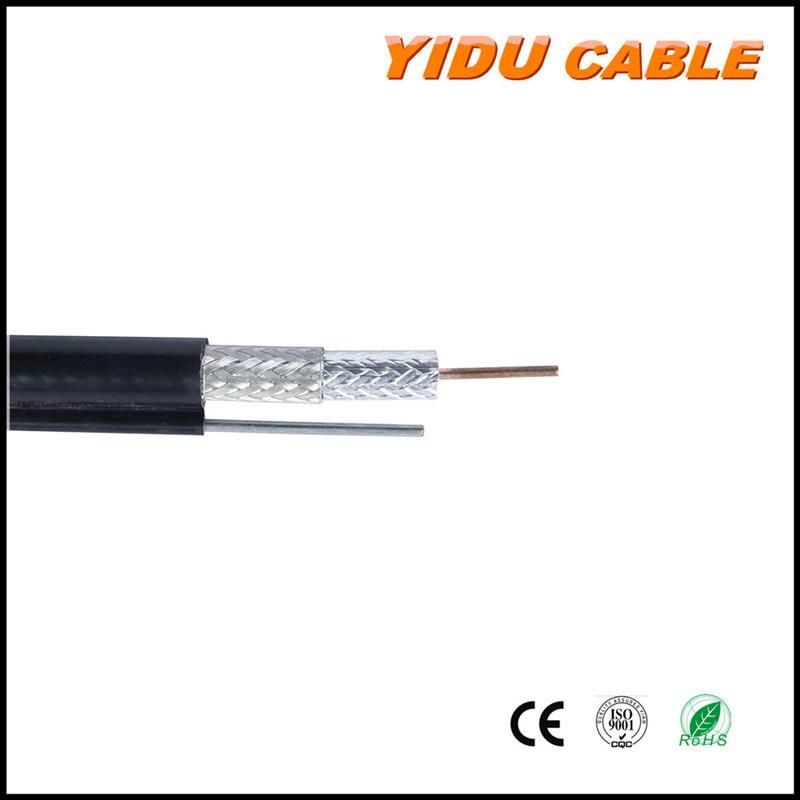

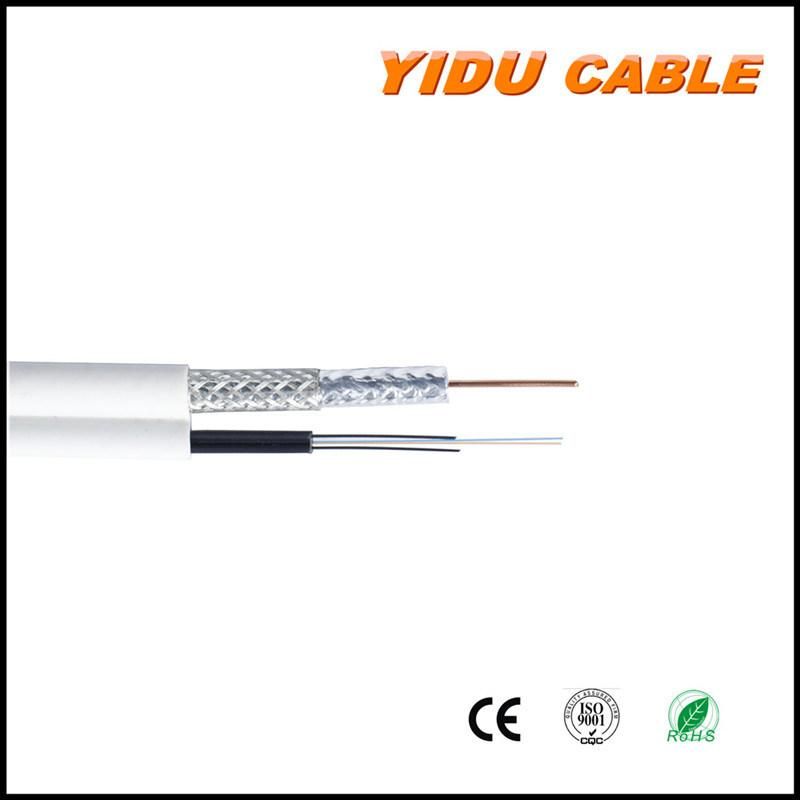

100FT CCTV BNC Video Power Cable for Security Camera Cable Video
Hangzhou Yidu Import & Export Co., Ltd.- Application：Local Communication Cable, Coaxial Cable
- Conductor Material：Copper Ciad Steel
- Cover Material：PVC
- Type：Coaxial
- Material Shape：Round Wire
- Conductor Type：Solid
Base Info
- Model NO.：rg59+2c
- Wire Core Material：Copper Ciad Steel
- Certification：CE, ISO, RoHS
- Model：Rg59 Cable
- Brand：OEM
- Inner Conductor：Copper Clad Steel
- Insuiation：Foamed PE
- Outer Condcutor：Aluminum Wires
- Jacket：PVC
- Power Cable：CCA
- Certificate：Ce,RoHS
- Transport Package：Packed by Carton,Wooden Drum,Wooden Pallet
- Specification：RG59+2c
- Trademark：OEM
- Origin：Hangzhou, China
- HS Code：8544200000
- Production Capacity：24000km,Year
Description
SpecificaitonsPhysical dimensions component Standard-shield Tri-shield Quad-shield inchs mm inchs mm inchs mm Nominal center conductor diameter 0.032 0.81 0.032 0.81 0.032 0.81 Nominal diameter over dielectric 0.144 3.66 0.144 3.66 0.14 3.66 Nominal diameter over first shield 0.151 3.84 0.151 3.84 0.151 3.84 Nominal diameter over jacket 0.24 6.1 0.24 6.1 0.265 6.73 Nominal jacket wall thickness 0.03 0.76 0.032 0.81 0.034 0.86 Nominal diameter of 0.051(single) 1.3 0.051(single) 1.3 0.051(single) 1.3 steel messenger 0.072(dual) 1.83 0.072(dual) 1.83 0.072(dual) 1.83 Electrial Characteristics Nominal impedance 75ohms Nominal Velocity of propagation 0.85 Attenuation(20ºC) Frequency(MHz) Maximum(dB/100ft) Maximum(dB/100m) 55 2.05 6.73 211 3.8 12.47 350 4.8 15.75 450 5.4 17.72 550 5.95 19.52 750 6.97 22.87 865 7.52 24.67 1000 8.12 26.64
Manufacturer Introduction
Hangzhou Yidu Import & Export Co.,Ltd is one of the leading manufacturer in the cables
and telecom accessories. We have more than 15 years experience in this line.
Our productions comply with ISO9001.Professional team,powerful factory and strict quality control give
best service to our clients and the quality guarantee in every order.
Our products have been widely installed in Telecom companies and many distributors around the world.
We export to more than 70 countries and our annual revenue is more than hundreds of million USD.
We have established a close relationship with many companies around the world and we sincerely look
forward to woking with all clients from all over the world.
OEM and ODM order highly welcome !

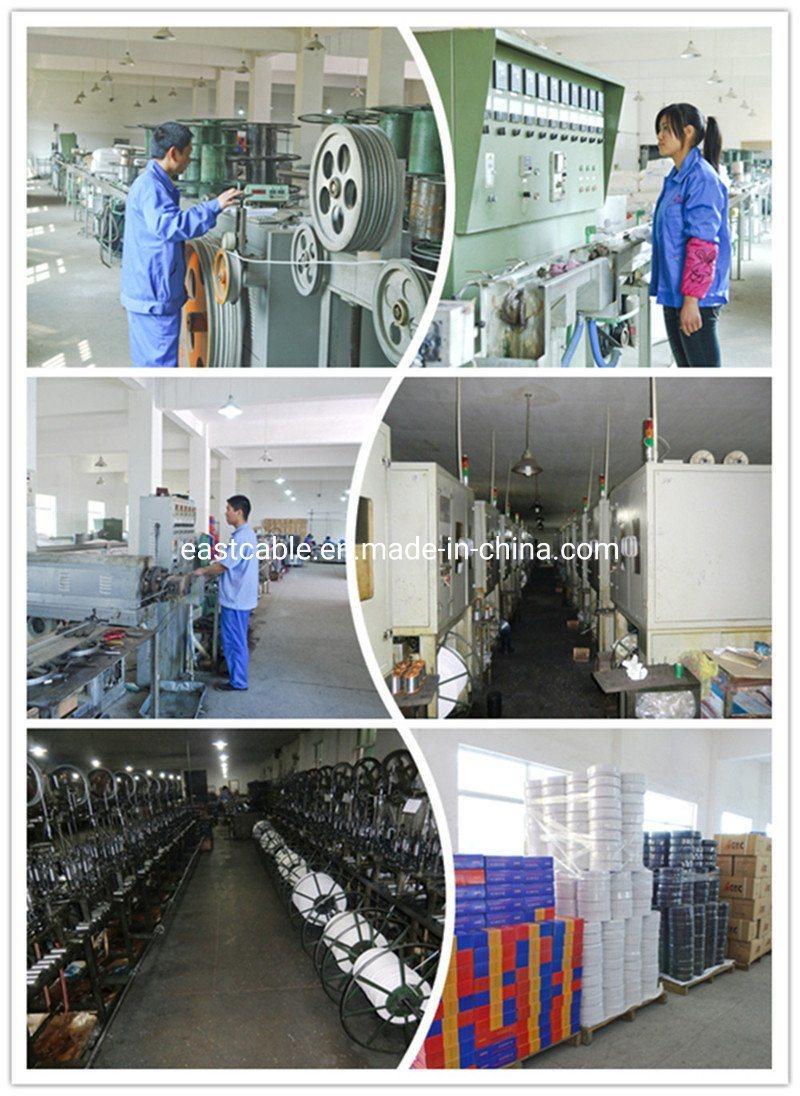

Workshop and Company Show

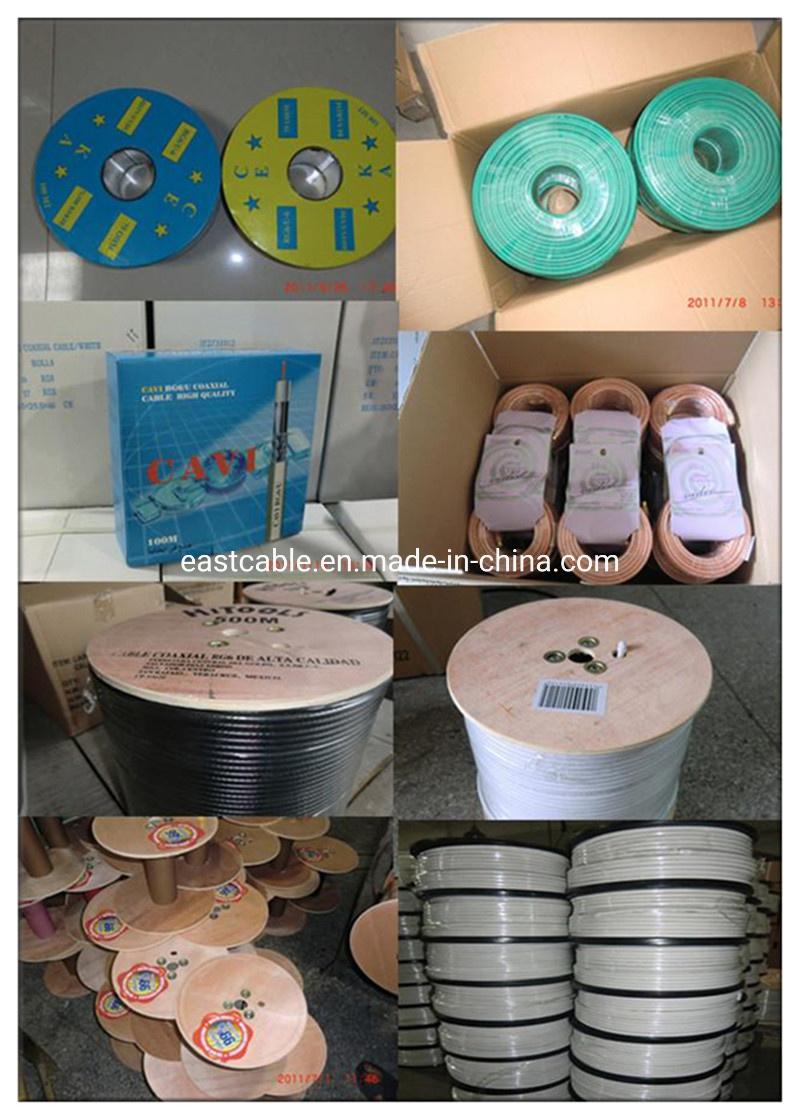

Package for cables
