• Model NO.：Nayy
• Material Shape：Round Wire
• Range of Application：Construction, Overhead, Underground, Industrial,
• Certification：CE, CCC, RoHS, VDE
• Brand：Fengda
• Color：Black Red Yellow, According to Voltage Level
• Whether It Is Environmentally Friendly：Yes
• Whether Quality Inspection：Provide Inspection Certificate
• Standard：Customized According to Specified National Standar
• OEM/ODM：Accepted
• Core：Single Core and Multicore
• Transport Package：Standard Export Packaging
• Specification：International General Specifications
• Trademark：Fengda
• Origin：Tianjin, China(Mainland)
• HS Code：8544492100
• Production Capacity：100000,Day

Basic Info.

Model NO. Nayy Material Shape Round Wire Range of Application Construction, Overhead, Underground, Industrial, Certification CE, CCC, RoHS, VDE Brand Fengda Color Black Red Yellow, According to Voltage Level Whether It Is Environmentally Friendly Yes Whether Quality Inspection Provide Inspection Certificate Standard Customized According to Specified National Standar OEM/ODM Accepted Core Single Core and Multicore Transport Package Standard Export Packaging Specification International General Specifications Trademark Fengda Origin Tianjin, China(Mainland) HS Code 8544492100 Production Capacity 100000/Day

Product Description

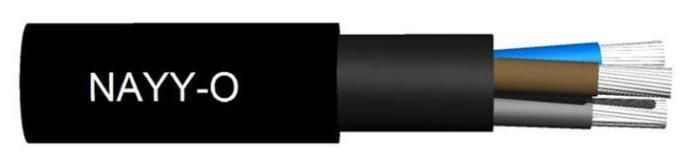

These Low Voltage (600/1000V) aluminium conductor power distribution cables are supplied as NAYY-J (with earthing) and NAYY-O (without earthing). Their Polyvinyl Chloride (PVC) insulation and oversheathing makes these cables suitable for fixed installations in buildings, in free air, for direct burial, or in contact with water.

The NAYY cable range is predominantly used within the Renewable Energy industry. Due to the absence of an armour in their construction, these cables should be installed where there is minimal risk of mechanical damage.

Construction Conductor : Aluminium Insulation : PVC DIV 4 Outer sheath : PVC DIV 5 Rated voltage (Uo/U) : 600/1000V Maximum permitted voltage : 1,2 kV Test voltage : 4kV

Installation recommendations Max. Conductor operating temperature : 70°C Operating temperature : -5°C - 70°C Minimum Bending Radius : 15 xD Should not be installed at temperatures below -5°C.

Standards applied VDE 0482-332-1-2 flame retardant IEC 60332-1 flame retardant VDE 0276-603
