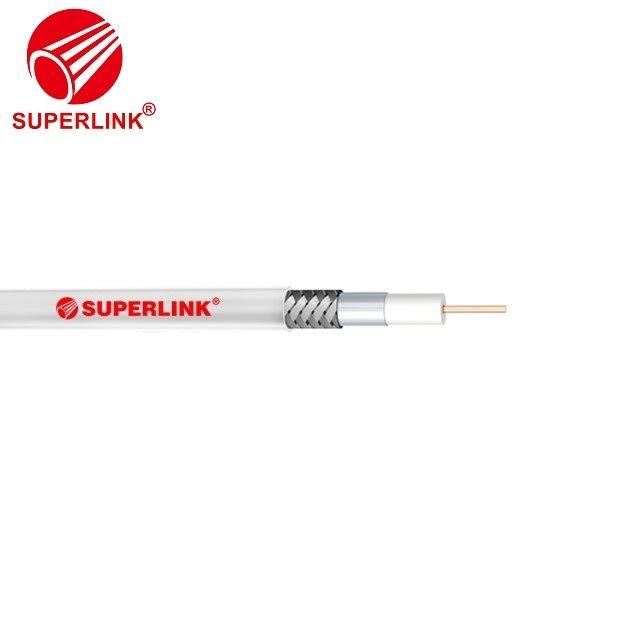

CCTV CATV Coaxial Cable 75 Ohm Rg59 RG6 Rg11
Hanyang (Hangzhou) Cable Co., Ltd.- Application：Coaxial Cable
- Conductor Material：Copper
- Cover Material：PVC
- Type：Rg59+2c
- Material Shape：Round Wire
- Conductor Type：Stranded
Base Info
- Model NO.：RG59
- Wire Core Material：Steel
- Certification：CE, ISO, RoHS, CCC, UL, VDE
- Model：MHYV-xx
- Brand：Superlink
- Specification：Rg59 Coaxial Cable
- Trademark：superlink
- Origin：Zhejiang
- Production Capacity：80000000000
Description
Basic Info.
Model NO. RG59 Wire Core Material Steel Certification CE, ISO, RoHS, CCC, UL, VDE Model MHYV-xx Brand Superlink Specification Rg59 Coaxial Cable Trademark superlink Origin Zhejiang Production Capacity 80000000000Product Description

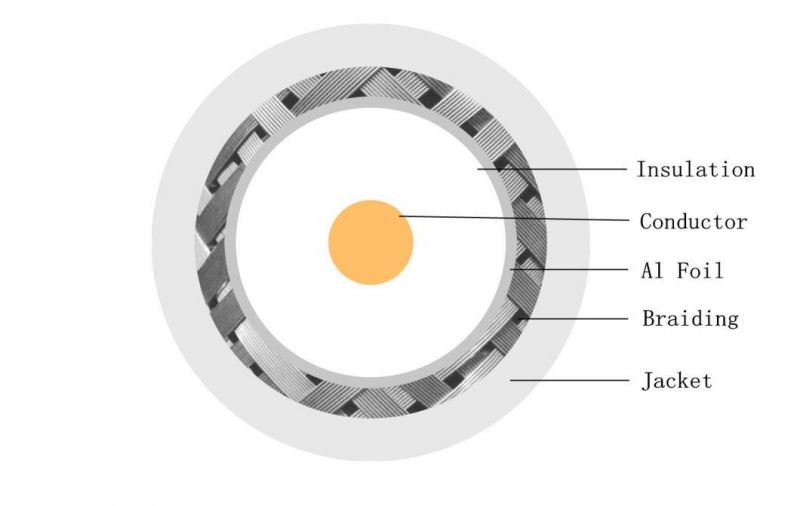

| Product Type | RG59+Messenger | RG59+Power+Messenger |
| Conductor Structure | RG59/55*0.12mm+2C*Steel wire | RG59/55*0.12mm+2C*1.00mm2+2C*Steel wire |
| Dielectric | Solid PE | Solid PE |
| Shield | Al-foil+160N/0.10BC braiding | Al-foil+160N/0.10BC braiding |
| Jacket | Flexible PVC, Black | Flexible PVC, Black |
| Dimension(mm) | 7.8*14.9 | 7.8*18 |
| Rated Voltage | 450/750V | 450/750V |
| Service Temperature | -30°C~70°C | -30°C~70°C |
