Wholesale PVC Copper Electrical Electric Cable 2 Core Rvvp Screened Shielded Wire
Shenzhen Anxun Industrial Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：Overhead, Heating, Underground
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：RVVP cable
- Material Shape：Round Wire
- Range of Application：Refractory
- Certification：ISO9001, CE, UL, CCC, RoHS, VDE
- Brand：Tuoxun
- Trademark：tuoxun
- Origin：Shenzhen
- HS Code：8501101000
- Production Capacity：5000000m,Year
Description
AWG
Stranding
Material
Norminal Trade Name
No.of Pairs
22
7x30awg
Tinned copper
0.75mm
2
Insulation
Material
Nominal Wall Thickness
HDPE Insulation
0.62mm
Color chart
Number
Color
1
White/Blue
2
White/Orange
Outer Shield Material
Type
Layer
Material
Tape
1
Aluminum
Braid
2
65% tinned copper
Outer Jacket Material
Material
Nominal Diameter
Nominal Wall Thickness
PVC jacket
8.89mm
1.35mm
Electrical Characteristics
Nominal conductor DCR:14.7Ohm/1000ft
Nominal outer shield DCR:2.95Ohm/1000ft
Nom.Capacitance conductor to conductor:11Pf/ft
Nom.Capacitance conductor to other conductor to shield:20.9 Pf/ft
Nominal Characteristic Impedance:120 Ohm
Nominal Velocity of Propagation(VP):78%
Max Recommended Current(A):2.7 Amps per conductor@25ºC
Temperature Range
Temp rating:60ºC
Operating temp range:-20ºC to 60ºC

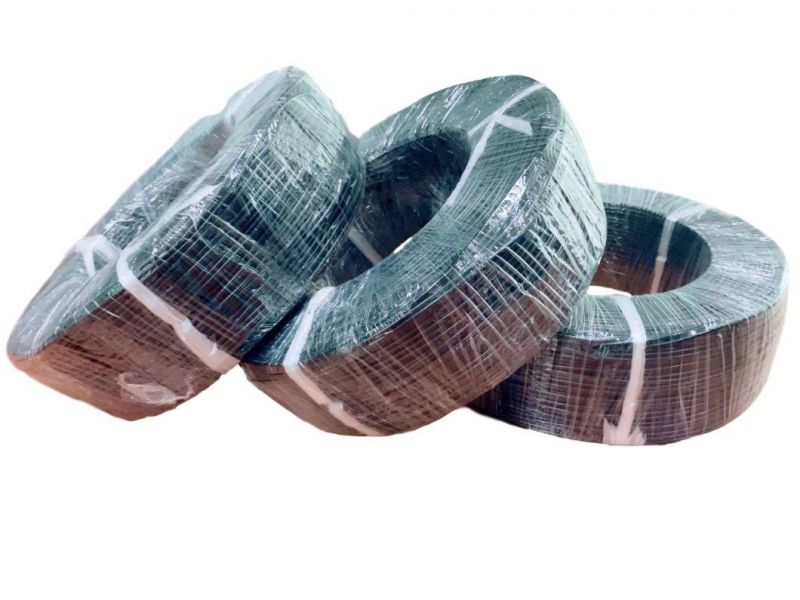

Cable Overview
