Covered Aluminum Cables 25kv
YIFANG ELECTRIC GROUP INC.- Application：Construction, Underground, Industrial, Power Station
- Voltage：Low and Medium Voltage Cable
- Current：AC Cable
- Insulation Material：XLPE
- Sheath Material：PE
- Material Shape：Round Wire
Base Info
- Model NO.：Covered Aluminum Cables 25kV
- Wire Core Material：Aluminium Conductor or aluminium Alloy
- Certification：ISO, CCC, CE, UL
- Model：Yjv32
- Brand：Yifang
- Certificate：ISO;Ce;UL;Kema

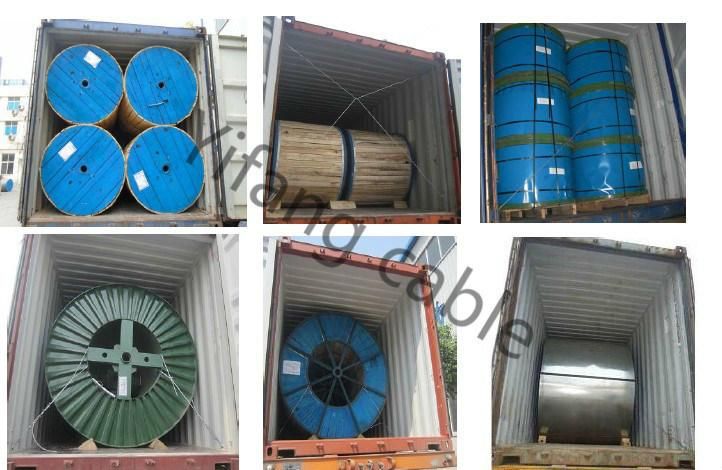

- Transport Package：Wood Packing by Sea
- Specification：1000meter per drum
- Trademark：Yifang
- Origin：China
- HS Code：8544601200
- Production Capacity：300km Per Month
Description
Basic Info.
Model NO. Covered Aluminum Cables 25kV Wire Core Material Aluminium Conductor or aluminium Alloy Certification ISO, CCC, CE, UL Model Yjv32 Brand Yifang Certificate ISO;Ce;UL;Kema Transport Package Wood Packing by Sea Specification 1000meter per drum Trademark Yifang Origin China HS Code 8544601200 Production Capacity 300km Per MonthProduct Description
The 25kV aluminum conductor insulated cable features a compact round conductor, composed of aluminum strands, blocked or not, and with a cross-linked polyethylene (XLPE) covered in black or gray color, with special characteristics to be resistant against electric tracking and UV-rays.
As XLPE is a thermoset material, the 25KV aluminum conductor insulated cable enables operation up to 90°C continuously all while delivering higher capacity when compared to the thermoplastic materials.
The main application for insulated aluminum cables is on compact overhead, primary power distribution, medium-voltage networks located in urban and wooded areas. These overhead cables are an excellent technical and economic option for companies all over the world, since they have such advantages as low manufacturing cost and ease of installation.
| Cross section | No. of wires | Conductor dia. | Overall Diameter | Minimum breaking load | Approx. weight | Max. DC-resistance at 20°C | Ampacity 90°C |
| [mm²] | [mm] | [mm] | [kgf] | [kg/km] | [Ohm/km] | [A] | |
| 35 | 7 | 7.1 | 15.7 | 464 | 235 | 0.868 | 186 |
| 50 | 7 | 8.2 | 16.8 | 663 | 305 | 0.641 | 224 |
| 70 | 19 | 9.7 | 18.3 | 928 | 370 | 0.443 | 280 |
| 95 | 19 | 11.5 | 20.1 | 1259 | 460 | 0.32 | 343 |
| 120 | 19 | 12.9 | 21.5 | 1591 | 560 | 0.253 | 397 |
| 150 | 19 | 14.2 | 22.8 | 1988 | 650 | 0.206 | 450 |
| 185 | 37 | 16.2 | 24.8 | 2452 | 770 | 0.164 | 519 |
| 240 | 37 | 18.4 | 27 | 3182 | 960 | 0.125 | 617 |
| 300 | 37 | 20.7 | 29.3 | 3977 | 1155 | 0.1 | 712 |
