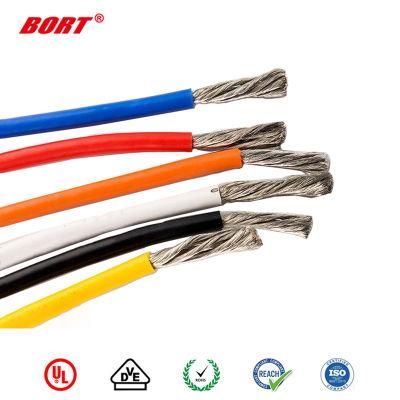

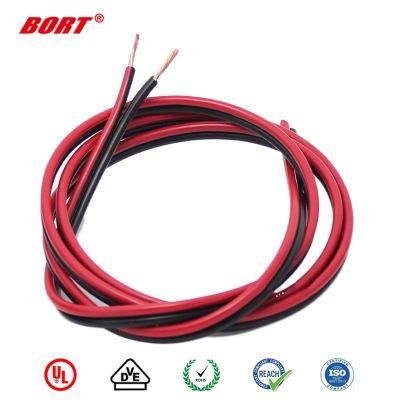

Computer Application UL1015 22AWG Wire Harness Cable Assembly Wire
B&T (Zhangzhou) Cable Co., Ltd.- Type：Insulated
- Conductor Type：Stranded
- Application：for General Purpose Internal Wiring of Appliance
- Conductor Material：Copper
- Sheath Material：PVC
- Insulation Material：PVC
Base Info
- Model NO.：UL1015
- Material Shape：Round Wire
- Range of Application：Flame Retardant
- Certification：ISO9001, CE, UL, CCC, RoHS, Reach
- Brand：B&T
- Rated Temperature：90 ºC
- Rated Voltage：1000V
- According to：UL Subject758, UL1581, C22.2
- Test：Passes UL VW-1 & CSA FT1 Vertical Flame Test
- Performance：for General Purpose Internal Wiring of Appliance
- Conductor：Stranded, Tinned or Bare Copper Conductor
- AWG/No.Ofcond：32-16AWG
- Color：Could Be Customized Color
- Products Certification：UL,cUL,RoHS, Reach
- Factory Certificate：ISO9001:2008 Standard

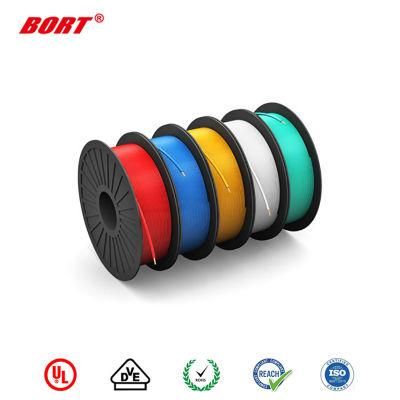

- Transport Package：610 Feet in Roll
- Specification：26-4AWG
- Trademark：B&T
- Origin：Xiamen, Fujian
- HS Code：8544492100
- Production Capacity：300, 000km
Description
AWGNO.of Cond Insulation Thick. Outside Thick. Packing mm mm mm m/r Ω/mm 30 7/0.1 0.79 1.90 610 354.33 28 7/0.127 0.79 2.00 610 223.75 26 7/0.16 0.79 2.05 610 139.76 24 11/0.16 0.79 2.20 610 88.36 22 17/0.16 0.79 2.40 610 60.16 20 21/0.178 0.79 2.55 610 38.58 18 34/0.178 0.79 2.75 610 22.98 16 26/0.254 0.79 3.10 305 15.06 14 41/0.254 0.79 3.50 305 9.65 12 65/0.254 0.79 3.95 305 6.07 10 65/0.320 0.79 5.00 305 3.73 8 55/0.45 1.20 6.50 305 2.23 26 1/0.404 0.79 2.00 610 142.79 24 1/0.511 0.79 2.10 610 89.39 22 1/0.643 0.79 2.25 610 54.30 20 1/0.813 0.79 2.40 610 33.90 18 1/1.024 0.79 2.65 610 21.40
