• Model NO.：AXQ , TXXI 1kV
• Wire Core Material：Al Conductor
• Certification：ISO, CCC, CE
• Model：Halogen Free 1 Kv Interconnection Cable
• Brand：Hongda
• Conductors：Aluminum Conductor, Round Stranded (RM)

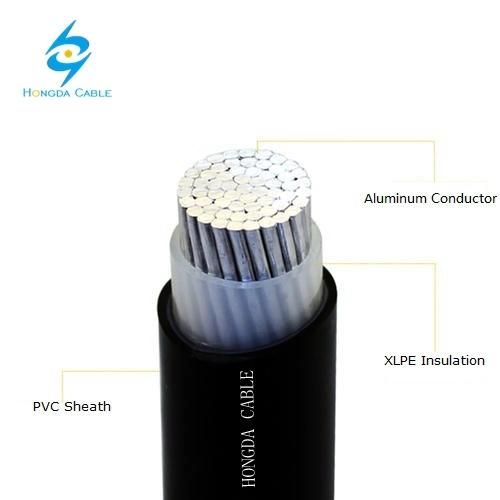

• Axq/Txxi (S1xz1-Ar)：Halogen Free, XLPE-Insulted and Hffr Sheathed Cabl
• Environmental Management System：ISO 14001
• Quality System：ISO 9001
• Outer Sheath：Halogen Free Flame Retardant
• Transport Package：500m,Drum, 1000m,Drum
• Specification：16mm2 to 400mm2
• Trademark：Hongda
• Origin：Henan, China
• HS Code：8544492100
• Production Capacity：1000km,Month

Type of conductorAluminum conductor, Circular, stranded, class 2InsulationExtruded XLPEOuter sheathHalogen free flame retardantConductor flexibilityclass 2Conductor shapeCircularRated Voltage Uo/U (Um)0.6/1 kV

Usage characteristics

Minimum operating temperature-40 °CAmbient installation temperature, range-10 - 50 °CBending factor when laying10 (xD)Maximum operating temperature90 °CU.V resistanceVery good

CONSTRUCTION DATA OF POWER CABLES / TXXP 1 KV

Number of cores and nominal cross section mm2	Aluminium figure kg/km	Overall diameter appr. mm	Weight appr. kg/km	Current carrying capacity ground A	Current carrying capacity air A
1 x 25 RM	74,0	11	174,0	106	87
1 x 35 RM	103,0	12	209,0	127	107
1 x 50 RM	147,0	14	282,0	151	131
1 x 70 RM	206,0	16	363,0	185	166
1 x 95 RM	279,0	18	520,0	222	205
1 x 120 RM	353,0	19	557,0	253	239
1 x 150 RM	441,0	21	674,0	284	273
1 x 185 RM	544,0	24	826,0	322	314
1 x 240 RM	706,0	26	1052,0	375	378
1 x 300 RM	882,0	29	1282,0	425	437
1 x 400 RM	1.200,0	32	1598,0	487	513
1 x 500 RM	1.510,0	36	2022,0	558	600
1 x 630 RM	1.900,0	40	2200,0	635	701
