• Model NO.：T-207X
• Average Splice Loss：0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf)
• Return Loss：>60dB
• Protection Sleeve Length：20mm, 40mm, 60mm
• Language：Multi-Language
• Tension Test：2.0n 200GF Standard
• Monitor：5 Inches Colorful LCD Display
• Fiber Image Magnification：X and Y Views with 220 Times
• Dimension：155mm(W) *165mm( D) * 150mm(H)
• Weight：1.75kg
• Transport Package：Export-Standard Carton Box with PE Foam Inside
• Specification：CE, SGS, CSI, ISO9000
• Trademark：Skycom , OEM
• Origin：Nanjing, China
• HS Code：8501109101
• Production Capacity：1500PCS, Month

Basic Info.

Model NO. T-207X Average Splice Loss 0.02dB(Sm), 0.01dB(mm), 0.04dB(Nzds), 0.04dB(Edf) Return Loss >60dB Protection Sleeve Length 20mm, 40mm, 60mm Language Multi-Language Tension Test 2.0n 200GF Standard Monitor 5 Inches Colorful LCD Display Fiber Image Magnification X and Y Views with 220 Times Dimension 155mm(W) *165mm( D) * 150mm(H) Weight 1.75kg Transport Package Export-Standard Carton Box with PE Foam Inside Specification CE, SGS, CSI, ISO9000 Trademark Skycom / OEM Origin Nanjing, China HS Code 8501109101 Production Capacity 1500PCS/ Month

Product Description

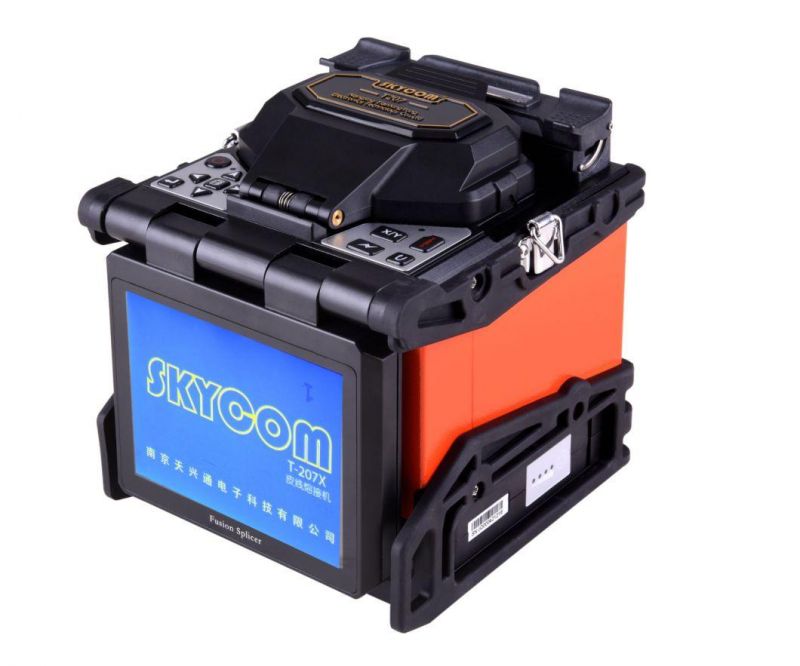

                               Core View High Fusion Splicer (Skycom T-207X)

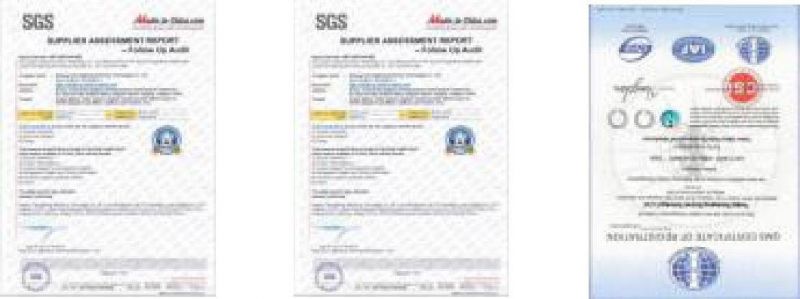

CE, SGS, ISO9001, 5 patents for utility model





Key Features

> 5 inches high resolution colorful LCD display, image can be turned according to position
> Average splice time: 8 seconds
> Average tube-heat time: 25 seconds
> Lithium battery: Rechargable and up to 200 times of continuous splice and heat after fully charged
> X or Y axis Separately views with 400 times magnification, or Simultaneously 220 times
> Cutting-edge technology for image processing
> New developed technology providing strong wind and dust resistance
> Splicing mode: Auto & Manual & Full-Auto
> USB Port
> Storing 6,000 groups of latest splice results
> New technology of fiber core alignment, enhanced accuracy
> New 3-in-1 cutting fixture for rubber-insulated wire, pigtail & bare fiber (Patented technology)
> New Multipurpose 1+N fixture (Patented technology)

* 1+N: one 3-in-1 fixture ( for rubber-insulated wire, fiber optic pigtail, bare fiber) &

optional fixtures ( for SC/LC/FC connector - T-207XF).



Specifications

Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)
Average Splice Loss	0.02dB(SM), 0.01dB(MM), 0.04dB(NZDS), 0.04dB(EDF)
Return Loss	≥60dB
Tension Test	2.0N(200gf)(Standard)
Typical splicing time	9 seconds
Typical heating time	25 seconds
Splicing Program	50 groups
Protection Sleeve Length	20mm, 40mm, 60mm
Operating Language	Chinese, English, French, Portuguese, Spanish
Operating Conditions	-10~+50°C(operation temperature),0~95% RH(humidity), 0~5000m(altitude)
Power Supply	AC adaptor: 100~240V input voltage, 50/60Hz; 12V, 5A output voltage(DC) Inner lithium battery: 11.1V, 5.2AH
Monitor	5 inches high resolution colorful LCD display
Fiber Image Magnification	X or Y axis Separately views 400 times magnification, or Simultaneously 220 times
Storage of Splice Result	6,000 groups of latest splice results
Splicing Model	Auto & Manual & Full Auto
Optical Fiber Fixture	3-in-1 cutting fixture; Multipurpose 1+N fixture (T-207XF, for SC/LC/FC connector)
Dimensions	130(W)*135(D)*130(H)mm;                 Package size: 53*32*30cm
Weight	2.11kg+0.38kg (battery weight)=2.49kg;   Package G.W.: 7.63kg
Applicable Fibers	SM, MM, NZ-DS, EDF, Pigtail, Cable (rubber-insulated wire), SC/LC/FC connector (optional function)

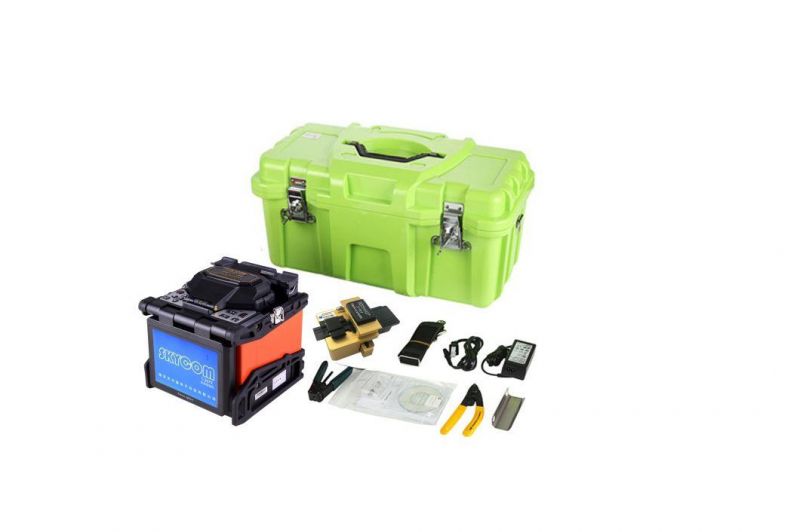

Standard Package

Machine T-207X	1
Fiber Cleaver	1
Fiber Stripper	1
Battery	1
Charger	1
Spare Electrodes	1
Cooling Tray	1
Instruction CD	1
Quick Reference Guide	1
Rubber-insulated wire strippers	1
Transit case with Carrying strap	1

*Custom-made Professional anti-shock tool kit (case) with sponge inside *Export-standard Carton Box with PE Foam inside (53*32*30cm, 7.63kg)

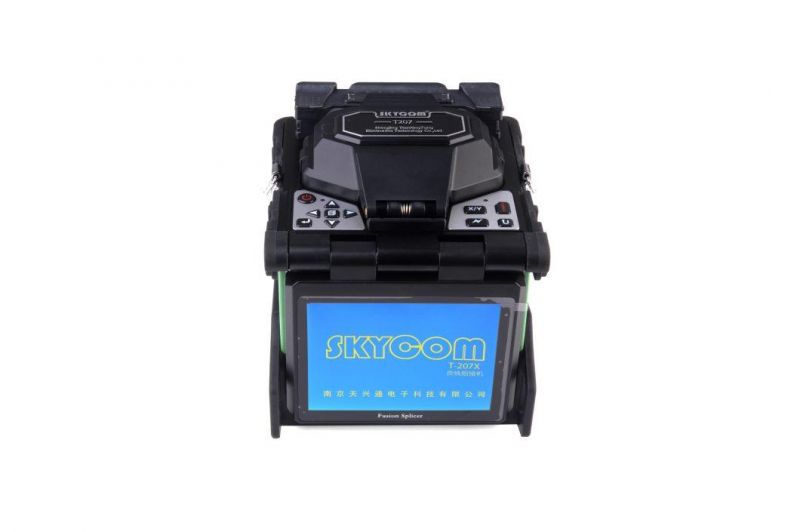

Pictures

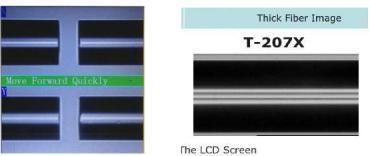

Splicing Interface 207X
